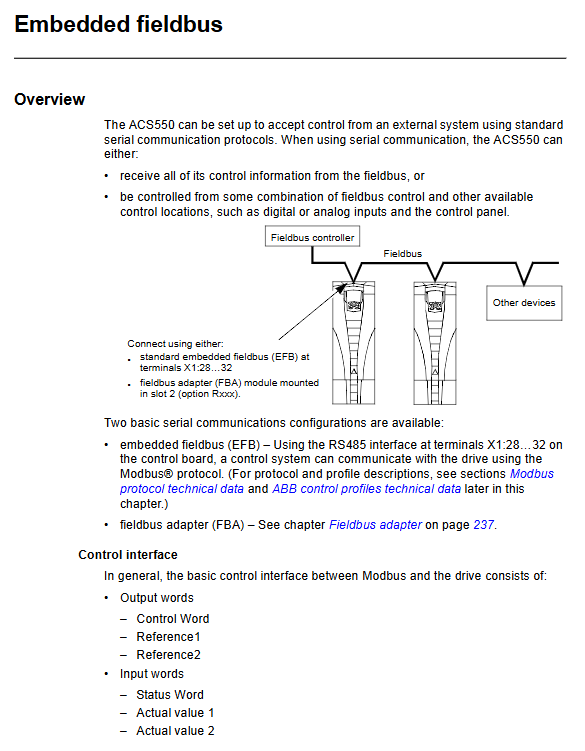

Diagnosis and maintenance of ABB ACS550 frequency converter fault codes

Maintenance and lifespan management

5.1 Cooling fan replacement

The expected lifespan of the ACS550 internal fan is approximately 6 years (R1~R4) or 3 years (IP54 internal circulating fan). When the fan noise increases or the frequency converter frequently reports "DEV OVERTEMP", it should be replaced. Fan spare parts can be ordered from ABB. Replacement steps (R1~R4):

Power off and wait for 5 minutes.

Remove the front cover.

Release the fan fixing buckle and pull out the connector.

Install a new fan (note that the airflow direction is upward).

5.2 DC bus capacitor lifespan

The lifespan of capacitors is affected by environmental temperature and operating time. It is recommended to replace it after 9 years of operation (R5/R6) or 10 years (R1~R4). The relative capacitance value (factory 100%) can be viewed through parameter 05.05 (maintenance information of IP21 panel). If it is lower than 85%, replacement should be prepared.

5.3 Control panel battery (Assistant panel only)

If using an Assistant control panel with a clock (ACS-CP-A, etc.), the battery (CR2032) has a lifespan of approximately 10 years. The depletion of the battery only affects the clock and date recording, and does not affect the drive control function.

5.4 Regular Inspection Checklist

Every 6 months: Check the tightening torque of all terminals; Clean the dust from the heat sink.

Every year: Check if the shielding layer of the control cable is intact; Run ID to verify motor parameters (optional).

Every 3-5 years: Replace the internal fan.

Long term storage (over 1 year): Capacitors need to undergo "aging treatment" (reforming), otherwise powering on may damage the capacitors. Please refer to ABB technical guidelines for specific methods.
