In the operation and maintenance of automated production lines, especially high-end CNC machine tools, the replacement of core controllers and drive system components is a high-frequency and high-risk technical task. When the SIMODRIVE 611D digital drive module used in conjunction with the SINUMERIK 840C CNC system needs to be replaced due to aging, malfunction, or performance upgrade, simply physically replacing the hardware is far from enough. The real challenge lies in how to correctly reproduce the original configuration on the new hardware, ensure precise response of the motor and shaft, and restore the original machining accuracy of the system.

This article is based on the standard installation and debugging logic of the SINUMERIK 840C system, providing a complete process for replacing 611D driver modules and readjusting axis parameters. This process is applicable to the feed axis (FDD) and spindle (MSD) modules, aiming to help on-site engineers avoid common errors and shorten downtime.

The 'golden rule' before replacement: data backup and status confirmation

Before touching any hardware, the following irreversible steps must be completed. This is the cornerstone of all professional maintenance work.

System wide data backup: Use the Valitek Streamer or PC link function on the control unit MMC to perform a complete backup of the entire hard drive data. Select the ACKUP menu in the Diagnosis/Start up area of 840C and execute "Backup system" and "Backup user data". This ensures that in the event of operational errors, the system can be restored to its current state without damage.

Key parameter file copying: In addition to overall backup, it is necessary to record or print the following key data through the Machine Data Dialogue Box (MDD). They will be directly used during reconfiguration:

Drive configuration: Record the logical drive numbers (Drive No.), module models (such as dual axis FDD module 6SN112x-1AA00-0GA0), and their physical slots on the rack for all 611D modules.

Axis/Spindle NC Data: Record MD 3840 (axis set point output), MD 2000 (first measurement system connection), MD 4600 (spindle set point output), MD 4000 (spindle measurement system connection), etc. These data define the logical channel mapping relationship between the drive and NCK.

Drive motor data: Record the drive MD 1102 (motor code number) or all manually entered motor parameters (rated current, torque constant, inductance, etc.).

Hardware status diagnosis: Before power failure, record the final status of the faulty module through the driver service display interface in the diagnostic area. Checking information such as "Drive status" and "CRC error" can help determine whether it is a module failure or a communication/external circuit issue.

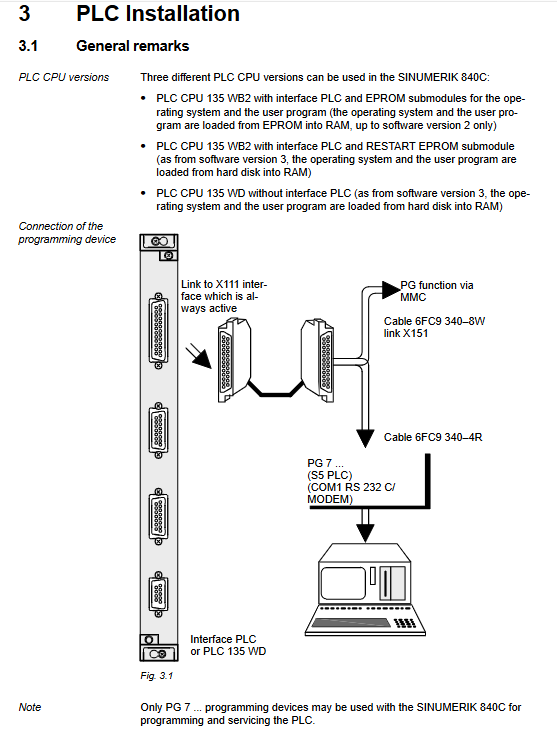

Hardware Replacement and Basic Configuration: Rebuilding Communication Links

After completing the data backup, follow the standard power-off and disassembly procedures. The model and firmware version of the new module should be consistent with the original module. If they are not consistent, additional attention should be paid to software compatibility. After the hardware installation is completed, software level refactoring begins.

Configure a new driver module:

Start 840C and enter the diagnostic/startup/machine data/drive MD area.

In the "Driver Configuration" screen, you will see a list representing rack slots. Find the corresponding slot for the hardware you just replaced.

Using the 'Select Module' soft key, select the specific order number of your newly installed 611D module from the drop-down list (e.g. 6SN112x-1AA01-0GA0). Be sure to ensure that the selection here is completely consistent with the hardware, otherwise it may cause internal parameterization errors.

After confirmation, use the 'Accept Configuration+NCK PO' soft key. This operation will update the hardware startup file, initialize the driver bus, and establish communication between NCK and the driver module.

Restore motor parameters:

After the initialization of the drive bus, there is no specific motor data for the new drive module. Enter the diagnostic/startup/machine data/drive MD/axis (FDD) or spindle (MSD) motor/power unit data menu.

If using Siemens standard motors, use the 'Select Motor' soft key to find and select the correct motor model from the list.

After selection, the system will automatically load all standard motor parameters corresponding to the model (such as MD 1103 rated current, MD 1400 rated speed, MD 1407 speed loop P gain, etc.) into the drive. This process will overwrite the online data in the current drive and is the quickest way to restore motor characteristics.

For non Siemens motors, you need to manually input equivalent circuit diagram parameters one by one based on the motor nameplate data. After input, use the 'Calculate Controller Data' soft key to have the system automatically calculate the optimized current loop and speed loop parameters.
