The ABB ACS550 series universal frequency converter is widely used in industrial speed control applications such as fans, water pumps, and conveyor belts due to its flexible I/O configuration, built-in PID control, pump/fan specific macro (PFC), and powerful fieldbus support. However, the on-site environment is complex, and incorrect wiring, mismatched motor parameters, and improper load conditions can all cause the frequency converter to trip or operate abnormally. This article is based on the ACS550 technical manual, extracting the most common fault phenomena encountered on site, the causes of alarm codes, and systematic troubleshooting steps, aiming to provide a practical fault diagnosis guide for automation engineers and maintenance personnel.

Whether you are debugging an ACS550 for the first time or facing a sudden "OVERRENT" alarm that requires urgent handling, this article will help you quickly locate the problem and safely restore system operation.

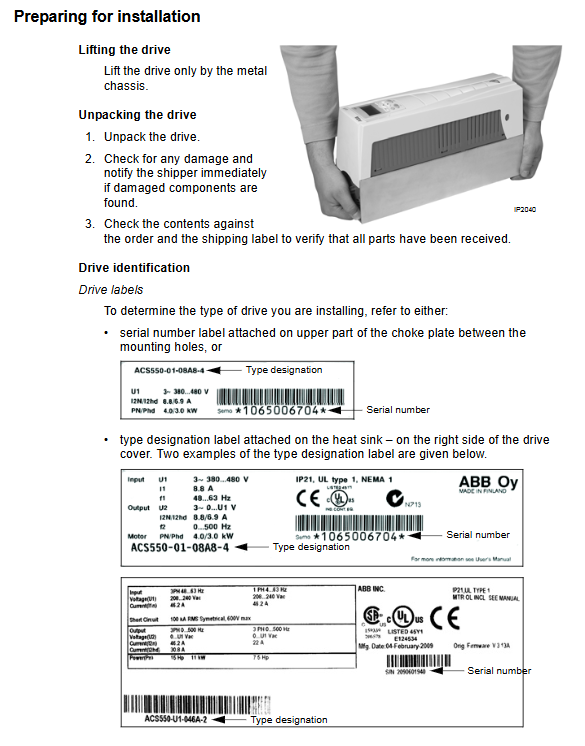

Hidden danger elimination during installation and wiring stage

Before powering on, wiring errors are often the primary cause of damage or inability to operate the frequency converter. ACS550 has two types of enclosures, IP21/UL 1 and IP54/UL 12. The wiring methods are divided into cable entry and conduit entry, but the following commonalities must be strictly followed.

1.1 Main circuit wiring

Power input: three-phase 208~240 V driver connected to L1/R, L2/S, L3/T; When supplying single-phase power (limited to 208-240 V series only), connect to L1/L and L2/N, and the output current needs to be reduced by 50%. The 380~480 V and 500~600 V series only support three-phase input.

Motor output: U2, V2, W2 must be connected to the U, V, W of the motor. Incorrect phase sequence can cause the motor to reverse. Do not connect the power cord to the output terminal, otherwise the frequency converter will be immediately damaged.

Grounding: The PE terminal must be reliably grounded with a wire diameter not less than the power line. In IT systems (ungrounded or high impedance grounded) and corner grounded TN systems, the internal EMC filter must be disconnected (by removing or replacing screws EM1, EM3, F1, F2), otherwise the filter capacitor will connect the system to ground capacitor, causing danger or damage to the frequency converter.

Braking resistor: R1 and R2 frames have built-in braking choppers, and the braking resistor is connected to BRK+and BRK -. The R3~R6 framework does not have a built-in chopper and requires an external brake unit to be connected to the UDC+and UDC - terminals. It is strictly prohibited to connect the braking resistor between other terminals, otherwise it may cause a fire.

1.2 Control terminal wiring

The control terminal X1 of ACS550 provides:

Analog inputs: AI1 (default frequency set to 0~10 V or 0~20 mA, selected through J1 jumper), AI2 (default not used). Both AI1 and AI2 can be configured as voltage or current, and the minimum/maximum values and filtering time can be set through parameter settings.

Digital inputs: DI1~DI6, default DI1=start/stop, DI2=forward/reverse, DI3/DI4=multi-stage speed selection, DI5=acceleration/deceleration ramp selection. The function can be redefined through parameters such as E01~E03. The common end DCOM can be set to SINK (NPN) or SOURCE (PNP) mode through internal jumpers.

Analog output: AO1 (default output frequency 0-20 mA), AO2 (default output current 0-20 mA), can be configured as other signals.

Relay output: RO1~RO3, default RO1=Ready, RO2=Running, RO3=Fault (-1). Action conditions can be modified through parameters.

Common wiring errors:

The simulated input signal did not use shielded twisted pair cables, resulting in frequency fluctuations or AI LOSS alarms.

When using a 24V external power supply for digital input,+24V was not connected to DCOM (SINK mode) or PLC (SOURCE mode), resulting in invalid input.

The EMC filter screw was not disconnected in the IT system, and after power on, the inverter casing had voltage to ground, even damaging the rectifier bridge.

Parameter setting and motor recognition before startup

2.1 Motor nameplate data input (Group 99)

Before starting ACS550, the following parameters must be set according to the motor nameplate (values must be exactly consistent with the nameplate):

Typical values for parameter description

9905 motor rated voltage 400 V (400 V series)

The rated current of 9906 motor refers to the nameplate, with a range of 0.2~2.0 × I2hd

9907 motor rated frequency 50 Hz or 60 Hz

9908 motor rated speed, such as 1460 rpm

The rated power unit of 9909 motor is kW or hp (depending on the region)

9904 motor control mode 1=VECTOR: SPEED (vector speed, recommended)

2=VECTOR: TORQ (Vector Torque)

3=SCALAR: FREQ (scalar frequency, used for multiple motors or testing)

Special note: If 9908 is set to 1500 rpm and the nameplate is set to 1460 rpm, it will result in incorrect speed display and ineffective slip compensation.

2.2 ID Run (motor self-learning)

For vector control mode (9904=1 or 2), it is recommended to perform ID Run (9910=1) to achieve optimal zero speed torque and speed accuracy. When running the ID, the motor will accelerate to about 50-80% of the rated speed (in the forward direction), and the load must be disconnected first to ensure safety. If the load cannot be rotated, OFF/IDMANG (9910=0) can be selected, and the frequency converter will perform zero speed magnetization (10-15 seconds) during the first start-up without rotating the motor.
