Allen Bradley 2711P series PanelView Plus human-machine interface terminal

Complete guide for on-site maintenance and troubleshooting of Rockwell Automation PanelView Plus 2711P series human-machine interface

In the field of industrial automation, Rockwell Automation's PanelView Plus series human-machine interface (HMI) has become a key operating terminal for numerous production lines and process control systems due to its robust design, flexible communication options, and powerful support from FactoryTalk View Machine Edition software. Covering multiple sizes such as 400, 600, 700, 1000, 1250, and 1500, PanelView Plus (2711P series) supports touch, keyboard, or keyboard+touch input, and offers standard and Windows CE. NET versions (PanelView Plus CE). This article is aimed at on-site engineers. Based on the official user manual, it provides an in-depth analysis of the hardware installation, power wiring, modular component replacement, communication configuration, startup fault diagnosis, and firmware upgrade methods for this series of terminals, helping you quickly restore system operation in case of equipment aging, failure, or upgrade.

Product Family Overview and Key Selection Identification

The PanelView Plus 2711P series covers two major sub series: PanelView Plus (Standard Edition) and PanelView Plus CE. The core difference between the two lies in the content of the internal CompactFlash: the standard version comes pre installed with the FactoryTalk View ME runtime environment; The CE version includes the Windows CE. NET operating system, IE browser, ActiveX support, and the ability to run third-party C++applications.

Model coding rules (taking 2711P xxx as an example):

Input type: K=keyboard, T=touch, B=keyboard+touch

Display size: 4=3.5 inches (400 series), 6=5.5 inches, 7=6.5 inches, 10=10.4 inches, 12=12.1 inches, 15=15 inches

Display type: C=color, M=grayscale

Communication: 5=RS-232+USB; 20=Ethernet+RS-232+USB+communication module interface; 4=Ethernet+RS-232+2×USB

Power supply: A=AC, D=DC

Memory identification: 1=64MB, 2=128MB, 3=256MB, 6=128MB CE, 7=256MB CE

Key selection reminder: If you need to run custom C++programs on site or utilize remote desktop, FTP server, and other functions of Windows CE, you must select the CE logic module (such as 2711P-RP6x/RP7x). If only running the FactoryTalk View ME application, the standard version is sufficient.

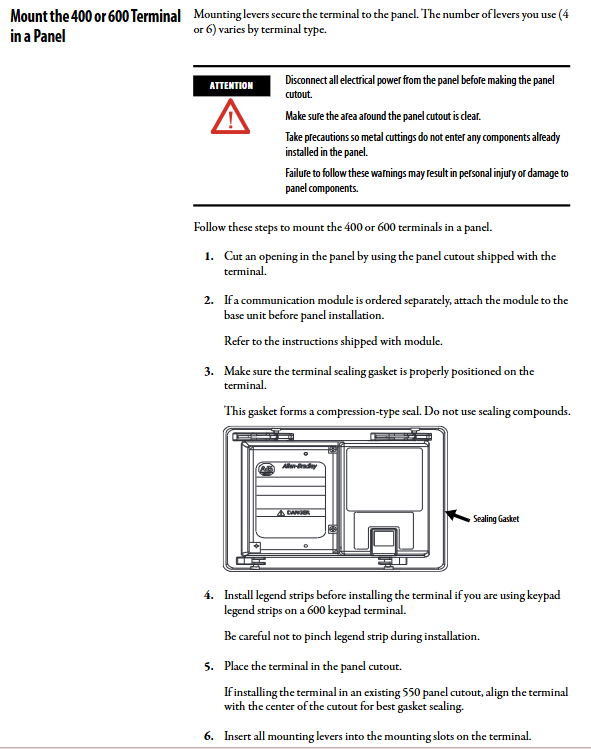

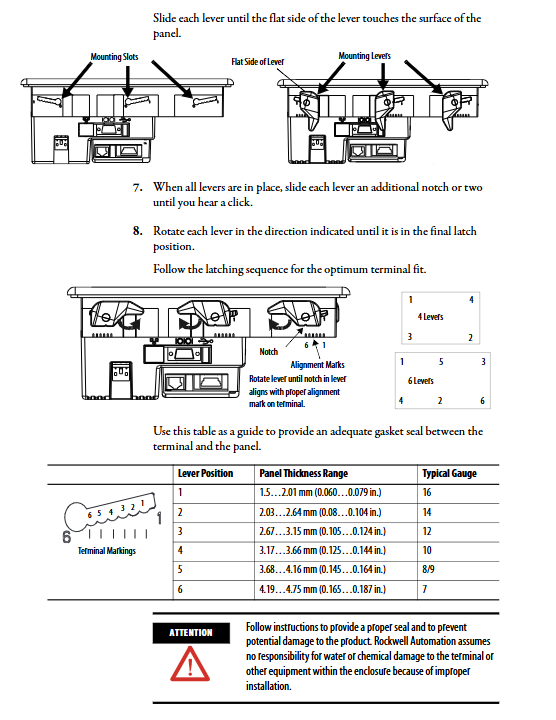

Mechanical installation and environmental requirements

2.1 Hole size and gap

The installation hole sizes of different models vary significantly, so it is necessary to use the accompanying hole template. The following are common model dimensions (in millimeters):

Model height and width

400 keyboard/keyboard+touch 123 156

600 touch 123 156

600 keyboard/keyboard+touch 142 241

700 touch 154 220

700 keyboard/keyboard+touch 167 264

1000 keyboard/keyboard+touch 224 375

1000 touch 224 305

1250/1500 Touch 257/305 338/391

Requirements for heat dissipation gap:

Top: At least 51 mm (2 in.)

Bottom: 400/600 at least 102 mm (4 in.), 700-1500 at least 51 mm

Side: At least 25 mm (102 mm required for inserting memory card or wiring)

Back: 700-1500 at least 25 mm; no requirement for 400/600

2.2 Installation in Hazardous Areas (Class I, Division 2/Zone 2)

When terminal labeling is applicable to hazardous locations, it is necessary to comply with:

The ambient temperature does not exceed 55 ° C (temperature code T4).

The peripheral devices of USB ports must meet non flammable circuit parameters: Vmax ≥ VOC (5.25V), Imax ≥ Isc (1.68A), Ci+Ccable ≤ Ca (Ca is 10 μ F or 3.5 μ H, depending on the group).

It is strictly prohibited to plug or unplug communication cables or USB devices while they are live, as this may result in arcing and explosion.

2.3 Outdoor High Brightness Display Screen (1250 High Brightness Type, 2711P-RDT12H)

Direct sunlight can accelerate the aging of plastic parts and LCD attenuation. It is recommended to install anti glare protective film (2711P-RGT12) and sunshade (2711P-RVT12).

Built in temperature sensor: When the temperature inside the cabinet exceeds 55 ° C, the backlight automatically reduces intensity to protect the display screen.

Avoid installing terminals on cabinets facing south (or north in the southern hemisphere) or west to reduce solar heat load.

Mandatory requirements for power wiring and grounding

3.1 DC power supply wiring

Voltage range: 18-30V DC (400/600), 18-32V DC (700-1500)

Power consumption: 400/600 maximum 25W; 700-1500 maximum 70W (typical 39W)

Terminal torque: 0.45-0.56 N · m (400/600); 0.56 N · m (700-1500 power terminal)

Grounding: The DC power supply must be connected to the functional grounding (Earth/Ground) terminal. This terminal is connected to the internal DC circuit for noise suppression and CE compliance. Grounding wire specifications: 14-12 AWG (400/600), 14-10 AWG (700-1500), torque 1.13-1.36 N · m.

Danger warning: If two DC power sources (V1 and V2) are used for redundancy, the controller will automatically select the higher voltage power supply. The two power sources must be grounded together, otherwise it may cause damage to the equipment due to the grounding loop. The C terminal is interconnected internally and cannot be connected to ground of different potentials.

3.2 AC power wiring

Voltage range: 85-264V AC, 47-63 Hz

Power: 400/600 maximum 60VA; 700-1500 maximum 160VA (typical 65VA)

Protective Grounding (PE): It must be connected to the PE terminal of the AC power terminal block, with a wire of 14-12 AWG.

Functional Grounding (FE): For 700-1500 AC models, the GND terminal on the back of the display module needs to be connected to the cabinet ground bus, with a wire of 14-10 AWG and a torque of 1.13-1.36 N · m.

3.3 Terminal block removal and installation

400/600: Use a small flathead screwdriver to pry open the terminal block lock buckle. When installing, insert the bottom first, and then push in the top to tighten it.

700-1500: Loosen the two fixing screws and remove the terminal block; Align and insert during installation, and tighten the screws.

Configuration mode and communication settings

4.1 Enter configuration mode

In a normally running application, the Goto Configuration Mode button must be added to the FactoryTalk View Studio screen in advance in order to switch from running mode to configuration mode. If this button is not available, you can force the configuration mode by pressing the touch screen or F1 key (keyboard type) when a white square appears during the terminal startup process (bottom corner).

The main menu of configuration mode includes:

Load Application MER file)

Run Application

Application Settings (only view device shortcuts)

Terminal Settings

4.2 Communication Driver Configuration (RSLinx Enterprise)

Enter in sequence: Terminal Settings > Networks and Communications > RSLinx Enterprise Communications。 The following parameters can be edited:

Key parameter range of the agreement

DH+Jumper ID, Station Number (0-77 octal), Baud Rate (57.6k/115.2k/230.4k)

DH-485 Station Number (0-31), Baud Rate (9600/19200), Max Station Number

ControlNet Device ID (1-99)

DeviceNet MacID (0-63), Baud Rate (125k/250k/500k)

Serial DF1 Device (PLC_CO/SLC_CO, etc.), Baud Rate (110-115200), Parity, Stop Bits, Ack Timeout

After modification, the terminal must be restarted to take effect.

4.3 Ethernet Configuration

IP address: DHCP or static. If DHCP fails, the system will automatically allocate an address of 169.254. x.x, and communication will not be possible at this time.

Device name: 1-15 characters, can only start with a letter, can contain letters, numbers, and hyphens.

Name servers: primary/secondary DNS, primary/secondary WINS.

Attention: After upgrading the firmware of the terminal, the communication settings will be cleared and must be reconfigured.

4.4 Startup Options (Automatically Run Applications)

In Terminal Settings>Startup Options>FactoryTalk View ME Station Startup:

Go to Configuration Mode: Start to enter the configuration interface (debugging or maintenance mode)

Run Current Application: Automatically runs the loaded application and can choose whether to delete log files or replace RSLinx communication configuration.

For PanelView Plus CE terminals, the startup behavior can also be controlled by adding shortcuts to the Windows startup folder ( Storage Card Windows Startup) and adding parameters/r (run) and/d (delete logs).

Component Replacement and Upgrade Guide

5.1 Applicable Component List

PanelView Plus 700-1500 modular design, replaceable on site:

Logic module (2711P RPx, including memory and CompactFlash)

Communication module (DH-485/DH+/ControlNet/DeviceNet, 2711P RNx)

Display module (2711P RDx)

Backlight (CCFL, 2711P-RLxC)

Battery (2711P-RY2032)

Panel border (2711P RBx)

Button label strip (2711P RFKx)

Attention: 400/600 batteries are non replaceable and should only be removed by professionals at the end of the product's lifespan.

5.2 Compatibility between Logic Modules and CompactFlash

The internal CompactFlash series must match the logic module series. For example:

The logic module series G/H must use 2711P-RWx series H/J CF cards.

When upgrading firmware, if the standard version CF card is installed into the CE logic module, an error message will be generated during startup and prompt for shutdown and replacement.

Replacement steps:

Turn off the power and place the terminal display face down on the anti-static workbench.

Loosen the six screws of the logic module and carefully remove the module.

If RAM (SODIMM) needs to be replaced, remove the metal clip and insert the new module at a 45 ° angle to press it in.

Replace internal CF card: Release the fixed pressure plate, remove the old card, insert the new card (pay attention to the direction of the notch), and reset the pressure plate.

Align the logic module with the two connectors of the display module, press down evenly, and tighten the screws to 0.58 N · m.

5.3 Battery Replacement (700-1500)

When the battery voltage is below 2.75V, it needs to be replaced. Located on the logic module circuit board. After removing the logic module, lift up the battery side and remove it, then install a new battery (with the positive pole facing up). Battery model CR2032, Rockwell order number 2711P-RY2032.

Warning: Improper replacement of lithium batteries may cause explosions. Only operate in non hazardous areas, dispose of waste batteries according to local regulations.

5.4 Backlight replacement (700-1500)

Backlight type: CCFL (cold cathode fluorescent lamp), containing mercury, needs to be disposed of according to environmental requirements. The number of backlights varies for different models:

700:1 root (Series A/B uses 2711P-RL7C, Series C uses 2711P-RL7C2)

1000:1 (Series A uses 2711P-RL10C, Series B/C uses 2711P-RL10C2)

1250:2 (Series A/B) or 1 (Series C)

1500:2 pieces (Series B)

Replacement steps:

Remove the panel frame and LCD display screen fixing screws.

Unplug the LCD connector and backlight connector.

Press the buckle or remove the fixing screw to remove the old backlight.

Insert a new backlight, reconnect all cables, and secure the LCD and bezel.

Fault diagnosis and interpretation of LED indicator lights

6.1 Front panel dual color LED

COMM (green): Communication activity. Flashing indicates data transmission and reception.

Fault (red): Hardware malfunction indication.

During the startup process, if FAULT stays on or flashes a specific number of times, it should be judged according to the following table:

FAULT status COMM status Possible causes Handling measures

Flashing out. Last firmware download failed. Use the Firmware Upgrade Wizard to upgrade the firmware again

Flashing EBC bootloader lost and firmware needs to be re upgraded

Always on/off Windows CE firmware is damaged, upgrade firmware again

Constant flashing display module fatal hardware failure replacement display module (700-1500) or whole machine (400/600)

6.2 Startup Error Codes and Countermeasures

At startup, the screen will display an error number and text, commonly seen as follows:

Error number message handling

1. Reset RAM Test Failure; If it continues, replace the entire machine at 400/600; Reinstall SODIMM or replace logic module for 700-1500

24 CRC Check to reload firmware; If ineffective, replace the internal CF card

30 Watchdog test failure. Reload firmware; 400/600 replacement of the entire machine; 700-1500 replace logic module

31 Stuck Key Check if any keys are stuck; Reset; If it persists, replace the display module

31.5 Stuck Touch checks if the touch screen is pressed; Reset; If it persists, replace the display module

32 Battery failure: Replace the battery; If it persists, replace the logic module

40 EXE Check system firmware is missing or damaged → reload firmware; If ineffective, replace the internal CF card

6.3 Startup Information Message (Non Error)

The messages displayed during the startup process (such as Video Initialize, RAM Test, Registry Search, Battery Test) belong to the normal self-test steps. If one of them is stuck for a long time, it indicates a corresponding hardware or firmware problem.

6.4 Extended self-test (700-1500)

In configuration mode, enter Terminal Settings>Startup Options>Startup Tests and choose to run the following tests:

RAM testing

backlight test

Touch screen test

Keyboard Test

Serial port testing (requires the use of loopback connectors)

Real time clock testing

After enabling Extended Diagnostics, the number of repetitions can be set and automatically executed each time, helping to locate intermittent faults.

Firmware upgrade method

7.1 Use firmware upgrade card (CompactFlash)

Run the Firmware Upgrade Wizard on a PC (located in FactoryTalk View Studio or firmware upgrade kit).

Select 'Create firmware upgrade card', specify the target CF card drive letter and required firmware version.

Insert the generated CF card into the external card slot of the terminal.

After the terminal is powered on, it automatically detects the upgrade file and confirms by pressing Upgrade.

Wait for the upgrade to complete (about a few minutes), and the terminal prompts to remove the CF card before automatically restarting.

Attention: After upgrading, communication settings will be cleared and IP addresses need to be reconfigured.

7.2 Upgrading through Network (Ethernet)

Ensure that the PC and terminal are on the same subnet, or browse to the terminal through RSLinx Enterprise.

Run the Firmware Upgrade Wizard and select "Upgrade firmware on terminal" → "Network connection".

Browse to the target terminal (or enter the IP address), select the firmware source path and version.

Click Finish to start downloading, the process takes about 5-15 minutes.

After completion, the terminal will automatically reset and the touch screen needs to be recalibrated.

7.3 CE Operating System Upgrade

The operating system image (SYSTEM. BIN) of PanelView Plus CE can be upgraded in two ways:

External CF card: Copy SYSTEM. BIN to the root directory of the CF card, insert it into the external card slot of the terminal, and power it on again to automatically update.

LocalOSUpdate command: Copy SYSTEM. BIN to CF card and execute it on the terminal command line LocalOSUpdate "Storage card2NewOS.BIN"。

After upgrading the OS, it is necessary to reload PanelView Plus CE components (such as IE, ActiveSync, PDF reader, etc.), which can be completed by connecting through ActiveSync or running the installation program on an external CF card.

Safe Mode and Recovery

When the terminal fails to start properly due to incorrect registry settings or malicious applications, Safe Mode can be used to enter the minimal system.

Operation steps:

Find two small holes on the right side of the logic module and mark them as "default" and "reset".

First press the default switch (using a non-conductive needle), then press the reset switch.

The system immediately restarts and enters safe mode. At this moment:

Ignore persistent registry and use default registry.

Do not load any shortcuts in the Windows Startup folder.

The touch screen may be recalibrated.

Custom key mapping is ignored.

In safe mode, problematic applications can be fixed or deleted, and registry settings can be restored. After a normal restart, the system returns to normal.

Maintenance and Cleaning

Screen cleaning: Disconnect the power, use a soft cloth dipped in mild soapy water or 70% isopropanol to gently wipe, and then wipe dry with a cloth moistened with water. Do not use abrasives or solvents.

Anti glare protective film: It is recommended to use the 2711P-RGxx series protective film for easy cleaning and extended screen life.

Battery and backlight disposal: Mercury containing backlights and lithium batteries need to be classified and recycled according to local environmental regulations.

Frequently Asked Questions Quick Reference Table

Possible causes and solutions for the phenomenon

After powering on, there is no display on the screen, all indicator lights are off, and the power supply is not connected or there is a power failure. Check the DC/AC input voltage; Check the power cord; Replace the power module

The display screen is dim or flickering, and the backlight is aging or the temperature is too high, causing automatic dimming. Check the ambient temperature; Adjust backlight intensity; Replace backlight (700-1500)

Touch screen unresponsive, uncalibrated, or damaged. Enter configuration mode to calibrate touch screen; If ineffective, replace the display module

Keyboard keys are invalid, multi key lock is enabled or key hardware faults are detected. Multi Key Lockout is checked in Keypad settings; Test with USB keyboard, if normal, replace the display module

The application cannot start automatically. The startup option is not configured as Run Current Application; In CF card MER file missing or damaged check startup options; Reload the application; Check Storage Card Windows Startup Shortcut (CE)

Ethernet communication failure due to IP address conflict or DHCP failure; Check if the IP address starts with 169 when the network cable is damaged; Use the ping command; Replace the crossover or straight line

Frequent restarts of the terminal result in unstable power supply voltage; Insufficient memory leads to software crash and power measurement; View system event logs; Increase program memory allocation (CE)
