In the fields of industrial automation and distributed measurement and control, National Instruments' Compact FieldPoint system is widely used in remote monitoring, data acquisition, and equipment control due to its robust modular design and powerful real-time processing capabilities. The cFP-2200/2210/2220 intelligent real-time controller is the core of the system, supporting Ethernet, serial communication, and LabVIEW Real Time environment. This article is aimed at on-site engineers and provides a detailed explanation of the hardware installation, power and grounding, network configuration, DIP switch function, fault diagnosis, and advanced maintenance techniques for the cFP-22xx series (including cFP-2200, cFP-2210, and cFP-2220), helping you quickly deploy and troubleshoot in harsh industrial environments.

Open Box Must Read: Hardware and Installation Preparation

The cFP-22xx controller must be used in conjunction with the Compact FieldPoint backplane (cFP-BP-4 or cFP-BP-8). The following materials need to be prepared before installation:

CFP-22xx controller body

Corresponding backboards and I/O modules

Connector block or cable

Ethernet cable (CAT-5 or higher, recommended shielded twisted pair)

Power supply: 11-30 VDC, recommended NEC Class 2 power supply

14 AWG grounding wire (with # 8 ring terminal)

Phillips screwdriver No.2 (with a minimum length of 64mm)

Important safety reminder: cFP-22xx is suitable for Class I, Division 2, Groups A-D, T4, and Zone 2 hazardous environments (ATEX Ex nL IIC T4). If installed in a hazardous area, the following special conditions must be followed:

The protective grounding (PE) terminal of the backplane must be connected to the system safety ground using a 14 AWG wire.

For Zone 2 applications, the entire Compact FieldPoint system must be installed in an enclosure with an IP54 or higher protection level.

An overvoltage protection device should be installed between the power supply and the COM terminal to prevent transient overvoltages exceeding 42 V.

Do not plug or unplug power cords, connector blocks, or I/O modules without power off.

Backboard installation method and heat dissipation requirements

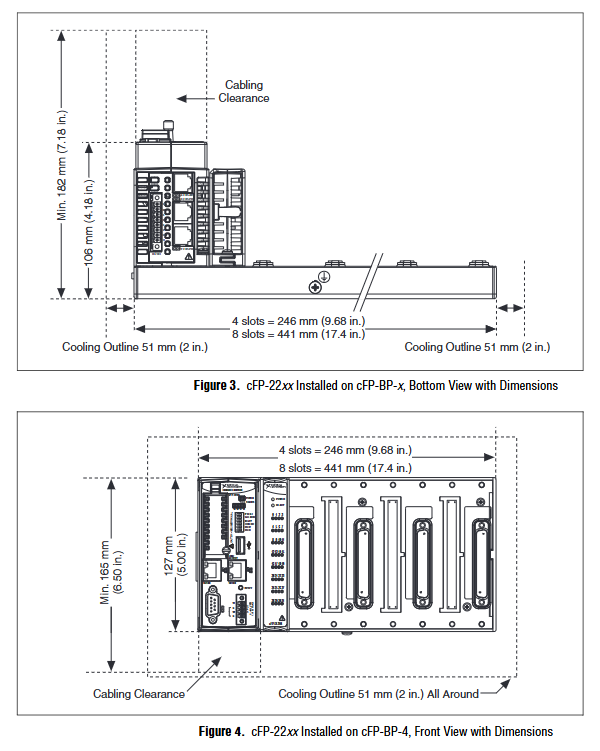

The cFP-BP-4/8 backplane supports three installation methods: DIN rail, panel mounting (horizontal/vertical), and 19 inch standard rack mounting. To meet the wide temperature range (-40 ℃ to 70 ℃) operation, the following spacing must be strictly followed:

Leave at least 51 mm (2 in) of air circulation space around the back panel.

Leave at least 51 mm above the controller and at least 38 mm below it.

The installation direction must ensure that the heat dissipation holes of the I/O module are located at the top and bottom (i.e. vertical installation), and horizontal or inverted installation is prohibited.

DIN rail installation (recommended for cFP-BP-4 only):

Use the accompanying 8-32 × 5/16 inch countersunk screws to secure the rail buckle to the back of the backplate (screw length must not exceed 5/16 in).

Insert the upper edge of the DIN rail into the deeper opening of the buckle, and press down to compress the spring until it locks.

Connect the PE terminal of the backplane to a safe location.

Panel installation:

The horizontal panel installation kit (NI 778616-01) is fixed on both sides of the back panel; The vertical kit (NI 778688-01) is fixed on top and bottom.

Special 8-32 × 5/16 inch screws provided in the kit must be used, with depth and thread matching the backplate.

Measurement of dimensions after installation: cFP-BP-4 has a width of approximately 260 mm and a height of 102 mm after horizontal installation.

Rack installation:

Use the NI 778615-01 rack mounting bracket and secure it to the back of the backplate using the fastening screws on the bracket.

# 10-32 nuts are pre installed on the bracket, and an 8-inch DIN rail can be added (for installing power sources such as PS-5).

The tightening torque should reach 1.1 N · m (10 lbf · in).

Mechanical locking of controller and I/O module

Before installing the controller, be sure to confirm that the backplane is not powered on and the I/O module is not installed.

Turn the NI logo of the controller upwards and align the edge of the backplane with the card edge connector of the backplane.

Push evenly until fully seated.

Use a Phillips screwdriver with a long rod to alternately tighten the two tight screws, with a torque of 1.1 N · m. This torque is crucial for ensuring vibration resistance.

The installation steps for the I/O module and connector block are the same: align, push in, and tighten to 1.1 N · m. The right socket corresponding to each I/O module is used to install connector blocks (such as cFP-CB-x). Do not plug or unplug connector blocks while they are live.

Power wiring and dual power redundancy design

CFP-22xx provides two power input terminal pairs: V1/C and V2/C. The controller automatically draws power from the higher voltage source, while the other source can serve as a redundant backup. When the two voltages differ by 0.1-0.6 V, the controller may randomly select one of them.
