Emerson ControlWave Micro Hybrid Controller

Emerson ControlWave Micro: A Hybrid Controller Reshaping the Boundaries of Industrial Control

In the rapidly developing field of industrial automation today, the boundary between process control and remote monitoring is becoming increasingly blurred. Traditional programmable logic controllers (PLCs) are known for their high-speed logic processing capabilities, while remote terminal units (RTUs) have natural advantages in wide area network communication and data acquisition in harsh environments. ControlWave launched by Emerson ®  Micro is a revolutionary product that conforms to this trend. As a highly programmable hybrid controller, it successfully integrates the flexible logic control capability of PLC with the robustness and communication capability of RTU, providing an excellent solution for energy, water, and process industries. This article will provide an in-depth analysis of the design philosophy, hardware architecture, software ecosystem, and application characteristics of ControlWave Micro based on the latest product technology documentation.

Core positioning and design philosophy: a paradigm of hybrid architecture

The core positioning of ControlWave Micro is to address the needs of the most demanding process factories and remote SCADA system environments. Its design philosophy revolves around low power consumption, scalability, and modularity. This is not just a hardware device, but also an intelligent platform that can evolve with the growth of business needs.

As a hybrid controller, ControlWave Micro does not simply stack two functions, but achieves deep integration on the underlying architecture. It not only has the high-speed response capability of PLC in discrete control, but also retains the strengths of RTU in remote communication, data integrity, and extreme environmental adaptability. This design makes it an ideal choice for unmanned and remote monitoring scenarios such as oil and gas transportation and distributed water treatment. Its compact appearance not only saves valuable control cabinet space, but also ensures long-term stable operation under extreme conditions due to its sturdy industrial design.

Physical Architecture and Modular Design: Born for Flexibility

The physical structure of ControlWave Micro adopts a high-strength aluminum shell, which not only ensures the lightweight of the device, but also provides excellent electromagnetic shielding and corrosion resistance. On the infrastructure level, the system offers three, four, and eight slot options for base units, and supports expansion through docking stations.

Modular expansion capability

The base unit consists of a power module, a CPU module, and an I/O slot. The CPU and power module occupy the first two slots, while the remaining slots are reserved for users to configure I/O or communication modules according to their actual needs. This modular design greatly enhances the flexibility of the system. For example, for a small metering station, a four slot base is sufficient to meet the requirements; For complex pumping stations or processing plants, the I/O capacity can be expanded to a maximum of 14 modules by adding expansion bases (providing two, four, and eight slot options). In addition, Emerson has innovatively introduced Distributed I/O Systems (DIOS), which connect remote I/O racks through Ethernet, further breaking through the limitations of physical space and achieving true distributed control.

Processing core: perfect balance between performance and power consumption

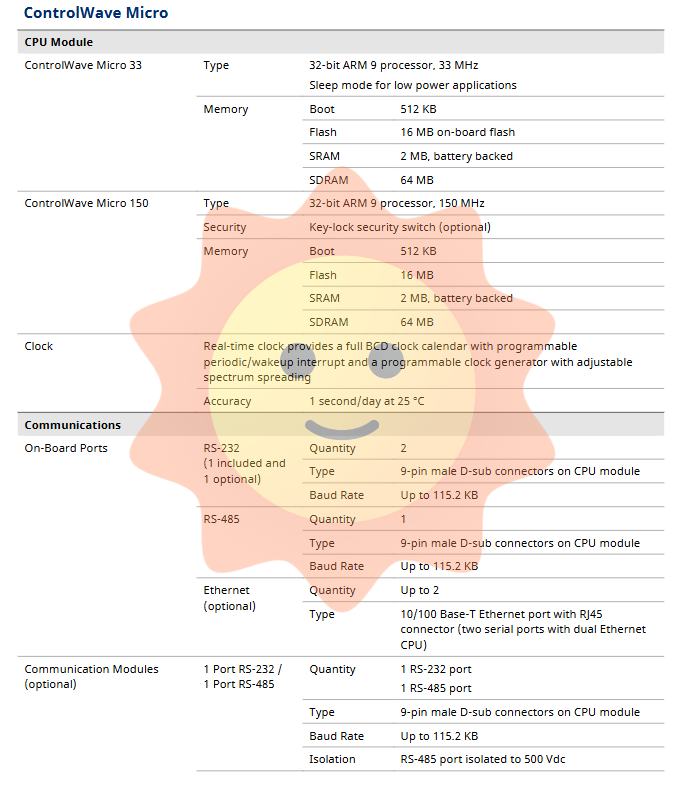

The processor is the "brain" of the controller, and ControlWave Micro offers two CPU options to balance computing performance and energy efficiency:

33 MHz CPU module: designed specifically for low-power applications. This processor based on ARM 9 architecture, although seemingly conservative in terms of clock speed, integrates a sleep mode that can maintain operation at extremely low energy consumption. It is equipped with 2 MB battery backed SRAM, 64 MB SDRAM, and 16 MB flash memory, which are sufficient to handle routine data acquisition and logic control tasks. Its onboard communication resources include two RS-232 ports and one RS-485 port, meeting basic serial communication requirements.

150 MHz CPU module: designed for complex applications that require stronger processing power. Consistent with the 33 MHz version in terms of memory configuration, but providing richer choices in communication interfaces. It supports configuring dual Ethernet ports (10/100 Base-T), which is crucial in modern industrial network architectures. It not only increases network bandwidth but also supports redundant links, enhancing system reliability. Meanwhile, this version retains the RS-232 and RS-485 interfaces, ensuring compatibility with traditional devices.

This "dual core" strategy enables ControlWave Micro to cover a diverse range of application scenarios, from simple remote metering points to complex on-site control stations.

Communication capability: Connecting everything, secure and worry free

In the era of the Internet of Things, the communication capability of controllers directly determines their value in SCADA systems. ControlWave Micro has demonstrated a high level of professionalism in communication interface and protocol support.

Rich physical interfaces

In addition to the serial and Ethernet ports on the CPU board, users can also install additional communication modules in the base slot. These modules include single/dual serial port extensions, and even integrated communication modules with 56 kb dial-up modems, which are particularly important for remote sites lacking broadband network coverage. Supporting both RS-232 and RS-485 serial standards means it can easily connect traditional industrial peripherals such as sensors, frequency converters, and wireless devices.

Open Protocol and Security Authentication

ControlWave Micro supports a wide range of industry standard protocols, including BSAP（Bristol Standard Asynchronous Protocol）、Modbus（RTU/ASCII/TCP）、DNP3、FOUNDATION fieldbus、HART Wait. It is worth mentioning that its support for the DNP3 protocol not only stays at the basic level, but also implements secure authentication version 5 (SAv5). In today's increasingly severe network security threats, SAv5 significantly improves the system's ability to resist external malicious attacks by authenticating device identities, which has strategic significance for the protection of critical infrastructure such as power grids and oil and gas pipelines.

In terms of Modbus support, ControlWave Micro performs extremely comprehensively, supporting master and slave modes, compatible with Gould and ENRON modes, supporting floating-point operations and user-defined instructions, which enables seamless integration into various existing automation systems.

Input/Output System: The Art of Fine Management

I/O modules are the gateway for controllers to interact with the physical world on site. The I/O system design of ControlWave Micro fully embodies the principle of "maximizing availability and minimizing cost".

Flexibility of local and remote termination

The I/O module provides two wiring methods: local termination and remote termination. Local termination allows on-site cables to be directly connected to the module's wiring terminals, making it suitable for compact installation. Remote termination is a major feature of Emerson, which allows wiring terminals to be installed remotely at the back of the cabinet or in a dedicated wiring area, connected to I/O modules through pre-set cables. This design greatly simplifies the wiring inside the cabinet, eliminates the messy "bird's nest" wiring, not only looks beautiful, but also greatly reduces maintenance difficulty and troubleshooting time.

Comprehensive signal type support

The product line covers hybrid I/O (such as integrated AI, AO, DI, DO, and high-speed counting hybrid modules), isolated digital, analog, thermocouple (TC), thermistor (RTD), and high-speed counter (HSC). Of particular note is the HART/BTI interface module, which supports the integration of HART protocol smart instruments, enabling users to obtain diagnostic data, not just process variables, thus achieving predictive maintenance.

All I/O modules are designed with 8-bit wide bus access and surge protection, in compliance with IEEE C37.90-1978 and IEC 801-5 standards, ensuring survivability in harsh electrical environments such as lightning strikes or power surges.

Software Ecology: Empowering Development and Operations

Powerful hardware requires excellent software to drive it. ControlWave Micro has a mature and open software ecosystem.

IEC 61131-3 standard programming environment

ControlWave Designer is its core programming software that fully complies with the IEC 61131-3 standard. This means that engineers can freely choose from five programming languages based on habits or task nature: Function Block Diagram (FBD), Structured Text (ST), Sequential Function Diagram (SFC), Ladder Diagram (LD), or Instruction List (IL). This multilingual support lowers the learning threshold and improves the readability and reusability of the code. The software has over 200 basic functional blocks built-in, covering everything from basic mathematical logic operations to complex PID control algorithms.

ACCOL III: The Crystal of Industry Experience

In addition to standard functional blocks, Emerson has also introduced the ACCOL III process control functional block library. This is the culmination of Emerson's over 20 years of experience in SCADA and factory control. It includes professional functions such as AGA (American Gas Association) gas and liquid flow calculation, averaging/comparing/accumulating, scheduling and sorting. These validated algorithm libraries eliminate the need for users to write complex traffic measurement programs from scratch, greatly reducing project development cycles and ensuring measurement compliance.

OpenBSI and Data Integration

OpenBSI (Open Bristol System Interface) serves as a communication middleware, providing tools for configuring networks, diagnosing communication, and viewing data. It supports serial and Ethernet communication and can seamlessly integrate with Object Server (OPC server) to push real-time data to upper level management systems (such as MES or ERP). Object Server has been optimized for low bandwidth, high latency wireless networks, ensuring data transmission stability in satellite or cellular networks.

Data reliability and security: a strong defense line

In SCADA systems, data loss is often unacceptable. ControlWave Micro has established the highest standards for data reliability through a distributed database architecture.

Distributed Historical Database

The system stores timestamp historical data in local non-volatile flash memory. Even in the event of communication interruption, the controller can still independently record data. After communication is restored, OpenBSI will automatically detect and supplement missing data, which fully complies with the API 21 standard requirements. In addition, the audit system records all major events and alarms, providing a complete "black box" function for accident tracing.

Multi layer security protection

Security is not only reflected in the DNP3 SAv5 authentication at the protocol layer, but also in the physical and operational levels. The device can be equipped with a panel key switch, providing three operation modes: operation, remote, and local. In 'run' mode, any program download or modification request will be rejected to prevent accidental operation or malicious tampering.

In terms of network security, ControlWave Micro has implemented a multi-user secure access system that supports up to 240 user accounts and protects usernames and passwords through 56 bit encryption technology. Administrators can finely allocate 64 different access permissions, from reading data to modifying configurations, achieving fine-grained permission control.

Environmental adaptability and certification: Born for harsh environments

The original design intention of ControlWave Micro is to cope with extreme environments. Its working temperature range is wide, from -40 ° C to 70 ° C, and it can also maintain a low temperature operation capability of -20 ° C when connected to a display screen. The circuit boards are coated with three proof paint, which meets the ANSI/ISA 71.04 Class G3 environmental standard and can resist chemical gas corrosion, moisture, and dust.

In terms of safety certification, the product has passed multiple international authoritative certifications:

Hazardous Area Certification: Possessing UL/CUL Class I, Division 2 certification, as well as ATEX, UKCA, TR CU certification, etc., it allows safe use in hazardous areas where flammable gases exist, such as oil and gas fields.

EMC certification: Compliant with EN 55022 and IEC 61000-4-3 standards, possessing excellent resistance to electromagnetic interference.

Environmental compliance: Compliant with RoHS 2 directive, reflecting Emerson's commitment to environmental protection.
