ABB DSDP 140B Counter Board (5716001-ACX)

ABB DSDP 140B Counter Board (5716001-ACX)

Core positioning and basic product information

The DSDP 140B counter board is an I/O module accessory designed by ABB for industrial process control systems. Its core function is to implement pulse signal input and counting functions. As a signal acquisition component of the control system, it is compatible with ABB's multi series process control systems and provides counting support for equipment positioning, flow statistics, and other scenarios. The basic information is as follows:

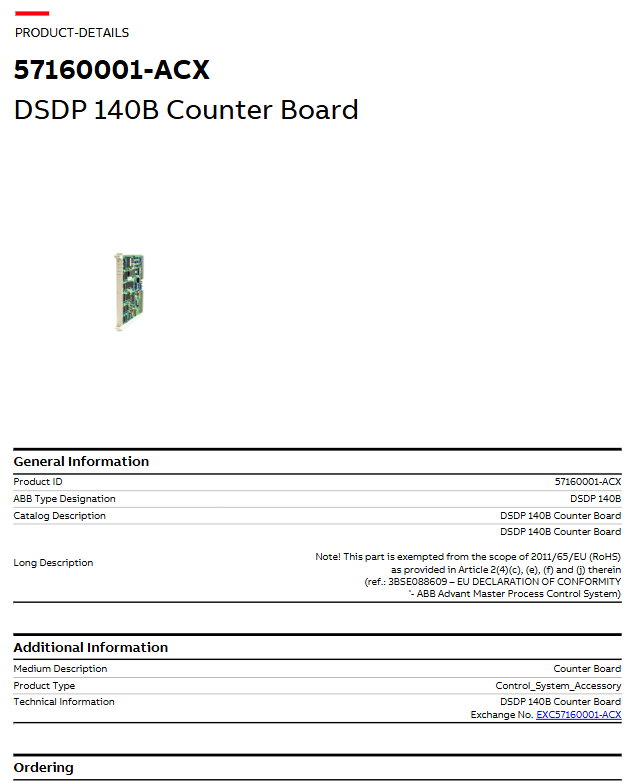

Product identification:

Product ID (Order Number): 57160001-ACX

ABB model name: DSDP 140B

Product type: Counter Board, Control_System_Sccessory

Replacement number: EXC57160001-ACX

RoHS Exemption Statement: According to Article 2 (4) (c), (e), (f), and (j) of the EU Directive 2011/65/EU, this product is exempt from RoHS restrictions and complies with the compliance declaration (refer to document 3BSE088609).

Key technologies and physical specifications

（1） Physical dimensions and weight

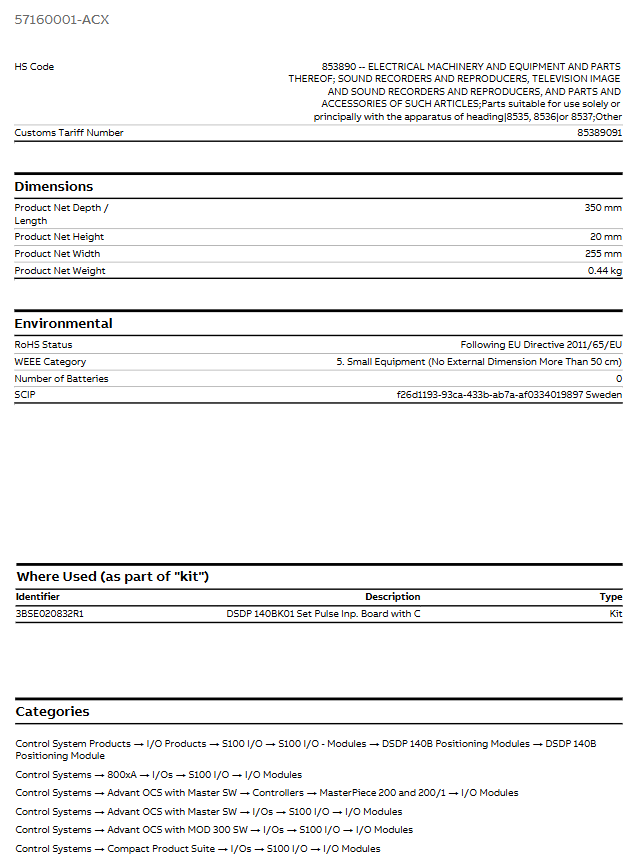

Specification category parameter value description

Product net depth/length 350 mm module length dimension along installation direction

Product net height 20mm module vertical thickness

Product net width 255 mm module horizontal width

Net weight of product 0.44 kg, net weight of module without packaging

（2） Customs and trade-related codes

HS code: 853890 (classified as "motors, electrical equipment and their parts; recording and reproducing equipment and their parts, accessories for recording and reproducing television images and sounds", specifically applicable to "parts only applicable to 8535, 8536, 8537 equipment; other")

Customs tariff number: 85389091

Environmental Compliance and Recycling Classification

Specific description of compliance category

RoHS status complies with EU Directive 2011/65/EU (note: actual exemption status, see basic information above for details)

WEEE classification category 5 "Small equipment" (all external dimensions do not exceed 50 centimeters), which needs to be recycled according to the corresponding category

Number of batteries 0 (the product does not include built-in batteries and does not require separate battery recycling)

SCIP registration information registration number: f26d1193-93ca-433b-ab7a-af0334019897, registration location: Sweden (compliant with the hazardous substance declaration requirements of the EU SCIP database)

System adaptability and application scenarios

The DSDP 140B counter board, as part of the S100 I/O series modules, is widely compatible with ABB multi generation control systems. The specific adaptation scenarios and classifications are as follows:

（1） Supporting kit

It can be used as a component of the "Pulse Input Board Kit" with the matching model 3BSE020832R1 (DSDP 140BK01 Set Pulse Input Board with C), providing a complete solution for integrating pulse input functions.

（2） Classification of adaptive control systems

Specific subsystems/product series of control systems, module categories for adaptation

Control System Products S100 I/O - Modules DSDP 140B Positioning Module

800xA series control system 800xA I/Os - S100 I/O module

Advance OCS (with Master software) MasterPiece 200/200/1 controller, S100 I/O module

Advant OCS (with MOD 300 software) S100 I/O module

Compact Product Suite S100 I/O Module

Its typical application scenario is: as a pulse signal acquisition component in the above control system, it is used for accurate counting in industrial scenarios such as equipment operation frequency statistics, material flow counting, mechanical positioning feedback, etc. (such as production line transmission equipment, metering pumps, conveyor systems, etc.).
