MControl (1TGE120011R1000) is an integrated control unit designed by ABB specifically for the MNS iS low-voltage motor control center (MCC). Its core function is to achieve motor start stop, operation status monitoring, and feeder circuit control. As the core control component of the MNS iS system, it is suitable for centralized management of low-voltage motors (such as pumps, fans, and conveyor belt motors) in the industrial field, improving the reliability and integration of motor control. The basic information is as follows:

Product identification:

Product ID (Order Number): 1TGE120011R1000

Product Type: MControl (Standard), Motor&Feeder Control Unit

System: MNS iS Low Voltage Motor Control Center (classified under the IEC Low Voltage Motor Control Center category)

Core application: Integrated motor control (such as direct start, overload protection signal interaction) and feeder circuit management, providing modular and standardized control units for MNS iS systems, simplifying the design and maintenance of motor control circuits.

Physical specifications and dimensions

Specification category parameter value description

Product net width 53 mm module horizontal width, compatible with MNS iS system standard installation spacing

The net height of the product is 125 mm, and the vertical height of the module is compatible with the installation space of MNS iS cabinet

The net depth/length of the product is 260 mm. The dimensions of the module along the installation depth direction, including the protruding part of the connector

The net weight of the product is 0.7 kg, excluding the net weight of the packaged module. The lightweight design facilitates cabinet assembly

Ordering and Origin Information

Minimum order quantity: 1 piece (single module independent ordering, supports bulk procurement according to system requirements)

Origin: Czech Republic (compliant with ABB European production standards)

Ordering precautions: It should be used as a supporting component for the MNS iS low-voltage motor control center. When ordering, it is necessary to confirm system compatibility (such as MNS iS cabinet model, motor power level) to avoid functional abnormalities caused by compatibility with non compatible systems.

Compliance and Recycling Classification

Specific description of compliance category

WEEE classified products are not within the scope of WEEE (Waste Electrical and Electronic Equipment) and do not need to be recycled according to the WEEE directive (presumably because they belong to integrated components of industrial control systems and are uniformly recycled with the overall system)

CE certification provides a declaration of conformity in accordance with the CE directive (document number: 1TGE097001), meeting the requirements of the EU Low Voltage Directive (2014/35/EU) and the Electromagnetic Compatibility (EMC) Directive (2014/30/EU)

Supporting documents and technical resources

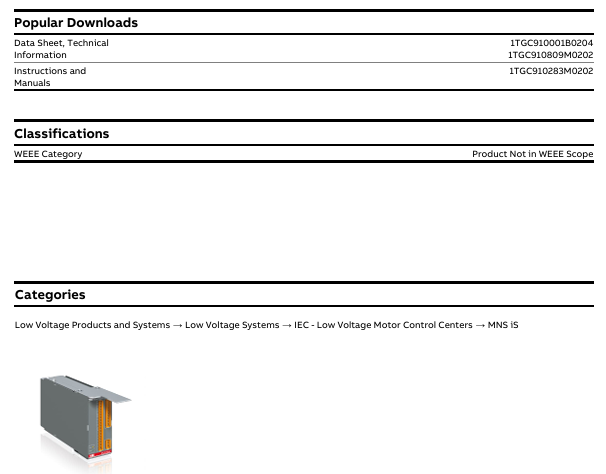

The official provides multiple technical documents to support product installation, debugging, and maintenance. The core documents are shown in the table below:

Document type Document number Core purpose

Operation and Manual 1TGC910283M0202 Product Installation Steps, Local Operation Guide, Safety Precautions

Operation and Manual 1TGC910001B0204 System Integration Instructions and Wiring Specification with MNS iS Cabinet

Operation and Manual 1TGC910809M0202 Fault Diagnosis Process and Common Problem Troubleshooting (such as Abnormal Motor Start Stop and Signal Loss)

The technical data sheet does not indicate specific numbers (classified as "Popular Downloads"). Detailed technical parameters (such as power requirements, input/output signal types, protection functions), environmental adaptability indicators are included

System adaptability and application scenarios

（1） Product classification

This product belongs to ABB's "Low Voltage Products and Systems" category, with the specific classification path being: Low Voltage Products and Systems → Low Voltage Systems → IEC - Low Voltage Motor Control Centers → MNS iS, and it is explicitly designated as an exclusive component of MNS iS Low Voltage Motor Control Centers.

（2） Typical application scenarios

Industrial motor control: adapted to MNS iS system, used for low-voltage motor (power usually ≤ 200kW) control in chemical, manufacturing, power auxiliary systems and other fields, such as start stop control and status monitoring of production line fans, circulation pumps, conveyor belt motors;

Feedline circuit management: In addition to motor control, it can also take into account the on/off control of low-voltage feeder circuits (such as lighting and small power equipment power supply circuits), achieving integrated management of "motor+feeder" and simplifying the design of distribution cabinets.
