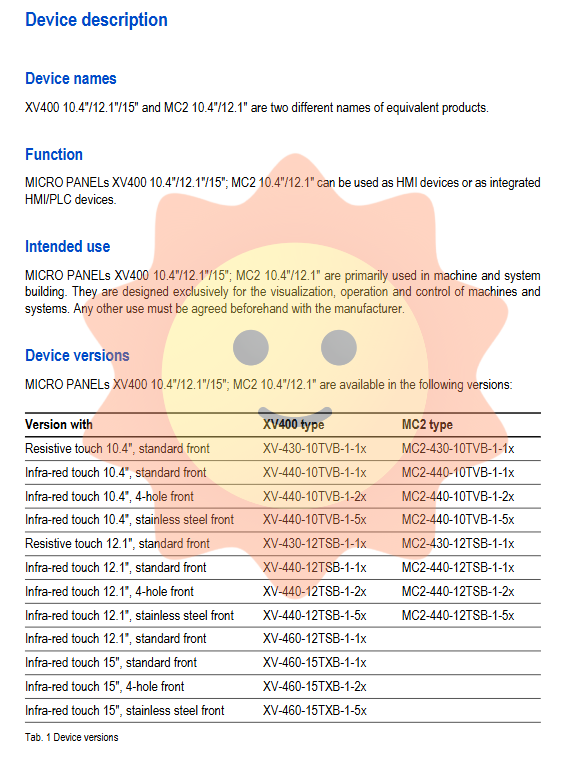

Eaton XV400 Industrial Tablet Complete Guide

15 ": 410 * 315 mm (± 1 mm), 4 * * 6.5 mm mounting hole

Material thickness: 2.20 mm

2.3 Installation precautions

Sealing requirement: All versions must use the accompanying sealing strip or front frame sealing ring to ensure IP65 protection

Tightening torque: When tightening the threaded pin, pay attention to the maximum torque, as excessive tightening may cause deformation of the front panel

Installation direction: 10.4 "and 12.1" can be installed horizontally or vertically, 15 "must be installed horizontally

Ventilation requirements: Leave at least 3 cm of ventilation gap around the equipment and at least 15 cm away from heating elements

2.4 Installation requirements for special environments

Explosion proof area application (ATEX)

Zone 22 (Category 3D): Standard front frame, four hole front frame, and stainless steel front frame can all be used, and corresponding accessories are required

Zone 1 (Category 2G)/Zone 2 (Category 3G): limited to 10.4 "and 12.1" stainless steel front frame versions only, must be installed inside a positive pressure housing

Maximum sustained pressure: 10 mbar

Maximum pressure during flushing: 30 mbar

UL 60950 certification requirements

The equipment must be installed in the final product

The environment meets pollution level 2

Must be powered by SELV power supply

The functional grounding terminal must be connected to the protective grounding of the final product

Ethernet network shall be isolated from the Internet or protected by firewall/router

Chapter 3 Interface Configuration and Wiring Guide

3.1 Interface Overview

The XV400 series provides rich communication interfaces on the device side:

Interface Type Description

Power Supply 3-Pin Phoenix Contact MSTB 2.5/3-ST-5.08 24 VDC SELV

System port RS232 (D-Sub 9-pin male) non isolated

Ethernet RJ45 10/100Base TX

USB Device USB Type B USB 1.1

USB Host 0/1 USB Type A USB 2.0， 2 of them

CAN D-Sub 9-pin male electrical isolation

DIAG - For Service Only

3.2 Power interface

XV400 adopts 24 VDC SELV power supply, and the interface is Phoenix Contact MSTB 2.5/3-ST-5.08 pluggable screw terminal:

Terminal signal description

Positive pole of 1+24 VDC 24 VDC power supply

2 ⏚ Functional grounding (connected to the casing)

3 0 V 24 VDC power supply negative pole

Electrical parameters

Rated voltage: 24 VDC

Allowable voltage range: 20.4... 28.8 VDC (-15%/+20%)

Absolute limit (including ripple): 19.2... 30.0 VDC

Short time withstand voltage (<100 ms): 35 VDC

power consumption

10.4 "/12.1": Basic equipment up to 18 W, including communication module+USB up to 32 W

15 ": Basic equipment up to 30 W, including communication module+USB up to 44 W

Continuous current:

10.4 "/12.1": Maximum 1.3 A (24 VDC)

15 ": Maximum 1.8 A (24 VDC)

Start impulse current: 3.0 A, lasting for 2 seconds

3.3 Communication Interface

RS232 (system port)

Non isolated serial interface, GND is directly connected to the shell potential. Relationship between cable length and baud rate:

Maximum baud rate for cable length

2.5 m 115200 bit/s

5 m 57600 bit/s

10 m 38400 bit/s

15 m 19200 bit/s

30 m 9600 bit/s

Ethernet

Standard: 100Base TX/10Base T

Connector: RJ45 socket

LED indication:

ACT (yellow): Blinking indicates activity

LINK (green): Constant light indicates normal connection

Cable requirements: Shielded Twisted Pair (STP)

Maximum length: 100 meters

USB

USB Host: 2xUSB 2.0, Type A socket

USB Device: USB 1.1, Type B socket

Cable requirement: Shielded USB standard cable

Maximum length: 5 meters

CAN

CAN interface with electrical isolation, compliant with CiA standard:

Pin signal description

2 CAN-L bus lines (low level active)

3 CAN-GND CAN Grounding

6 GND optional CAN grounding

7 CAN-H bus lines (high level active)

Cable specifications

Characteristic impedance: 120 Ω (allowable range 108... 132 Ω)

Unit length capacitance:<60 pF/m

Wire diameter/maximum length:

≥0.25 mm² / 100 m

≥0.34 mm² / 250 m

≥0.75 mm² / 500 m

The relationship between baud rate and length

Maximum baud rate for cable length

25 m 1000 kbit/s

50 m 800 kbit/s

100 m 500 kbit/s

250 m 250 kbit/s

500 m 125 kbit/s

1000 m 50 kbit/s

2500 m 20 kbit/s

5000 m 10 kbit/s

Bus topology requirements

Up to 32 nodes per network segment

Both ends must be connected to a 120 Ω terminal resistor

It is recommended to use a repeater for distances exceeding 1000 meters

Chapter 4 Operation and Instruction Components

4.1 Front panel components

Component function

Touch sensor detects the movement of operating components on the display screen

Display screen displays operation and indicator components

4.2 Side service components

Operating components

CF card slot cover: fix CF card

CF Slot 0: Operating System, PLC, and Visualization Projects

CF slot 1: Data storage

Pop up button: Pop up CF card

Control buttons: Function depends on software

LED indicator light

LED color function

CF ACT red CF card lights up when accessed

CAN ACT green lights up during CAN data transmission

TOUCH ACT turns off when green starts, stays on when ready to touch, and flashes when touched

TOUCH ERROR is always on when starting in red, off when ready, always on when faulty, and flashes when infrared pollution occurs

SUPLY OK green lights up when all internal system voltages are normal
