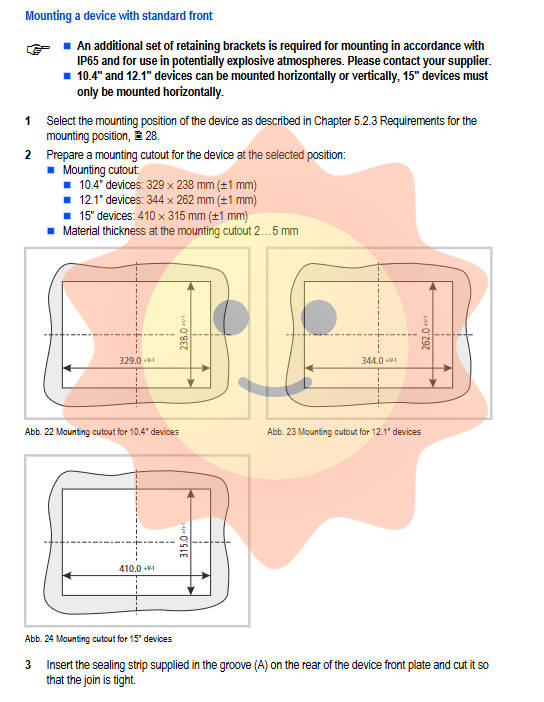

Eaton XV400 Industrial Tablet Complete Guide

4.3 Startup and Shutdown

Startup steps

Insert the CF card containing the operating system into CF slot 0

Insert the CF card containing data into CF slot 1 (optional)

Connect the power and the device will automatically start

After the first startup, the system settings and application installation need to be completed

Close

Simply disconnect the power supply

Frequent on/off (especially at low temperatures) can shorten the lifespan of the backlight. It is recommended to reduce the brightness as an alternative

Chapter 5 Maintenance and Troubleshooting

5.1 Daily Maintenance

Maintenance requirements for touch types

Resistance type maintenance free, clean in case of contamination, recalibrate in case of abnormal response

Infrared type requires regular cleaning of the infrared frame and does not require calibration

Cleaning precautions

Use a clean, soft, and slightly damp cloth

Stubborn stains can be sprayed with a small amount of cleaning agent on the cloth

Prohibit the use of sharp objects, corrosive cleaning agents, or solvents

Prevent liquids from entering the interior of the equipment

5.2 Troubleshooting Guide

Possible causes and solutions for the fault phenomenon

The device does not start and the power is not connected. Check the power cable

When starting, it displays "No OS found" on the CF card. If there is no operating system, load the operating system onto the CF card and insert it into CF slot 0

Display 'Calibrate touch' at startup, resistance touch not calibrated, recalibrate touch

Display 'Clean IR frame' at startup, infrared frame contamination, clean infrared frame

Display screen black backlight off or fault check software settings. If there is a fault, send it for repair

Touch unresponsive touch uncalibrated/infrared contamination/touch disabled calibration/cleaning/activated touch

TOUCH ERROR: Infrared frame contamination/equipment malfunction. Clean the infrared frame. If it is ineffective, send it for repair

5.3 Battery and Maintenance

Battery: CR2032 lithium battery is welded inside the equipment and cannot be replaced, with a lifespan of approximately 10 years

Repair: The equipment can only be opened by the manufacturer or authorized repair center, and the original packaging must be used when sending it for repair

Chapter 6 Environment, Safety and Disposal

6.1 Certification and Standards

Certification standards

EMC 2004/108/EC，IEC/EN 61000-6-2，IEC/EN 61000-6-4

Explosion proof ATEX 94/9/EC, IEC/EN 60079-0, IEC/EN 60079-31

Safety IEC/EN 60950, UL 60950 (document number E208621)

Product standards EN 50178, IEC/EN 61131-2

6.2 Materials and Environmental Protection

Equipment and materials

Shell: Galvanized steel plate

Front panel: standard/four hole anodized aluminum, stainless steel version is stainless steel

Infrared frame: polycarbonate (PC)

Infrared touch protection board: glass

Resistive touch back panel: glass+polyester film

Cold cathode lamp: containing mercury (<5 mg)

Battery: Lithium CR2032, containing 2-4% EGDME substance

packaging material

Outer packaging: cardboard

Inner packaging (10.4 "/12.1"): cardboard+PE film, PE plastic bag

Inner packaging (15 "): closed cell polyethylene foam (CFC free), PE plastic bag

6.3 Disposal requirements

When discarding equipment, professional disposal must be carried out in accordance with national regulations, and it is not allowed to be discarded at will. Due to the presence of lithium batteries and mercury containing cold cathode lamps inside, improper disposal may pose a risk of explosion or poisoning. Can be returned to the manufacturer or sales point for environmental treatment.

Model Supplement

XV400 series models

1. 10.4-inch version

Model/Description

XV-430-10TVB-1-1x 10.4 "resistive touch, standard front frame

XV-440-10TVB-1x 10.4 "infrared touch, standard front frame

XV-440-10TVB-12x 10.4 "infrared touch, four hole front frame

XV-440-10TVB1-5x 10.4 "infrared touch, stainless steel front frame

2. 12.1-inch version

Model/Description

XV-430-12TSB-1x 12.1 "resistive touch, standard front frame

XV-440-12TSB-1-1x 12.1 "infrared touch, standard front frame

XV-440-12TSB-1-2x 12.1 "infrared touch, four hole front frame

XV-440-12TSB-1-5x 12.1 "infrared touch, stainless steel front frame

XV-460-12TSB-1x 12.1 "infrared touch, standard front frame

3. 15 inch version

Model/Description

XV-460-15TXB-1-1x 15 "infrared touch, standard front frame

XV-460-15TXB-1-2x 15 "infrared touch, four hole front frame

XV-460-15TXB-1-5x 15 "infrared touch, stainless steel front frame

MC2 series models (equivalent to XV400 products)

1. 10.4-inch version

Model/Description

MC2-430-10TVB-1-1x 10.4 "resistive touch, standard front frame

MC2-440-10TVB-1-1x 10.4 "infrared touch, standard front frame

MC2-440-10TVB-1-2x 10.4 "infrared touch, four hole front frame

MC2-440-10TVB1-5x 10.4 "infrared touch, stainless steel front frame

2. 12.1-inch version

Model/Description

MC2-430-12TSB-1-1x 12.1 "resistive touch, standard front frame

MC2-440-12TSB-1-1x 12.1 "infrared touch, standard front frame

MC2-440-12TSB-1-2x 12.1 "infrared touch, four hole front frame
