Eurotherm Mini8 Controller Integration Guide

Eurotherm Mini8 Multi functional Controller Engineering Application and Integration Guide

In modern industrial process control, facing multiple requirements such as multi loop PID regulation, data acquisition, and fieldbus communication, engineers often need to achieve high-density analog processing in a compact space. Although traditional PLC solutions are flexible, the hardware cost and programming burden significantly increase when there are a large number of analog channels. The Mini8 controller launched by Eurotherm is designed for this purpose - it combines the powerful algorithm of high-end panel PID controllers with the flexibility of modular I/O. It can support up to 16 control loops, 32 analog inputs, and has built-in software function blocks such as mathematical operations, logic judgments, timers, etc. It is also compatible with mainstream industrial networks such as Modbus, Profibus DP, DeviceNet, EtherNet/IP, and EtherCAT. This article will provide a comprehensive technical reference for automation engineers from the aspects of hardware selection, control function configuration, communication integration, fault diagnosis, and typical applications.

Product positioning and core advantages

The Mini8 controller is not a traditional single loop regulator, but a compact modular system designed for distributed control and data acquisition. The core design concept is to unload simulation measurement and closed-loop control tasks that are difficult for PLC to efficiently handle onto dedicated equipment, thereby reducing the load on the main control system and even allowing the use of lower specification CPUs.

Main highlights:

High density I/O: A single Mini8 can accommodate up to 4 I/O slots, supporting thermocouples RTD、 Multiple modules including analog output, digital I/O, relay output, and current transformer input.

Powerful control capability: 0, 4, 8, or 16 PID loops can be selected, supporting single output or dual channel (heating/cooling) control, with automatic tuning, output limiting, feedforward, loop disconnection alarm and other functions.

Built in toolkit: mathematical operations (addition, subtraction, multiplication, division, logarithm, exponent, etc.), logic gates (AND, OR, XOR, comparator), timers, counters, accumulators, 16 point line fitting, etc., can be used to construct small machine control logic.

Set value programming: Up to 8 programs, with a maximum of 16 segments per program (slope/insulation), combined with 8 event outputs, suitable for batch processes and thermal cycles.

Heater fault detection: With the CT3 current transformer input module, it can monitor the current of up to 8 heaters, detect partial load failure, overcurrent, and SSR short circuit/open circuit.

Multiple communication protocols are available: serial (Modbus RTU), fieldbus (Profibus DP, DeviceNet), and Ethernet (Modbus TCP, EtherNet/IP, EtherCAT), making it easy to integrate into different control systems.

OEM security protection: prevents configuration from being illegally cloned through passwords or encryption methods, protecting the proprietary technology of device manufacturers.

Modular hardware selection and installation requirements

2.1 Power Supply and Installation Environment

Mini8 adopts 24V DC power supply (allowable range 17.8V~28.8V), with a maximum power consumption of 15W. It must be installed inside a protective enclosure (such as a control cabinet), with a working temperature of 0~55 ℃ and humidity of 5%~95% without condensation. Compliant with EN61010 installation category II and pollution level 2. The product has passed CE and cUL certification (document E57766).

Mechanical installation: Symmetrical DIN rails (EN50022 35 × 7.5 or 35 × 15 mm) are used for horizontal installation. The external dimensions are 124 mm (width) x 108 mm (height) x 115 mm (depth), and the weight is approximately 1 kg. Note that if the RL8 relay output module is selected, the Mini8 chassis must be grounded using protective grounding screws.

2.2 I/O module configuration (slots 1-4)

Special restrictions on the number of module channels function

TC8/TC4 8/4 thermocouple/mV input 20 bit resolution, 1.6 μ V sensitivity, supports C, J, K, L, R, B, N, T, S and linear mV

RT4 4 2/3/4 wire RTD (Pt100/Pt1000) three wire system requires compensating wire resistance

AO8/AO4 8/4 analog output 0-20mA, limited to slot 4 only, load resistance ≤ 360 Ω

DO8 8 logic output (PNP) requires an external supply of 15-30Vdc, with 100mA per channel and a total current limit of 200mA

RL8 8 relay output (normally open/normally closed) is only available for slot 2 or 3, contact 2A/264Vac, and cannot be used for slot 1 or 4

CT3 3 current transformer input (0~50mA rms), up to 1 per Mini8, in conjunction with heater load detection

DI8 8 logic input (24Vdc) has the same specifications as fixed I/O

Fixed I/O (built-in on power card):

2-channel relay output (capacity<1A, 42V pk, no impedance capacitance absorption)

2-channel logic input (ON: ≥ 10.8V, OFF: ≤ 5V, minimum detection pulse width 110ms)

Important selection constraints:

Up to 4 I/O modules can be mixed, but slot type restrictions must be followed.

AO8/AO4 can only be installed in slot 4.

RL8 can only be installed in slot 2 or 3, but two (slot 2+3) can be installed simultaneously to obtain 16 relay outputs.

CT3 is only one piece per unit and is usually used for monitoring heater current.

If the heater fault detection function is required, the CT3 module and the controlled output module (DO8 or RL8 or fixed relay) must be configured simultaneously, and the current monitoring algorithm must be configured in the software.

2.3 Communication interface options

The communication function of Mini8 is a mutually exclusive option, and one must be specified when ordering:

Modbus RTU：RS485， Dual RJ45 interface, switchable between three wire or five wire system.

DeviceNet: CAN interface, speed 4800/9600/19200.

Profibus DP：RS485， 9-pin D-sub or RJ45, maximum 12M.

Ethernet/EtherNet/IP/Modbus TCP: standard RJ45, 10/100BaseT.

EtherCAT：100BaseT， Dual port.

All communication versions support multi station networking, making it easy to exchange data with PLC, SCADA, or DCS systems. In addition, the device also provides an independent configuration communication port (RS485 Modbus RTU) for connecting to iTools software for engineering debugging.

Deep analysis of control functions

3.1 PID Control Loop

Mini8 can be configured with 0 (pure data acquisition), 4, 8, or 16 PID loops. Each circuit is equipped with:

Control modes: On/Off (two position), single PID, dual channel PID (heating/cooling).

Output types: analog (4~20mA), time proportional logic output (for solid-state relays), relay output.

Cooling algorithm: Linear, water-cooled, fan or oil cooled options are available.

Setting method: Three independent PID parameters, supporting one click self-tuning (automatic tuning).

Disturbance free switching: automatic/manual disturbance free switching, or forced manual output.

Auxiliary functions: setting slope limit, output change rate limit, feedforward control, input tracking, sensor disconnection output preset value, circuit disconnection alarm, two internal setting values, etc.

This control performance is comparable to the Eurotherm 3000 series panel controller and can meet high-precision applications such as extruders, heat treatment furnaces, and environmental testing chambers.

3.2 Setpoint Programmer

This function is a software option (choose 1PRG or XPRG when ordering). Allow users to create slope/insulation programs:

Number of programs: Up to 8 independent programs.

Number of segments: Each program can have up to 16 segments (a total of 128 segments), and each segment can be set with target values, time, and slope.

Event output: Each segment can trigger up to 8 events (out of a total of 64 event outputs), which can be used to switch auxiliary devices such as alarm lights and fans.

Digital input control: can allocate functions such as running, holding, resetting, program stepping, jumping, synchronization, etc.

Power outage recovery strategy: You can choose to restart the ramp, reset the program, or continue running.

Servo start: You can choose to start the program with the current PV value or set SP value.

Typical applications: temperature curve of heat treatment, sterilization cycle, material aging testing.

3.3 Heater Failure Detection

By using the CT3 input module (3-channel current transformer input) and corresponding output module (DO8 or relay), it is possible to achieve:

Detection type:

Partial Load Failure - For example, some branches in a group of heaters are open circuited.

Over current.

SSR short circuit (causing continuous heating) or open circuit.

Measurement method: The cyclic algorithm measures the current of each heater in sequence, with only one heater measured at each measurement interval.

Current range: 0~50mA rms (from CT secondary side). The CT ratio can be set from 10:0.05 to 1000:0.05.

Alarm output: The upper and lower limits of the current for each heater can be set in the software, and an alarm will be triggered if it exceeds the limit.

This feature is crucial for scenarios such as plastic processing and hot runner systems where heating failure is not allowed to result in waste.

3.4 Toolkit Blocks

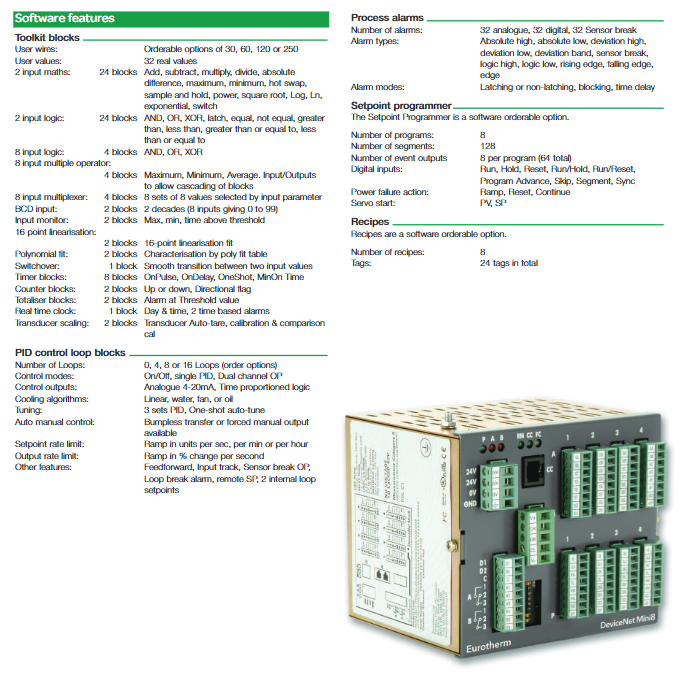

Mini8 has rich built-in soft logic function blocks, allowing for simple machine control without the need for an external PLC

Mathematical operations (24 blocks): addition, subtraction, multiplication, division, absolute value, maximum/minimum, power, square root, logarithm, exponent, toggle switch.

Logical operations (24 dual input blocks, 4 eight input blocks): AND, OR, XOR, latch, equal to, greater than/less than comparison.

Multiplexing device (4 blocks with 8 inputs): Select one of the 8 inputs based on the parameters.

BCD input decoding (2 blocks): decodes 8 digital inputs into 0-99 numerical values.

Input monitor (2 pieces): Record the maximum value, minimum value, and threshold exceeding time.

Signal conditioning: 16 point line fitting, polynomial fitting, smooth switching.

Timer (8 pieces): pulse, conduction delay, monostable, minimum conduction.

Counter (2 pieces): add/subtract, with directional signs.

Accumulator (2 blocks): Alarm when threshold is reached.

Real time clock (1 block): Date and time, up to 2 times can trigger an alarm.

These functional blocks can be "soft wired" through iTools software's graphical Wiring Editor to construct a complete strategy from input measurement to output control.

Communication Integration and Network Configuration

4.1 Modbus RTU and Fieldbus

For situations where integration with existing PLC systems is required, Mini8 is very convenient as a slave device. For example:

Profibus DP: Import the main station configuration using GSD files, with configurable I/O data length. Mini8 supports up to 12M baud rate and can be used with 9-pin D-port or RJ45.

DeviceNet: Supports polling I/O and explicit messaging, and can be integrated through EDS files.

Modbus RTU: Function code 03/06/16 read-write hold register, which can be directly mapped to PV, SP, OP and all engineering parameters.

All periodic data exchanges for communication can be mapped internally within Mini8 without the need for additional programming.

4.2 Ethernet Protocol

Modbus TCP: Same register mapping as Modbus RTU, connected via RJ45. EtherNet/IP: Supports implicit (I/O) and explicit messaging, and can be integrated with Rockwell ControllLogix/CompactLogix as an adapter (slave). EtherCAT: Suitable for applications that require high real-time synchronous control, such as a combination of motion control and temperature control. The communication status LEDs (RN, RUN, ERR, MOD, NET) can provide diagnostic information (see data manual LED status table for details).

4.3 Upper computer software and configuration

Eurotherm iTools is a free graphical engineering tool that supports:

Device scanning: Discover Mini8 on the network through RS232 (requires configuration clip SUB21/IV100) or Ethernet.

Graphic Wiring Editor (GWE): Drag and drop function blocks, use "soft wires" to connect inputs, outputs, PID circuits, toolkits, etc., and monitor values in real-time.

Parameter tuning: Modify PID and alarm limits online.

Data recording: optional trend viewing.

Configuration upload/download: Backup or clone configuration.

For mass production equipment, OEMs can enable security protection features to prevent unauthorized configuration reading or copying.

Typical application scenarios and configuration examples

5.1 Extruder temperature control (8 zones, heating/cooling)

Requirement: 8 heating zones, each requiring thermocouple input+heating output (SSR)+cooling output (valve).

Mini8 configuration:

Number of control loops: 8LP (8 PID loops).

I/O module: Slot 1=TC8 (8-way thermocouple), Slot 2=CT3 (optional or for backup), Slot 3=DO8 (8-way logic output for SSR), Slot 4=DO8 (additional 8-way logic output for cooling valve).

Optional EC8 pre configured application (8-loop extrusion control) can save programming time.

Communication: Profibus DP is connected to the PLC to read the set values and operating status.

Advantage: PLC only needs to exchange a small amount of data, without the need to write PID algorithms and self-tuning logic.

5.2 Multi zone heat treatment furnace (16 circuits)

Requirement: 16 thermocouples, 16 channels of 4-20mA output control thyristor power regulator.

Mini8 configuration:

Control circuit: 16LP.

I/O module: Slot 1=TC8 (1-8), Slot 2=TC8 (9-16), Slot 3=AO8 (9-16 analog output) - but AO8 can only fit in Slot 4, do we actually need two Mini8s or other modules? Note: AO8 is only available in slot 4, and a single Mini8 can only provide up to 8 analog outputs (as slot 4 only has one AO8). To achieve 16 analog outputs, two Mini8s need to be cascaded through communication.

Alternative solution: Use DO8 output time proportional logic+SSR for lower cost.

Communication: EtherNet/IP is integrated into the Rockwell system, and multiple Mini8s are coordinated by the main PLC.

5.3 Oven heater fault monitoring

Requirement: 8 heaters, each with a current of 10A, requiring detection of wire breakage or overcurrent.

configuration

Mini8 is equipped with CT3 module, and each CT selects a ratio of 100:0.05 (i.e. 10A input → 5mA output).

Configure the "Current Monitoring" function block in iTools and allocate the three inputs of CT3 to 8 heaters through scanning algorithm (in reality, CT3 only has 3 physical inputs, but 8 can be measured through multiplexing)? The data manual specifies "Max number of loads: 8", which means a maximum of 8 loads can be measured at each measurement interval, with one being scanned cyclically.

Set high/low alarm thresholds for each circuit, triggering an alarm output when the current exceeds the range (such as closing the contactor through a fixed relay).

Installation wiring and maintenance precautions

6.1 Wiring specifications

Thermocouple input: Use compensating wires and pay attention to polarity (TC+corresponds to positive pole). TC8 module channel isolation 42V pk.

RTD input: When using a three wire system, it is necessary to ensure that the wire resistance matches, and separate the wiring by "I+" and "S+".

Analog output: 0~20mA, maximum load of 360 Ω, pay attention to the grounding of the shielding layer.

Relay output (RL8): Contact capacity 2A/264Vac, no built-in resistance capacitance absorption, RC suppressor or varistor must be added when external inductive load is connected.

Logical output (DO8): An external 24V power supply is required, and this power supply must be isolated from the system power supply to maintain 42V isolation between the channel and the system. The total current shall not exceed 200mA.

CT3 input: 0-50mA signal from current transformer, no external power supply required, but the CT secondary side should not be open circuited.

6.2 Grounding and Protection

If using RL8 module, the protective grounding terminal (PE) must be connected to the system grounding point.

Communication cables should use shielded twisted pair cables and be grounded at one end.

It is recommended to install a filter at the power input end to prevent conducted interference.

6.3 Daily maintenance and troubleshooting

Possible causes and countermeasures for the phenomenon

Controller no response, P LED power failure or overload check 24V input voltage, measure if power consumption exceeds 15W. Remove some modules for testing.

Abnormal PV display in a certain circuit (e.g. -999), sensor disconnection inspection, TC/RTD wiring; If it is a TC input, when the sensor is disconnected, the PV should display over range (not specified in the data manual, but can be configured to select up/down drive).

Heater malfunction alarm false positive CT ratio setting error, or current waveform distortion check CT parameters, use true effective value table to measure actual current. Adjust the alarm threshold.

Communication timeout, NET LED red bus address duplication, cable breakage, or terminal resistance not set. For Profibus, check the uniqueness of the address and confirm that the terminal resistance at both ends of the bus is ON.

Unable to connect iTools configuration port due to wiring error or missing driver program. Use SUB21/IV100 adapter (RS232 to 5-pin plug) to connect to PC and confirm COM port.

The configuration cannot be saved or lost. The internal supercapacitor is depleted (the storage parameters are saved in Flash and should not be lost). Please download the configuration again. If it repeatedly occurs, contact technical support.

Ordering and Selection Guide

The ordering code for Mini8 consists of multiple options, and engineers need to confirm each one:

Product series: MINI8

Temperature unit: C (Celsius) or F (Fahrenheit)

Number of wires (terminals): 30/60/120/250 (number of user connections, selected based on the number of I/O points)

Number of control loops: ACQ (acquisition only, no PID), 4LP, 8LP, 16LP

I/O modules (slots 1, 2, 3, 4): Fill in module codes by location (such as TC8, TC8, XXX, AO8)

Program (Set value programming): OPRG (none), 1PRG (1 program, 50 segments), XPRG (multiple programs, 50 segments)

Power supply: VL (24V DC)

Application pre configuration: STD (standard), EC8 (8-loop extrusion), FC8 (8-loop furnace)

Formula: NONE or RCP

Calibration certificates: NONE, CERT1 (compliance), CERT2 (5-point calibration per channel)

Special option: EU0725 (OEM safety)

Configuration software: ENG (English DVD), or ITOOLS download

Attention: EC8 pre configuration requires 8 control loops and specifies TC8 (slot 1), CT3 or XXX (slot 2), DO8 (slot 3), DO8 (slot 4). FC8 requires TC8 (slot 1), XXX (slot 2), XXX (slot 3), and AO8 (slot 4).

Recommended attachments:

SUB21/IV100: RS232 configuration clip, used to connect iTools

Corresponding model of current transformer (10A/25A/50A/100A)

HA031260: Engineering Tool Kit DVD
