OMRON CPM2C system fault diagnosis and maintenance

OMRON CPM2C Programmable Controller System: Practice Guide for Deep Fault Diagnosis and Preventive Maintenance

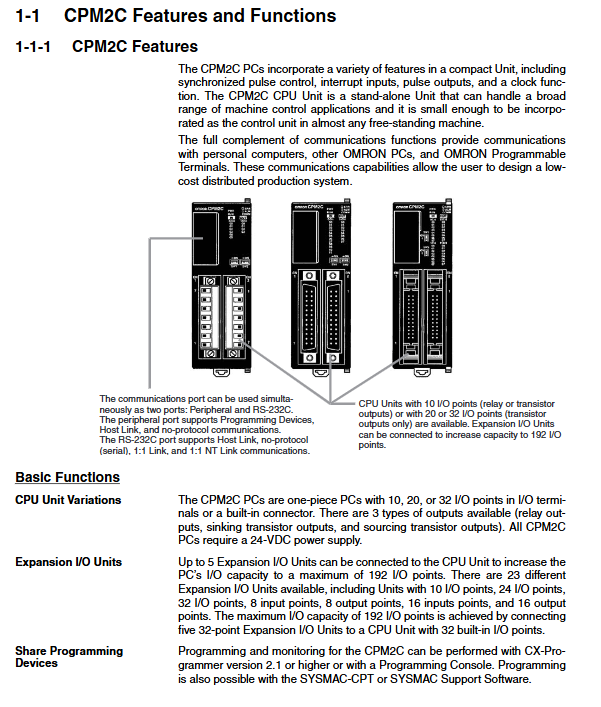

In the field of industrial automation, programmable controllers are the brain of the system, and their stable operation is the cornerstone of the entire production process. OMRON's CPM2C series compact high-performance PLCs are widely used in various machine controls due to their rich built-in functions (such as step pulse control, interrupt input, high-speed counting) and flexible expansion capabilities. However, like all precision electronic devices, hardware aging, environmental interference, software logic errors, and other factors can all cause system abnormalities during long-term operation. For on-site engineers, mastering a systematic set of fault diagnosis and maintenance methods is far more important than just understanding programming. This article aims to provide a comprehensive troubleshooting and maintenance guide for CPM2C PLC, helping engineers transition from "passive response to faults" to "proactive problem prevention" to ensure the highest availability of the production line.

Part One: Establishing the Foundation of Fault Diagnosis - Understanding the Self Diagnostic System of CPM2C

The design of CPM2C reflects a high degree of intelligence, and its built-in self diagnostic function is the first line of defense for troubleshooting. These functions continuously monitor the status of CPU units, memory, I/O buses, and power supplies, and can classify errors based on their severity, providing engineers with clear fault directions.

1. Incorrect classification: fatal and non fatal

CPM2C divides all runtime errors into two core categories, and understanding their differences is crucial:

Fatal error: Once this type of error occurs, it means that the PLC cannot guarantee safe or correct execution of the program. The CPU unit will immediately stop program execution and cut off all outputs to prevent device misoperation and safety accidents. The red ERR/ALM indicator light on the CPU unit panel will continue to light up. Common fatal errors include:

Memory error: checksum error in user program, read-only DM area, or PC settings.

I/O bus error: Data transfer between CPU unit and extended I/O unit or special extended unit failed.

No END instruction: The END (01) instruction is missing at the end of the user program.

Watchdog timer timeout: The program loop execution time exceeds the maximum allowed cycle time defined in the PC settings.

Non fatal error: Although this type of error reflects abnormal conditions in the system (such as low battery voltage, program logic warning), it will not cause the PLC to shut down immediately. The CPU will continue to execute user programs, but the ERR/ALM indicator light will flash, reminding the operator to pay attention and solve the problem. For example, user-defined errors triggered by executing the FAL (06) command, or detecting low backup battery voltage.

2. Error message and code reading

When an error occurs, CPM2C provides multiple ways to obtain detailed diagnostic information:

Programmer display: After connecting the handheld programmer, intuitive error messages (such as Memory ERR, I/O BUS ERR) will be directly displayed on the screen when an error occurs.

Error flag: The system status will be mapped to special auxiliary relay (AR) and special relay (SR) areas. For example, AR 1308 is set to ON when there is an illegal address in the user program; AR 1314 is set to ON when data loss occurs in the designated retention area after power failure.

Error code: A 2-digit hexadecimal error code will be output to SR 25300 to SR 25307, and the code and its occurrence time will be recorded in the error log area (DM 2000 to DM 2021), providing convenience for post event tracing.

Part 2: Systematic troubleshooting process for core fault scenarios

After understanding theory, the key lies in practice. The following are detailed troubleshooting steps for the most common fault scenarios of CPM2C, combined with the flowchart ideas in the manual.

Scenario 1: PLC "freezes" - POWER indicator light does not light up

This is the most basic power failure. Check according to the following logical chain:

Confirm external power supply: Use a multimeter to measure the power input terminals of the CPU unit or power supply unit. For CPM2C-PA201 AC power supply unit, the input should be within the range of 100-240 VAC; For DC powered CPU units, the voltage should be between 20.4-26.4 VDC.

Check the connection: Confirm that the power cord is securely connected without looseness or breakage. Especially when using CPM2C-PA201, check if the power connector between it and the CPU unit is correctly inserted and locked.

Check for overload/short circuit: If the 24 VDC service power supply of CPM2C-PA201 is used, check for overload or short circuit. Overload can cause voltage drop or even no output, resulting in power failure of the CPU unit.

Hardware replacement: If the above checks are normal but the PWR light still does not light up, it is highly likely that the CPU unit or power supply unit itself has a hardware failure and needs to be replaced.
