OMRON CPM2C system fault diagnosis and maintenance

CPM2C provides more refined control options to help engineers adapt to complex on-site environments.

Adjustment of input time constant: Contact jitter and electrical noise are often present in industrial sites. CPM2C allows setting input time constants uniformly for all input points in PC settings (optional 1, 2, 3, 5, 10, 20, 40, 80 ms). Increasing the time constant can effectively filter out high-frequency noise and contact jitter, but it will slightly increase the response delay of the input signal. The default value is 10 ms, which is a good starting point for balancing reliability and response speed.

User defined error: In addition to system self-test, engineers can actively create faults in the program.

FAL (06): Used to create non fatal errors. When a specific production exception (such as material shortage) occurs, this command can be triggered to flash the ERR/ALM light and display a custom FAL number on the programmer to alert the operator, but without stopping the machine.

FALS (07): Used to create fatal errors. When a serious malfunction that may endanger equipment or personal safety is detected (such as triggering an emergency stop), this command can immediately stop the PLC operation and cut off all outputs, achieving software level safety interlocking.

Part 4: Preventive Maintenance - Battery Replacement and Regular Inspection

Proactive maintenance is far more important than repairing after a malfunction.

Battery replacement (key procedure): CPM2C uses batteries to maintain clock data and some data in the DM, HR, and counter areas. When the ERR/ALM light flashes and a battery error occurs, the battery must be replaced immediately. The standard operating procedure is as follows:

Safety preparation: Switch the PLC to Program mode and disconnect the main power supply of the system. Warning: The battery must be replaced in a power-off state.

Pre charging: If the PLC has been powered off for a long time, it is recommended to power it on for at least 5 minutes to fully charge the supercapacitor, which can provide valuable buffer time for battery replacement.

Quick replacement: For CPU units with clocks, battery replacement must be completed within 5 minutes to prevent data loss. For CPU units without clocks, supercapacitors can maintain data for about 10 days, but it should still be completed as soon as possible.

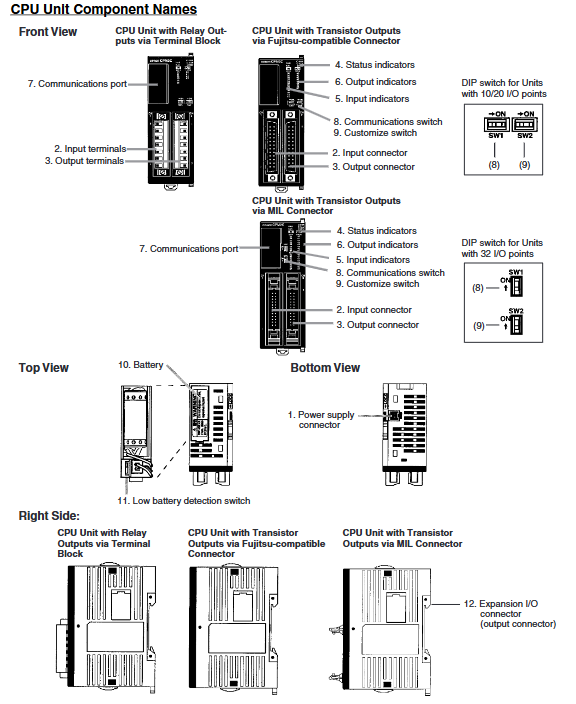

Physical operation: Find the battery cover on the side of the CPU unit and carefully pry it open with a screwdriver. Unplug the connector of the old battery and remove the old battery. Immediately insert the connector of the new battery, paying attention to polarity (the connector has a foolproof design). Put the new battery into the battery compartment.

Switch setting: Find the "low battery detection switch" inside the CPU unit. If a battery is installed, it should be turned "forward" (away from the battery direction) to enable the low battery detection function. If the battery is not installed (such as using a CPU unit without a clock and no battery is selected), the switch must be turned to "back" (towards the battery direction) to disable detection, otherwise the PLC will continue to report battery errors.

Recovery and recording: Cover the battery cover and power on again. Clear battery error messages. Fill in the next recommended replacement date on the attached label (usually 2-5 years, depending on the ambient temperature) and stick it in a prominent position.

Regular inspection checklist:

Environment: Check the temperature (0-55 ° C), humidity (10% -90%, no condensation), and dust accumulation inside the control cabinet.

Hardware: Confirm that all units, connecting cables, and terminal block screws are securely fastened.

Output relay: For relay output models, the contact life is related to the switching frequency and load size. In high-frequency or heavy-duty applications, it should be treated as consumables and regularly scheduled for replacement.
