OMRON CS1-H Series Programmable Controllers: Architecture, Functionality, and Version Evolution

1.Positioning and Core Advantages of CS1-H CPU Unit

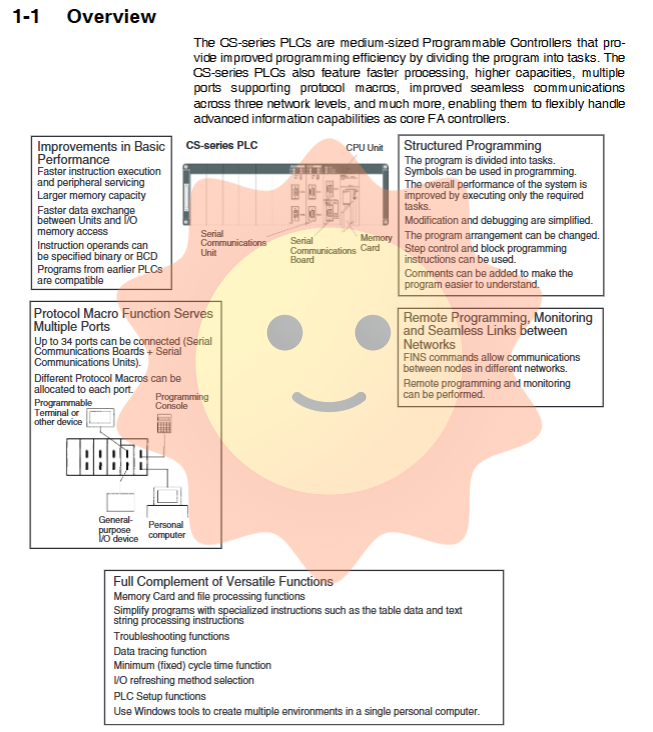

The OMRON CS series PLC is a high-performance controller designed specifically to meet the needs of medium to large-scale industrial control. This series maintains compatibility with traditional PLCs such as the C200H series while providing faster processing speed, larger storage capacity, and richer features. The CS1-H CPU unit is a high-performance model in this series, designed to achieve faster cycle times, more efficient structured programming, and more flexible network communication.

According to the manual description, the basic instruction processing time of CS1-H CPU unit is as low as 0.02 microseconds, and the special instruction processing time is as low as 0.06 microseconds. Its program capacity can reach up to 250K steps, data memory (DM+EM) can reach up to 448K words, and it can support up to 5120 I/O points. These fundamental performance indicators enable it to handle complex logic control, process control, and data intensive applications.

2. Unit version: Refined control of functional evolution

The introduction of the concept of "unit version" in the CS1-H CPU unit is the first key feature emphasized in the manual. This mechanism enables OMRON to add new features through firmware or microcode upgrades without changing the hardware. Users can identify the feature set supported by the CPU unit based on the version number on the product label (such as Ver.2.0, Ver.3.0, Ver.4.0, Ver.4.1). Units without version number markings are called "Pre Ver." versions.

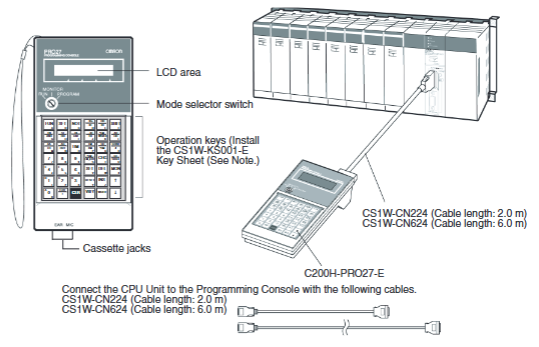

Unit version recognition: Users can confirm the unit version through the "PLC Information" or "Unit Manufacturing Information" function of CX Programmer software (Ver. 4.0 and above), or by directly viewing the nameplate on the front of the CPU unit.

Version and Function Support Matrix: The manual provides a detailed list of the functions supported by different versions, clearly demonstrating the evolution path of the product.

Ver. 2.0 and later: Introduced many practical features, such as:

Single task upload/download: allows multiple developers to work in parallel, only transferring modified tasks to improve team development efficiency.

Enhanced read protection password: can set read protection for the entire UM (user program memory) or specific tasks, and can prohibit program backup OBJ files have strengthened intellectual property protection.

FINS write protection: FINS write commands sent to CPU units through networks such as Ethernet can be restricted, allowing writes from specific nodes and enhancing network security.

Online network connection without I/O table: Even without creating an I/O table, CX Programmer can directly connect to PLC through Ethernet or other networks, simplifying initial setup.

Supports 8-level network communication: FINS commands can traverse up to 8 network levels, greatly expanding the scope of remote monitoring and programming.

Multiple new application commands: including multi interlock commands (MILH/MILR/MILC), time proportional output (TPO), gray code conversion (GRY), and combination commands that interact with external devices such as numeric keyboards and 7-segment code displays.

Ver. 3.0 and later: Function blocks become core upgrades.

Function Block: Compliant with IEC 61131-3 standard, allowing users to encapsulate standard processing flows into reusable modules, supporting ladder diagrams and structured text programming, greatly improving the reusability and maintainability of the program.

Serial gateway: The built-in serial port (RS-232C/peripheral port) of the CPU unit can automatically convert received FINS commands into CompoWay/F commands, enabling transparent access of network devices to OMRON components on the serial line.

Annotation memory: A dedicated area is opened in the internal flash memory of the CPU unit for storing symbol tables, annotations, and program index files, without relying on storage cards or EM file memory.

Ver. 4.0 and later: Enhanced the flexibility and application scope of functional blocks.

Function block online editing: allows modification of function block definitions during PLC operation, greatly reducing debugging and maintenance time.

Function block input-output variables: Breaking through the previous limit of up to 4 characters for data transmission, supporting the transmission of large amounts of data such as tables.

Text string support in function blocks: Strings can be directly processed in structured text, simplifying programming for communication commands and data display.

Ver.4.1 and beyond: Security has been further enhanced.

Read protection with extended password: Provides stronger encryption for UM and task read protection.

Disable password input after five consecutive password errors: effectively prevents brute force cracking attempts.

Use production batch number protection program to run: The program can be bound to a specific production batch number CPU unit to run.
