Introduction: A crucial step towards intelligent electrical operation and maintenance

In today's highly interconnected and highly secure industrial power distribution environment, traditional manual debugging methods are no longer able to meet the growing demand. As a leader in the low-voltage distribution field, Schneider Electric's PacT series circuit breakers (including MasterPact NT/NW, ComPacT NS, PowerPacT, and EasyPact) are not only known for their excellent protection performance, but also take a decisive step in the field of digital operation and maintenance.

The bridge that connects physical devices with the digital world is the portable testing interface called Service Interface (part number LV485500). Combined with the powerful EcoStruxure Power Commission (EPC) software, Service Interface provides on-site engineers and maintenance personnel with a comprehensive tool that integrates configuration, testing, and diagnosis. This article will deeply analyze the hardware characteristics, software functions, and key applications of Service Interface in complex circuit breaker testing, aiming to provide a detailed technical reference for electrical professionals.

Hardware architecture: robust design and flexible connectivity

Service Interface is not a simple data cable, but a carefully designed industrial grade field testing tool. Its hardware architecture fully considers the harsh environment and usability of on-site operations.

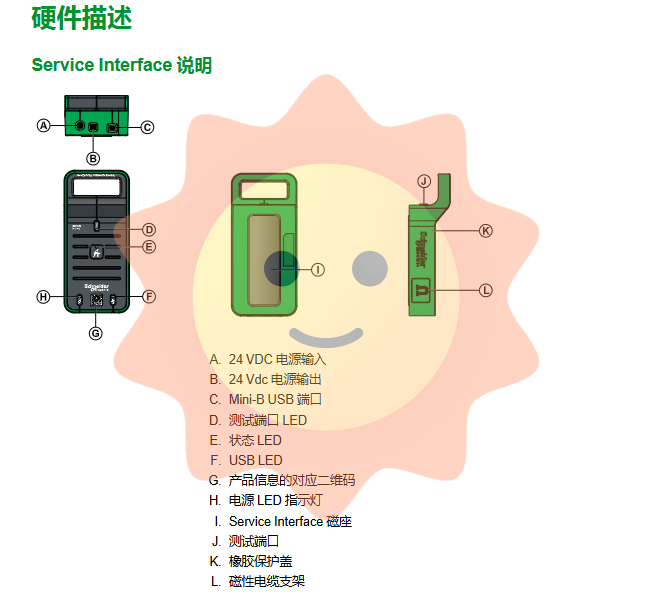

1. Core interface and security protection

The core of Service Interface lies in its test ports. This interface provides 12kV safety pulse protection, effectively preventing potential voltage surges during testing from damaging connected devices. At the same time, the equipment adopts a magnetic installation method, which can be firmly attached to the distribution cabinet or metal frame without the need for tools, greatly releasing the engineer's hands and facilitating operation. The interface part provides users with intuitive device status feedback through color coded LED indicator lights (green represents connection status, blue represents USB status, orange represents operating status).

2. Diversified connection cables

In order to be compatible with different series of Schneider circuit breakers, Service Interface is equipped with various specialized connection cables:

7-pin cable (LV485512SP): specifically designed for MasterPact NT/NW (630-6300A), ComPacT NS, and PowerPacT P-type and R-type circuit breakers.

7-pin cable (LV485513SP): specifically designed for ComPacT NSX and PowerPacT H, J, L circuit breakers.

ULP cable (LV485514SP): used to connect Enerlin'X equipment.

This "multi-functional" design allows engineers to carry only one Service Interface device to complete testing of the entire PacT series circuit breakers.

3. Power supply and data transmission

The Service Interface is powered by an external adapter with 110-230Vac or a 24Vdc power input, and communicates with the PC through a USB interface. In addition, it also integrates a 24Vdc power output port (up to 120mA), which can provide power to auxiliary devices (such as IO modules) that require external power supply, simplifying the wiring complexity of the testing site.

EcoStruxure Power Commission (EPC) software: Digital testing brain

If Service Interface is hands and feet, then EcoStruxure Power Commission (EPC) software is the brain. This global configuration and testing software has completely changed the debugging process of circuit breakers.

1. Automatic discovery and project management

The most significant advantage of EPC software lies in its automation capability. Through the Service Interface, the software can automatically discover connected smart devices (circuit breakers or trip units). Engineers only need to click on "Start Device Discovery", and the software can scan and identify the device model and trip unit type. Based on the discovery results, EPC automatically generates project configurations and allows users to save them to the cloud, thereby achieving centralized management and traceability of test data.

2. Difference highlighting and consistency check

During the project lifecycle, system configuration may undergo changes. EPC software has a powerful "difference highlighting" function, which can automatically compare project set values with actual equipment values. Any differences will be highlighted in yellow to help engineers quickly locate inconsistencies during debugging and maintenance, ensuring the integrity of the system.

In depth analysis: testing function for MicroLogic trip unit

For on-site engineers, the ultimate value of Service Interface and EPC software lies in its powerful testing capabilities. This system provides a comprehensive testing solution from basic to advanced for different series of MicroLogic trip units.

1、 Automatic release curve test
