SV-iG5A Inverter Engineering Practice: A Complete Manual from Fault Codes to System Optimization

In industrial automation sites, frequency converters are the core equipment driving motors, and LS Power's SV-iG5A series, with its compact design, flexible I/O configuration, and dual-mode capability supporting V/F and Sensorless vector control, has a large inventory of devices in small and medium power applications. As equipment ages, engineers often face issues such as downtime, parameter loss, communication abnormalities, and how to choose replacement parts. This article provides an immediately usable technical guide from the perspective of frontline maintenance, focusing on hardware installation, parameter debugging, typical fault handling, and preventive replacement strategies for SV-iG5A.

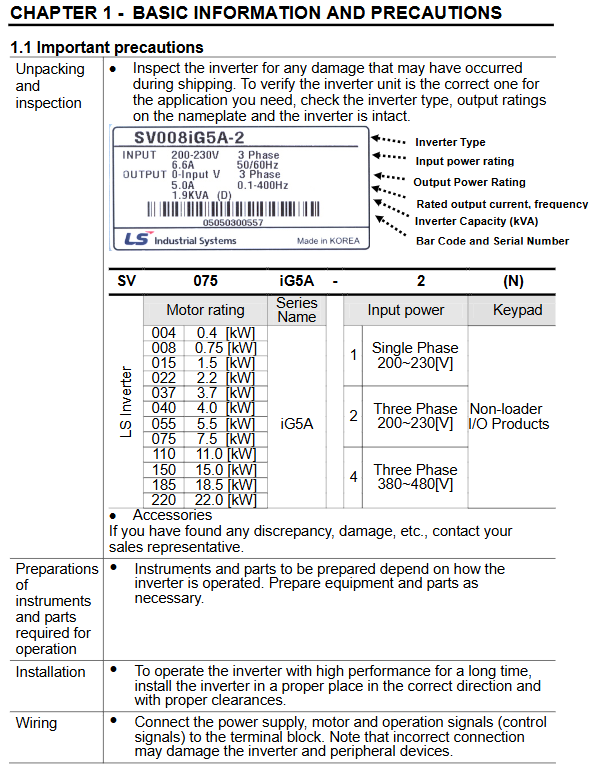

Safety and installation: an uncompromising foundation

Before starting any operation, it must be clear that the internal DC bus capacitor of SV-iG5A can still maintain dangerous voltage after power failure. The manual clearly requires that "after cutting off the input power, wait for at least 10 minutes until the LED keyboard display goes out" before conducting maintenance. In addition, due to the presence of ESD sensitive components inside, electrostatic protection measures must be taken before contacting the PCB.

Installation environment requirements:

Environmental temperature: -10 ℃~50 ℃, no freezing; Humidity below 90%, no condensation.

Altitude not exceeding 1000 meters, vibration ≤ 5.9m/s ² (0.6G).

It must be installed vertically (top up) to ensure smooth ventilation of the heat dissipation duct.

When multiple units are installed side by side, sufficient clearance should be reserved (see the dimension diagram in the manual). If a fan is required for forced ventilation in the enclosed cabinet.

Grounding key:

The grounding impedance of 200V level models should be lower than 100 Ω, and 400V level models should be lower than 10 Ω.

Special grounding terminals must be used and cannot be replaced with casing screws. The grounding wire diameter varies from 3.5mm ² to 22mm ² depending on the capacity.

Prohibited items for main circuit wiring:

It is strictly prohibited to connect the input power to the U, V, and W output terminals, otherwise the internal IGBT will be instantly damaged.

It is prohibited to install power factor compensation capacitors, surge suppressors, or RFI filters on the output side.

When the total length of the motor cable exceeds 50m, the carrier frequency (H39) should be reduced: ≤ 5kHz for 50-100m and ≤ 2.5kHz for over 100m to avoid overcurrent misoperation caused by distributed capacitance in the line.

These basic rules are the prerequisite for the long-term stable operation of the equipment, and any negligence may lead to IGBT explosion or control board failure.

Control terminal wiring and signal type selection

The control terminal block of SV-iG5A provides 8 multifunctional inputs (P1~P8), analog inputs (V1, I, VR), analog outputs (AM), and relay outputs (3A/3B/3C). The first challenge that engineers often encounter is the choice of PNP/NPN.

NPN/PNP switching:

When using an internal 24V power supply, short-circuit the CM terminal to the 24 terminal to form NPN mode (low level effective).

When using an external 24V power supply, the positive terminal of the external power supply should be connected to terminal 24, the negative terminal should be connected to CM, and the common terminal of the multifunctional input terminal should be connected to the negative terminal of the external power supply, which is PNP mode (high level effective).

This setting is clearly illustrated on the inside of the terminal cover plate, and incorrect configuration can cause the input signal to be unrecognizable.

Analog input configuration:

The V1 terminal can accept 0~10V or -10~10V signals, and the mode can be selected through parameter Frq (A104).

The I terminal receives a 0-20mA signal and has an internal sampling resistor of 250 Ω.

The VR terminal provides a 12V/100mA power supply and can be connected to an external 1-5k Ω potentiometer for frequency setting.

For the detection of 4-20mA signal loss, it is necessary to set I16 (A410) to 1 or 2 and select the fault response behavior in I62 (continue running, free stop, slow down stop, or run at a preset frequency).

Typical definition of multifunctional terminal:

Factory default P1=Fx (forward rotation), P2=Rx (reverse rotation), P3=Jog, P4~P6 for multi-stage low/medium/high speed, P7/P8 for multi-stage acceleration and deceleration selection. In practical applications, it is often modified to:

External fault input (18 or 19): Emergency stop is achieved through normally open/normally closed contacts.

Speed up/down (UP/DOWN): achieve stepless adjustment, combined with F63 to save power-off memory.

Second motor selection (12): Switch between different motor parameter groups (H81~H90).

The function of each terminal can be independently set through I17~I24, and they can be different from each other.

Core parameter analysis and debugging pitfalls

The parameters of SV-iG5A are divided into four groups: DRV (driver group), FU1 (function 1 group), FU2 (function 2 group), and I/O group. Keyboard operation supports inter group jump and direct parameter number jump, proficient mastery can greatly shorten debugging time.
