Document Overview

This manual is the official guidance document for the Tektronix TBS1000B (General Edition) and TBS1000B-EDU (Education Edition) series of digital storage oscilloscopes, covering the entire process of product safety operation to advanced functional applications. It is suitable for engineers, technicians, and teachers and students in educational settings. The manual has a clear structure and includes modules such as safety information, basic operations, core functions, application cases, performance parameters, and probe information. At the same time, through tables, diagrams, and step-by-step instructions, it reduces operational complexity and ensures that users can quickly master the use and maintenance of the oscilloscope.

Product model and core parameters

1. Model classification and key parameters

Applicable scenarios for model bandwidth sampling rate

TBS1032B 30MHz 500MS/s Basic Low Frequency Measurement (North America/Europe only)

TBS1052B/TBS1052B-EDU 50MHz 1GS/s Universal Low Frequency Testing and Educational Experiment

Analysis of Low Frequency Signals in TBS1072B/TBS1072B-EDU 70MHz 1GS/s

TBS1102B/TBS1102B-EDU 100MHz 2GS/s High Frequency Digital Signal Test

TBS1152B/TBS1152B-EDU 150MHz 2GS/s High Speed Serial Signal Analysis

TBS1202B/TBS1202B-EDU 200MHz 2GS/s ultra high speed signal (such as DDR memory) testing

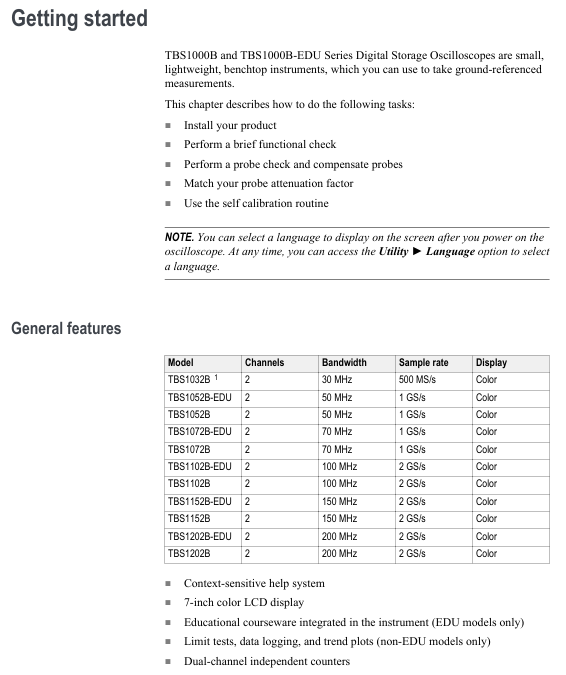

2. General core features

Channel configuration: 2 analog channels, supporting simultaneous measurement of 2 signals

Record length: fixed 2500 points/channel to ensure complete signal details

Display screen: 7-inch color LCD, supporting vector/dot display mode

Measurement function: 34 types of automatic measurement, cursor measurement, FFT spectrum analysis

Storage interface: front USB flash drive port (supporting ≤ 64GB), rear USB device port (connected to PC/GPIB)

Language support: 11 languages (including Chinese, English, Japanese, Korean, Russian, etc.)

Safety operation standards

1. Electrical safety

Grounding requirements: A 3-pin power cord must be used, and the grounding conductor must be connected to the ground. It is forbidden to disconnect the grounding

Voltage limitation: The maximum voltage of the input channel is 300V RMS CAT II, and when it exceeds 100kHz, it attenuates by 20dB/tenfold

Probe safety: When using TPP series probes, fingers should be placed behind a protective barrier and touching the metal parts of the probe is prohibited

2. Operation taboos

Prohibited from use in damp/explosive environments, avoid liquid spraying equipment

It is prohibited to dismantle the equipment casing as high internal voltage may cause electric shock

When connecting/disconnecting the probe, the signal source should be disconnected first to avoid arc damage

Basic operation process

1. Equipment installation and functional inspection

Power connection: Connect to a 90-264VAC/45-66Hz power supply, with a maximum power consumption of 30W

Secure fixation: Fix equipment through safety lock holes or cable channels to prevent slipping

Functional check:

Press' Default Setup 'to restore factory settings

Connect the probe to CH1, and connect the probe tip to the PROBE COMP terminal（ 5V@1kHz Square wave

Press [Autoset], the screen should display a stable square wave, and the calibration status should be "PASSED"

2. Probe operation

Manual compensation:

Probe connected to CH1, set attenuation to 10X

Connect the probe tip to [PROBE COMP] and press [Autoset]

Adjust the probe compensation hole to make the square wave edge straight (to avoid overcompensation/undercompensation)

Attenuation setting: default 10X, P2220 probe supports 1X/10X switching (bandwidth limited to 6MHz at 1X)

Current probe: The scaling ratio needs to be manually set (default 10A/V) to ensure accurate readings

3. Self calibration and firmware updates

Self calibration:

Trigger condition: If the environmental temperature difference exceeds 5 ℃ or once a week, preheating for 20 minutes is required

Operation steps: Disconnect all probes → 【 Utility 】 → 【 Do Self Cal 】 → Follow the prompts to complete (about 2 minutes)

Firmware update:

Download the latest firmware from the official website (www.tektronix. com/software)

Copy to the root directory of the USB flash drive and insert the oscilloscope

[Utility] → [File Utilities] → [Update Firmware] → Wait for completion

Core System and Control

1. Vertical Controls

Coupling method:

DC: Transmitting AC+DC signals, suitable for measuring signals with DC offset

AC: Block DC components, suitable for observing AC signals

GND: Disconnect input, display 0V line, used for calibrating ground reference

Bandwidth limit: 20MHz bandwidth limit can be selected to reduce high-frequency noise

Voltage/grid adjustment: Range 2mV-5V/div, supports coarse adjustment (1-2-5 sequence)/fine adjustment (small step size)

2. Horizontal Controls

Time base range:

30MHz model: 10ns-50s/div

50/70MHz model: 5ns-50s/div

100/150/200MHz model: 2.5ns-50s/div

Scanning mode: automatically turned on when the time base is ≥ 100ms/div and the trigger mode is "Auto", and the waveform scrolls from left to right
