UniOP eTOP306 Industrial Touch Screen

2. Data collection and trend analysis

ETOP306 supports real-time data collection and historical trend recording. Users can configure the sampling period, storage depth, and triggering conditions in Designer. Trend data can be transmitted to the central server via Ethernet or exported to a USB drive through a USB interface, providing a basis for subsequent statistical analysis and fault diagnosis.

3. Alarm and Event Management

The system supports up to 1024 alarm records, including real-time alarms and historical alarm lists. Alarm information can be color coded and sound prompted based on priority, and can be printed out or forwarded to the upper computer. The event log function can record key information such as user operations and system status changes, meeting the traceability requirements of ISO quality management system.

4. Recipe and Data Management

The recipe function allows users to store and call multiple sets of process parameters, suitable for batch production or equipment changeover scenarios. Formula data can be imported and exported through Ethernet or USB interfaces, making it easy to copy or backup between different devices.

Network and remote access capability

1. UniNet distributed network

UniNet is Exor's proprietary Ethernet based HMI interconnect protocol. Through UniNet, multiple eTOP306s can share variable, alarm, and event information to build a distributed monitoring system. The upper layer can also integrate with SCADA or MES systems through UniNet OPC Server to achieve enterprise level data connectivity.

2. Remote maintenance and monitoring

With the Ethernet interface, technicians can remotely access eTOP306 on the office network or even the Internet to achieve program update, fault diagnosis and data monitoring. This is particularly useful for devices distributed across multiple locations, as it can significantly reduce on-site travel costs.

Installation and Mechanical Design

1. Appearance and opening size

ETOP306 adopts an ultra-thin design, with a total thickness controlled within 50mm, suitable for installation in control cabinets with limited depth. The front panel offers three options: white, silver, and black, to meet the appearance needs of different industrial equipment.

2. Protection and sealing

The front panel meets the IP65 protection level and can effectively prevent dust and water spray. Special sealing strips should be used during installation to ensure a tight fit with the cabinet. The back interface area adopts a protective cover design to prevent accidental contact and dust intrusion.

3. Install accessories

Exor provides a dedicated disposable protective film (model: X-TK-FP01) suitable for 5.7-inch and 7-inch touch screens, which can effectively prevent scratches and contamination during on-site construction. There is also a UV enhanced protective film (model: X-TK-FP02), suitable for outdoor or strong light environments.

Application scenario analysis

1. Factory automation

In equipment such as assembly lines, packaging machinery, and plastic machinery, eTOP306 can serve as a local operation panel to achieve parameter settings, status monitoring, and fault display. Its rich communication driver library ensures fast connection with various PLCs and controllers.

2. Building automation

Used for HVAC, lighting control, energy monitoring and other systems, the graphical interface of eTOP306 can intuitively display floor plans, equipment status and environmental parameters. Ethernet interface supports integration with building management systems.

3. Environmental monitoring and infrastructure

In water treatment, pump stations, power distribution and other occasions, eTOP306 can be used as a local display unit to collect sensor data and upload it to the central monitoring room. Its wide temperature range and anti-interference ability ensure stable operation in harsh environments.

4. Mobile or in car applications

Due to its compact size and support for wide temperature operation, eTOP306 can also be used as a human-machine interaction interface for mobile devices such as agricultural machinery and construction vehicles, replacing traditional instrument panels and switch panels.

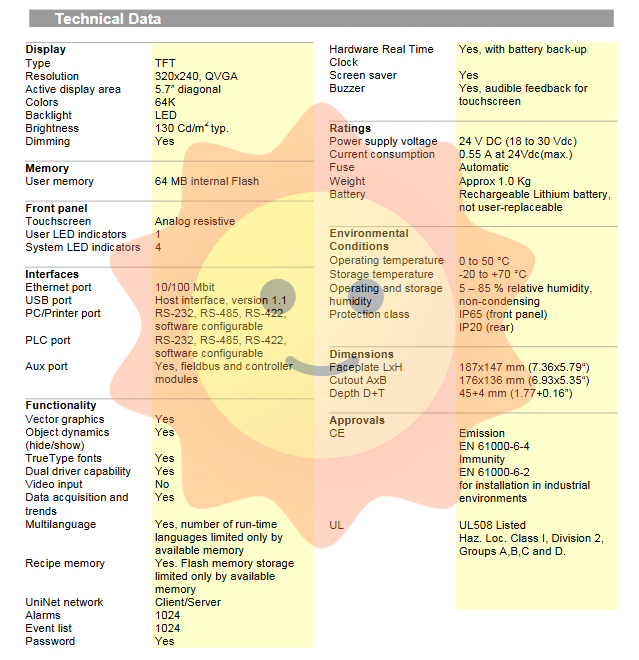

Summary of Technical Specifications

Project Parameters

5.7-inch TFT color display screen

Resolution 320 x 240 pixels (QVGA)

Color 64K

Backlight LED

Touch screen resistive

User memory 64 MB

Ethernet interface 10/100 Mbps

USB interface Host x1

Expansion slot supports TCM/SCM modules

Power supply 24 VDC

Working temperature: 0~+50 ℃

Protection level IP65 (front panel)

Installation depth<50 mm
