Complete Guide for On site Maintenance and Troubleshooting of ZF ClearCommand 9000 Series Ship Propulsion Control System

Adjust maximum pressure (L3):

Maintain drag mode and continue pushing forward.

Adjust the L3 value to make the shaft speed 70-80% of the idle shaft speed.

Attention: The temperature of the gear oil must reach 60 ° C or above for accurate calibration.

Troubleshooting of power system and grounding faults

The ClearCommand system is sensitive to power quality and grounding electrodes. The following are the most commonly overlooked issues:

8.1 Voltage Drop

The minimum operating voltage of the processor is 8VDC, but it is recommended not to be lower than 10VDC under any operating conditions.

When starting the engine, the high current of the starter motor may cause the processor voltage to drop instantly, leading to system reset and slow repetitive sounds.

Solution: Use an automatic power selector (APS) to draw power from two independent batteries, or provide dedicated batteries separately for the control system.

8.2 Grounding (grounding) requirements

The grounding resistance must be less than 100 Ω, and a wire of no less than 2mm ² should be used.

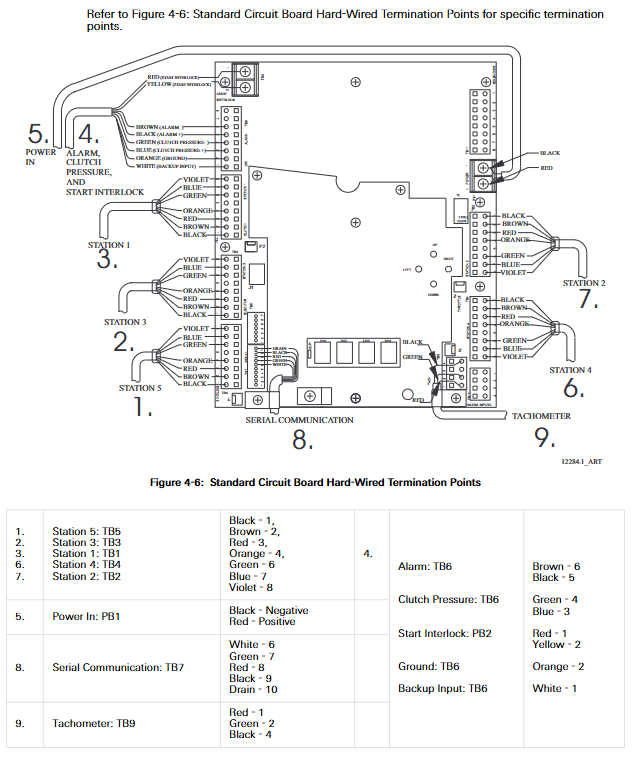

The fourth mounting hole on the processor casing needs to be connected to the ship's grounding bus.

The shielding layer of serial communication cables is only grounded at one end (usually at the port processor end), and grounding at both ends can introduce ground loop interference.

8.3 APS automatic power selector

The voltage drop of model 13505 APS is 0.7VDC (50% load). When calculating the allowable pressure drop, the following must be taken into account:

12V system: Battery 12.6V -10% voltage drop (1.26V) -0.7V (APS)=10.64V (minimum allowable value)

Suggestions for essential tools and spare parts on site

9.1 Recommended Testing Tools

Tool model and purpose

On site test box (Break out Box) 13927 measures throttle signal, clutch current, and drag current online without interrupting the original connection

Digital multimeter Fluke 80 series or equivalent for measuring voltage, current, frequency, duty cycle, resistance

Measuring shaft speed during handheld drag calibration of shaft tachometer

The anti-static wristband is provided with the processor and must be worn when opening the processor cover

9.2 Regular inspection cycle

Project cycle content

Check the console terminals for corrosion and looseness every year, and apply polytetrafluoroethylene grease

Check all plugs and terminals of the processor terminals annually for looseness and corrosion

Check the push-pull cable annually for any jamming and whether the bending radius is too small

Check the electrolyte level and terminal cleanliness of the battery every quarter

Battery load testing is performed annually by professional electricians for performance load testing

Install the sealing gasket and check for aging and cracking every year. Replace it if necessary

Difficult problem handling without error codes

Some faults may not trigger error codes, but they can affect system performance. The following are typical scenarios:

10.1 There is no sound from a certain console

Reason: The black wire (audio+) is not properly connected to console terminal 1 and processor terminal 8.

Verification: Measure the AC voltage between console terminals 1 and 3, which should be 20-25VAC. If there is no voltage, check the circuit; If there is voltage, replace the sound transducer inside the console.

10.2 The red light on the console is not on (but other functions are normal)

Reason: Brown wire (LED+) open circuit.

Verification: Measure the DC voltage between terminals 2 and 3. When the red light is on, it should be approximately 2.2VDC. If 4.0VDC is measured, it indicates that the LED circuit is open and the console needs to be replaced.

10.3 Warm up mode can only be obtained in reverse direction

Reason: The direction detection of the joystick is incorrect, usually due to the color exchange of the wiring between terminals 5 and 7.

Inspection: Terminal 5 of the starboard console should have a yellow wire, and terminal 7 should have a blue wire; Terminal 5 of the port console should have a blue wire, and terminal 7 should have a yellow wire.
