The Role of Analog Outputs in Distributed Control

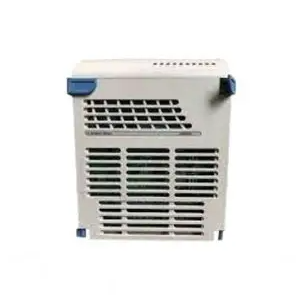

The WESTINGHOUSE 5X00226G03 is a critical Analog Output (AO) component within the Emerson Ovation Distributed Control System (DCS). In the hierarchy of industrial automation, if the controller is the brain, the AO module acts as the nervous system's motor pathway, sending precise electrical instructions to the mechanical elements of the plant. The 5X00226G03 is engineered to facilitate this vital link, ensuring that digital logic is translated into accurate physical movement—whether that involves modulating a high-pressure steam valve or adjusting the speed of a cooling water pump.

Technical Specifications and Architectural Excellence

The architecture of the 5X00226G03 focuses on maintaining signal linearity and minimizing drift over long-term operation. By utilizing high-resolution Digital-to-Analog Converters (DAC), the module ensures that the final control elements receive a signal that exactly matches the intent of the control algorithm.

• Brand / Series: Westinghouse / Emerson Ovation

• Model Identification: 5X00226G03

• Module Type: Analog Output (AO) Module

• Signal Standard: Optimized for 4-20mA current loops and voltage-based signaling.

• Isolation: Robust channel-to-logic galvanic isolation to prevent ground loop interference.

• Integration: Seamless fit for standard Ovation I/O branches and base units.

Key Features of the 5X00226G03 Module

The WESTINGHOUSE 5X00226G03 distinguishes itself through a combination of hardware ruggedness and intelligent diagnostics, tailored for the "zero-downtime" requirements of modern utilities.

High-Fidelity Signal Transmission

In power plant applications, precision is non-negotiable. The 5X00226G03 features low-noise circuitry that prevents signal jitter, ensuring that actuators remain stable even in environments characterized by high electromagnetic interference (EMI). This stability is essential for the longevity of mechanical equipment, as it prevents unnecessary "hunting" or oscillation of control valves.

Advanced Fault Monitoring and Diagnostics

Reliability is enhanced by the module's ability to perform continuous self-checks. The 1C31227G02 / 5X00226 series modules monitor the integrity of the output loop. If a field-side wire is disconnected or if the internal circuitry deviates from its calibrated parameters, the module instantly alerts the DCS. This allows maintenance teams to identify and resolve issues before they can impact plant production or safety.

Thermal and Mechanical Resilience

Industrial control cabinets often experience significant heat loads. The 5X00226G03 is built with high-grade industrial components rated for extended temperature ranges. Its physical design encourages efficient heat dissipation, ensuring that the module maintains its accuracy and reliability throughout its operational lifecycle, even in densely packed enclosures.

Strategic Industrial Applications

The WESTINGHOUSE 5X00226G03 is a versatile solution utilized in sectors where high-availability control is a priority:

• Power Generation: Controlling feed-water regulation valves, turbine governors, and fuel-to-air ratio actuators.

• Water Treatment: Managing variable speed drives for pumps and chemical dosing systems in large-scale filtration.

• Petrochemical Processing: Precise modulation of flow control valves in refinery and pipeline operations.

• Metals and Mining: Interfacing with heavy-duty hydraulic and pneumatic actuators in smelting and processing plants.

Implementation and Maintenance

The 5X00226G03 is designed for rapid integration and ease of maintenance. It supports the Ovation system's hot-swap capability, which allows technicians to replace a module without powering down the entire I/O rack. This is a critical feature for continuous process industries where shutting down a controller is not an option.

Configuration is handled via the Ovation software environment, providing engineers with a streamlined interface for setting output ranges and diagnostic thresholds. The front-panel LED indicators provide an immediate visual status of the module's power health, communication link, and individual channel states, making field troubleshooting highly efficient. By maintaining the 5X00226G03 within the control architecture, facilities benefit from a proven technology that balances legacy compatibility with modern performance standards.

Conclusion

In summary, the WESTINGHOUSE 5X00226G03 Ovation Analog Output Module is a premier choice for high-precision process control. By combining advanced signal conversion technology with rugged industrial hardening and proactive diagnostics, it provides the essential stability required for today's most demanding automation tasks. For organizations looking to optimize their Emerson Ovation systems, the 5X00226G03 represents a reliable, high-performance solution that ensures safe, accurate, and efficient plant operations.
