Siemens 6AV6645-0CB01-0AX0 SIMATIC MOBILE PANEL 277 Mobile Panel

Temperature range - Operating temperature: 0~+40 ℃ (suitable for most industrial workshop environments);

-Storage/transportation temperature: -20~+60 ℃, suitable for logistics and warehousing needs

Protection level: IP65 (dustproof, waterproof, suitable for use in humid and dusty industrial sites)

Drop resistance: Drop height of 1.2 meters (non packaged state, not easily damaged by accidental drop, improving on-site durability)

Maximum relative humidity tolerance of 80% (without condensation), suitable for high humidity environments (such as food processing and water treatment workshops)

2. Safety and compliance certification

Compliance category specific certification

Safety level - compliant with EN ISO 13849-1:2008 standard, performance level PL d (meeting industrial safety control requirements);

-Safety category complies with EN954-1 (for emergency stop and enable buttons)

International certifications CE (EU Access), cULus (US Canada Access), C-TICK (Australia Access), SIBE (German Safety Certification), supporting global use in multiple regions

Software functions and configuration features

1. Core software functions

Specific specifications for functional categories

Monitoring and Alarm - Supports 4000 alarm messages (including bit alarms and analog alarms), with 32 alarm levels;

-Equipped with an alarm log system (including caching and confirmation functions), capable of recording alarm time, type, parameters, and supporting 99 confirmation groups

Formula management - supports 300 formulas, each containing 500 data records, with 1000 entries per record;

-Formula storage: 64KB integrated Flash, expandable through MMC/SD card

Data archiving - supports 20 archive files, with a maximum of 10000 records per archive;

-Archive types: alarm archive, process value archive;

-Storage format: CSV (convenient for offline analysis using software such as Excel)

Variable management - supports 2048 device variables, with a maximum of 200 variables per screen;

-Support initial and limit value settings for variables, support Structs and date time types

2. Configuration and maintenance

Specific specifications of configuration features

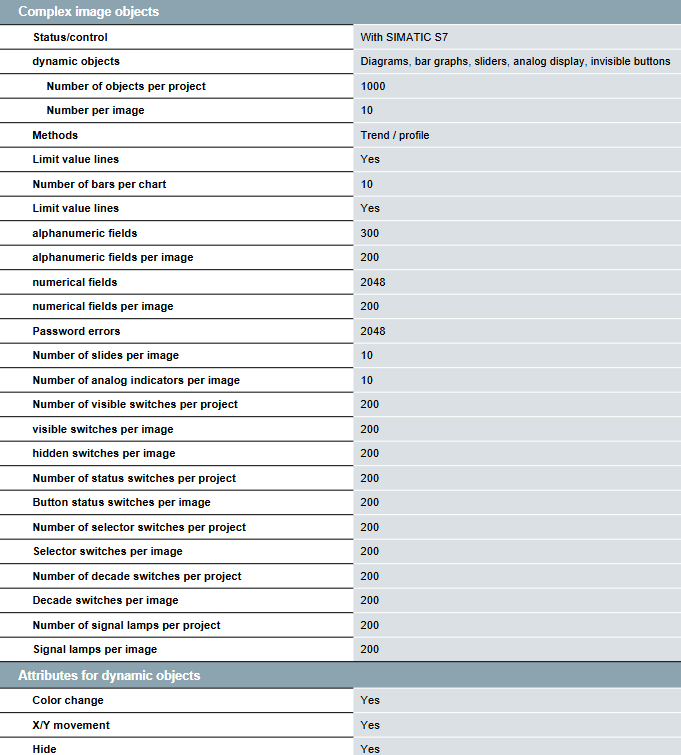

Interface design - supports 500 configurable screens and dynamic objects (such as trend charts, bar charts, sliders);

-Supports 16 online running languages and 32 project languages, suitable for multilingual workshops

Data transmission - Configure transmission methods: MPI/PROFIBUS DP, USB, Ethernet, supporting automatic transmission recognition;

-Support Delta transfer to reduce configuration update time

The maintenance tool supports functions such as screen cleaning, touch calibration, backup/restore, device switching, etc., simplifying on-site maintenance

Physics and other parameters

Specific specifications of physical parameters

Size and weight - shell diameter: 290mm, depth: 103mm (circular design, easy to hold and install);

-Weight (unpackaged): 1.7kg, with good portability

The power supply is provided through a connection box (which needs to be paired with a Siemens dedicated connection box to ensure stable and safe power supply)

Warranty and Support - Warranty Period: 1 year;

-Support free hotline service and provide technical support
