The ABB ACS550 series universal frequency converter is widely used in industrial speed control applications such as fans, water pumps, and conveyor belts due to its flexible I/O configuration, built-in PID control, pump/fan specific macro (PFC), and powerful fieldbus support. However, the on-site environment is complex, and incorrect wiring, mismatched motor parameters, and improper load conditions can all cause the frequency converter to trip or operate abnormally. This article is based on the ACS550 technical manual, extracting the most common fault phenomena encountered on site, the causes of alarm codes, and systematic troubleshooting steps, aiming to provide a practical fault diagnosis guide for automation engineers and maintenance personnel.

Whether you are debugging an ACS550 for the first time or facing a sudden "OVERRENT" alarm that requires urgent handling, this article will help you quickly locate the problem and safely restore system operation.

Hidden danger elimination during installation and wiring stage

Before powering on, wiring errors are often the primary cause of damage or inability to operate the frequency converter. ACS550 has two types of enclosures, IP21/UL 1 and IP54/UL 12. The wiring methods are divided into cable entry and conduit entry, but the following commonalities must be strictly followed.

1.1 Main circuit wiring

Power input: three-phase 208~240 V driver connected to L1/R, L2/S, L3/T; When supplying single-phase power (limited to 208-240 V series only), connect to L1/L and L2/N, and the output current needs to be reduced by 50%. The 380~480 V and 500~600 V series only support three-phase input.

Motor output: U2, V2, W2 must be connected to the U, V, W of the motor. Incorrect phase sequence can cause the motor to reverse. Do not connect the power cord to the output terminal, otherwise the frequency converter will be immediately damaged.

Grounding: The PE terminal must be reliably grounded with a wire diameter not less than the power line. In IT systems (ungrounded or high impedance grounded) and corner grounded TN systems, the internal EMC filter must be disconnected (by removing or replacing screws EM1, EM3, F1, F2), otherwise the filter capacitor will connect the system to ground capacitor, causing danger or damage to the frequency converter.

Braking resistor: R1 and R2 frames have built-in braking choppers, and the braking resistor is connected to BRK+and BRK -. The R3~R6 framework does not have a built-in chopper and requires an external brake unit to be connected to the UDC+and UDC - terminals. It is strictly prohibited to connect the braking resistor between other terminals, otherwise it may cause a fire.

1.2 Control terminal wiring

The control terminal X1 of ACS550 provides:

Analog inputs: AI1 (default frequency set to 0~10 V or 0~20 mA, selected through J1 jumper), AI2 (default not used). Both AI1 and AI2 can be configured as voltage or current, and the minimum/maximum values and filtering time can be set through parameter settings.

Digital inputs: DI1~DI6, default DI1=start/stop, DI2=forward/reverse, DI3/DI4=multi-stage speed selection, DI5=acceleration/deceleration ramp selection. The function can be redefined through parameters such as E01~E03. The common end DCOM can be set to SINK (NPN) or SOURCE (PNP) mode through internal jumpers.

Analog output: AO1 (default output frequency 0-20 mA), AO2 (default output current 0-20 mA), can be configured as other signals.

Relay output: RO1~RO3, default RO1=Ready, RO2=Running, RO3=Fault (-1). Action conditions can be modified through parameters.

Common wiring errors:

The simulated input signal did not use shielded twisted pair cables, resulting in frequency fluctuations or AI LOSS alarms.

When using a 24V external power supply for digital input,+24V was not connected to DCOM (SINK mode) or PLC (SOURCE mode), resulting in invalid input.

The EMC filter screw was not disconnected in the IT system, and after power on, the inverter casing had voltage to ground, even damaging the rectifier bridge.

Parameter setting and motor recognition before startup

2.1 Motor nameplate data input (Group 99)

Before starting ACS550, the following parameters must be set according to the motor nameplate (values must be exactly consistent with the nameplate):

Typical values for parameter description

9905 motor rated voltage 400 V (400 V series)

The rated current of 9906 motor refers to the nameplate, with a range of 0.2~2.0 × I2hd

9907 motor rated frequency 50 Hz or 60 Hz

9908 motor rated speed, such as 1460 rpm

The rated power unit of 9909 motor is kW or hp (depending on the region)

9904 motor control mode 1=VECTOR: SPEED (vector speed, recommended)

2=VECTOR: TORQ (Vector Torque)

3=SCALAR: FREQ (scalar frequency, used for multiple motors or testing)

Special note: If 9908 is set to 1500 rpm and the nameplate is set to 1460 rpm, it will result in incorrect speed display and ineffective slip compensation.

2.2 ID Run (motor self-learning)

For vector control mode (9904=1 or 2), it is recommended to perform ID Run (9910=1) to achieve optimal zero speed torque and speed accuracy. When running the ID, the motor will accelerate to about 50-80% of the rated speed (in the forward direction), and the load must be disconnected first to ensure safety. If the load cannot be rotated, OFF/IDMANG (9910=0) can be selected, and the frequency converter will perform zero speed magnetization (10-15 seconds) during the first start-up without rotating the motor.

Common reasons for ID Run failure (fault code 11):

There is a phase loss or incorrect connection between the motor and the frequency converter.

The rated current, voltage, and power settings of the motor deviate significantly from the actual values.

The motor cable is too long (>50 m) and no output filter is added, resulting in measurement interference.

Solution: Check the wiring, recheck the parameters, shorten the cable or install an output reactor, and perform ID Run again.

2.3 Selection of Application Macros

I/O functions can be quickly configured through 9902:

1 ABB Standard: 2-line start stop, AI1 given, DI3/4 multi speed, DI5 switching ramp.

2 3-WIRE: Three wire start stop (pulse start/stop), suitable for button control.

3 ALTERNATE: Alternating forward and reverse control.

4 MOTOR POT: Use digital inputs DI3/DI4 to accelerate/decelerate the electric potentiometer.

5 HAND/AUTO: manual/automatic switching, usually used for HVAC.

6 PID Control: Closed loop PID control (pressure, flow, etc.).

7 PFC Control: Pump/Fan Control (with multiple auxiliary pumps rotating).

8 TORQUE CTRL: Torque control mode.

Choosing the wrong macro can result in I/O functionality not meeting expectations, for example, when selecting "HAND/AUTO", even if there is a running command, the motor will not rotate because EXT1/EXT2 selection signals are required. It is recommended to set it to "ABB Standard" during the first debugging, and then customize it after getting familiar with it.

Detailed explanation and handling methods of common alarm codes

When ACS550 detects an abnormality, the control panel will display an alarm (green flashing) or a fault (red constantly on). The fault will stop outputting and latch, and needs to be reset. The following are the most frequently occurring fault codes on site and their solution steps.

3.1 Fault 1- Overcurrent

Possible reasons:

The acceleration time (2202) is too short and the starting current is too high.

Motor cable short circuit or grounding.

The torque boost (F09) is too high, causing the motor to overheat.

The mechanical brake does not open or the load suddenly increases.

Troubleshooting steps:

Disconnect the output of the frequency converter and measure the resistance of U2-V2, V2-W2, and W2-U2. If it is 0 Ω, there is a short circuit.

Measure the relative ground insulation with a 500V megohmmeter, which should be>1 M Ω (new motor>100 M Ω).

Check the fault records (parameters 0401, 0404~0407) and confirm whether the current value at the moment of the fault exceeds the rated value of the frequency converter.

Gradually reduce F09 (e.g. from 8% to 4%) and observe if there is any improvement.

Extend the acceleration time (set to 10~30 seconds in 2202).

If the load inertia is large, enable instantaneous overcurrent limitation (H12=1).

3.2 Fault 2- DC Overvoltage

Possible reasons:

The deceleration time (2203) is too short, and there is too much regenerative energy feedback from the motor.

The power supply voltage exceeds the rated value by 10%.

Unrenected braking resistor or resistor resistance too high (R1/R2 frame).

handle:

Extend the deceleration time (set to 15-60 seconds for 2203).

Enable the overvoltage controller (2005=1, default enabled), which will automatically extend the deceleration time to limit the bus voltage.

For applications that require quick parking, install brake resistors and correctly set F50 and F51.

Measure the input voltage. If it is higher than 264 V (208-240 V series) or 528 V (380-480 V series), adjust the transformer tap or contact the power supply department.

3.3 Fault 6- DC Undervoltage

Possible reasons:

Input power phase loss, fuse failure, low voltage.

The internal charging relay of the frequency converter is not engaged (commonly seen in high-power R5/R6 frames).

handle:

Measure whether the input three-phase voltage is balanced and>85% of the rated value.

Check the input fuses (see manual pages 282-283 for Fuses table).

If the circuit trips at the moment of startup, check if the main circuit contactor is disconnected in advance.

Parameter 2006 can be set to 1 (undervoltage controller enabled) to prevent false alarms during light loads.

3.4 Fault 7- AI1 LOSS/Fault 8- AI2 LOSS (loss of analog signal)

Trigger condition: The simulated input signal is below the limit set by parameter 3021 (AI1) or 3022 (AI2) and continues for a period of time (in the response mode defined by 3001).

handle:

Check if the signal source (PLC, potentiometer, sensor) is supplying power normally.

Measure the voltage between AI1 (terminal 2) and AGND (terminal 3) with a multimeter, which should be between 0 and 10 V (or a 100 Ω resistor should be connected in series to measure the voltage between 0 and 20 mA).

Confirm that the J1 jumper position is consistent with the actual signal type (voltage OFF, current ON).

If the on-site interference is severe, increase the filtering time (1303 or 1306), or short-circuit unused AI terminals to avoid floating signals.

According to the process requirements, set 3001 to 1 (FAULT, shutdown alarm) or 2 (ALARM, only alarm to continue operation).

3.5 Fault 9- MOT OVERTEMP (motor overheating)

Possible reasons:

The motor is overloaded for a long time.

The parameters of the electronic thermal protection model do not match (F10, F11, F12).

The wiring of the motor temperature sensor (PTC or PT100) is incorrect or damaged.

handle:

Check if the output current exceeds the rated value of the motor (check through parameter 0104).

Verify that F11 (overload detection level) should be equal to the motor nameplate current, and F12 (thermal time constant) should be set to 5 minutes for standard motors.

If the motor is equipped with a PTC sensor, select 4 (PTC) through parameter 3501 and connect it to AI1 or AI2. Note: PTC requires excitation current provided by AO1 or AO2 (parameter 1501=99 or 100).

If the actual motor temperature is not high, the protection can be temporarily blocked (F11=0.00), but it must be ensured that there is an external thermal relay.

3.6 Fault 10- PANEL LOSS (Control Panel Lost)

Reason: Communication interruption in the control panel, and the current control position is either local (LOC) or remote (REM), but the start stop/given source is from the panel.

handle:

Re plug and unplug the panel, and check if the RJ-45 cable is broken.

If using a remote panel, confirm that the cable length does not exceed 3 meters (EMC test length), as it is susceptible to interference if it is too long.

The actions after panel loss can be set through parameter 3002: 1=FAULT, 2=CONST SP7 (running at 1208 speed), and 3=Last SPEED (maintaining the last speed). For unmanned situations, it is recommended to set it to 2 or 3.

3.7 Fault 16- Earth Fault

Reason: The frequency converter has detected excessive ground leakage current in the motor or cable (including detection during operation and shutdown).

handle:

Check the insulation of the motor cable and eliminate any damage or water ingress.

If it is confirmed that the false alarm is caused by capacitive leakage of a long cable (>100 m), the detection sensitivity can be reduced by setting 3028=3 (HIGH) or directly disabling ground fault detection (3017=0). However, please note that disabling it may violate the warranty terms.

For the case where there is an EMI filter connected to the output terminal of the frequency converter, the leakage current will increase, and it may be considered to remove the output side filter.

3.8 Other common alarms

2001 OVECURRENT: Current limit controller activated (non faulty). Usually caused by load fluctuations or rapid acceleration. If it occurs frequently, extend the acceleration time or reduce the load.

2002 OVERVOLTAGE: Overvoltage controller activation, usually caused by too fast deceleration or grid harmonics. Extend deceleration time or install braking resistors.

2003 undervoltage controller activated. Check the power supply voltage.

2008 PANEL LOSS: Panel loss alarm (non fault), if configured in alarm mode, the frequency converter can still operate but attention should be paid.

2010 MOTOR TEMP: Motor temperature alarm (approaching fault threshold). Check the load and cooling.

Key points for setting key parameter groups

4.1 Limiting and Acceleration/Deceleration (Group 20&22)

2001 MINIMUM SPEED: Minimum RPM (can be positive or negative). If set to 0 rpm, reversal is not allowed.

2002 MAXIMUM SPEED: Maximum RPM.

2003 MAX CURRENT: Maximum output current limit (% of I2hd). Usually set at 150-200%.

2202 ACCELER TIME 1/2203 DECELER TIME 1: Acceleration and deceleration time. For square torque loads (fans, pumps), it is recommended to wait for 20~60 seconds; For constant torque loads, 5-20 seconds.

2204 RAMP SHAPE 1: Set 0 as a linear slope; If set to non-zero, it is an S-curve used for smooth start stop.

4.2 Digital Input/Output Redefine (Group 10/14/15)

By modifying parameters such as E01 (DI1 function), digital inputs can be assigned to multiple functions, such as:

9=THR (External Fault)

10=JOG (Jog)

11=Hz2/Hz1 (switching frequency given source)

12=M2/M1 (switch motor 2 parameters)

The relay outputs (1401~1403) can be set to 1=READY, 2=RUN, 3=FAILT (-1), 35=COMM (controlled by fieldbus), etc.

4.3 PID Control (Group 40)

For applications such as constant pressure water supply and constant flow air supply, set:

4001 GAIN=1.0 (adjusted from small to large)

4002 INTEGRATION TIME = 60 s

4010 SET POINT SEL=1 (given by AI1) or 0 (given by keyboard)

4014 FBK SEL=1 (ACT1, i.e. feedback signal source)

4016 ACT1 INPUT=2 (AI2 as feedback input)

Adjustment method: Gradually increase 4001 until the system oscillates, then decrease to 0.4-0.6 times, then decrease the integration time until it oscillates again, and then increase to 1.15-1.5 times. The feedback signal needs to be stable.

4.4 PFC Pump/Fan Control (Group 81)

PFC mode can automatically start and stop auxiliary motors to maintain constant pressure/flow. Key parameters:

8109 START FREQ 1: First auxiliary machine starting frequency (e.g. 48 Hz)

8112 LOW FREQ 1: First auxiliary machine stop frequency (e.g. 40 Hz)

8115 AUX MOT START D/8116 AUX MOT STOP D: Start stop delay (anti shake)

8117 NR OF AUX MOT: Number of auxiliary machines

8123 PFC ENABLE=1 (activated)

Attention: When enabling PFC, 9904 must be set to 3 (scalar mode), and relay outputs must be assigned to each auxiliary machine (set to 31 for 1401~1403).

Maintenance and lifespan management

5.1 Cooling fan replacement

The expected lifespan of the ACS550 internal fan is approximately 6 years (R1~R4) or 3 years (IP54 internal circulating fan). When the fan noise increases or the frequency converter frequently reports "DEV OVERTEMP", it should be replaced. Fan spare parts can be ordered from ABB. Replacement steps (R1~R4):

Power off and wait for 5 minutes.

Remove the front cover.

Release the fan fixing buckle and pull out the connector.

Install a new fan (note that the airflow direction is upward).

5.2 DC bus capacitor lifespan

The lifespan of capacitors is affected by environmental temperature and operating time. It is recommended to replace it after 9 years of operation (R5/R6) or 10 years (R1~R4). The relative capacitance value (factory 100%) can be viewed through parameter 05.05 (maintenance information of IP21 panel). If it is lower than 85%, replacement should be prepared.

5.3 Control panel battery (Assistant panel only)

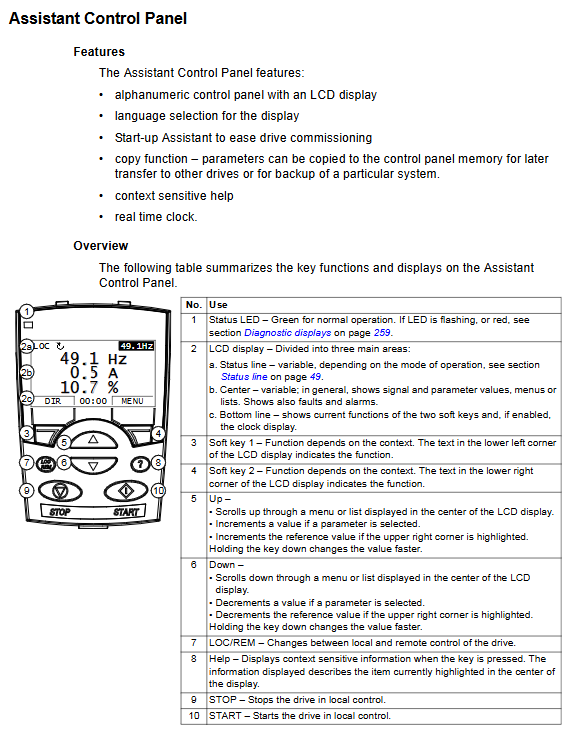

If using an Assistant control panel with a clock (ACS-CP-A, etc.), the battery (CR2032) has a lifespan of approximately 10 years. The depletion of the battery only affects the clock and date recording, and does not affect the drive control function.

5.4 Regular Inspection Checklist

Every 6 months: Check the tightening torque of all terminals; Clean the dust from the heat sink.

Every year: Check if the shielding layer of the control cable is intact; Run ID to verify motor parameters (optional).

Every 3-5 years: Replace the internal fan.

Long term storage (over 1 year): Capacitors need to undergo "aging treatment" (reforming), otherwise powering on may damage the capacitors. Please refer to ABB technical guidelines for specific methods.
