Automate Direct DL06 D0-06DD1 Micro PLC: Complete Guide to Replacing and Troubleshooting Discontinued Controllers

In industrial automation sites, equipment aging and the discontinuation of specialized controllers (such as certain Woodward modules or Honeywell safety system components) are the top challenges faced by engineers. When the original factory no longer supplies spare parts and the equipment still needs to operate for a long time, it is crucial to find a powerful, compatible, and cost-effective alternative solution. The DL06 series micro PLCs from Automation Direct, especially model D0-06DD1, have become a popular choice for replacing outdated controllers due to their compact body, rich I/O capabilities, powerful communication capabilities, and high-speed pulse output. This article will provide you with a complete practical guide from hardware selection, installation and wiring, communication configuration, programming skills to common troubleshooting, to help you smoothly achieve system upgrades.

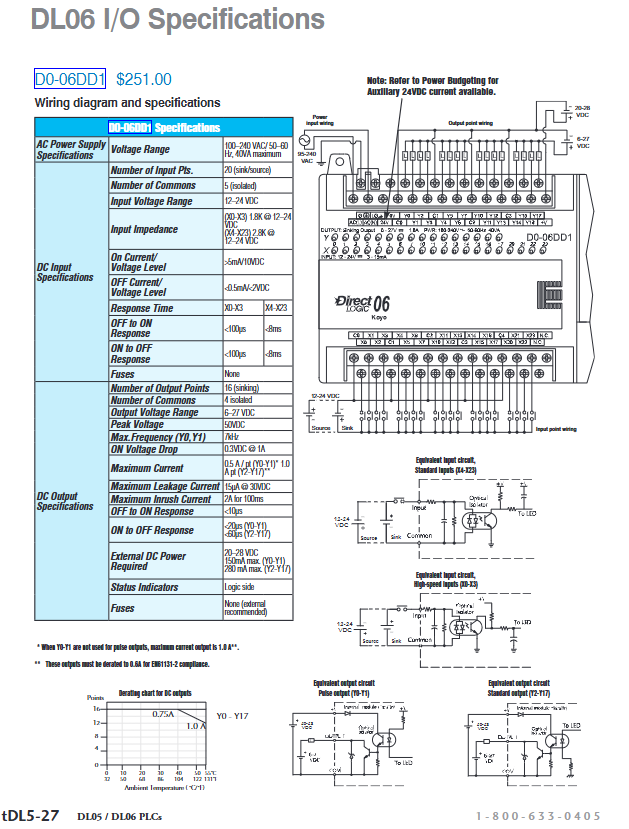

D0-06DD1 Core Specification: Why it is capable of performing replacement tasks

D0-06DD1 is a fully DC PLC in the DL06 family, with built-in 20 point DC input and 16 point DC output, and compatible with sink/source input and sink output. The key parameters are as follows:

Project specifications

Power supply 100-240 VAC, 50/60 Hz, maximum 40VA

Input 20 points (can be divided into 5 public terminals, isolated)

Input voltage range 12-24 VDC

Input impedance X0-X3:1.8k Ω; X4-X23:2.8k Ω

Conductive level>5mA/10VDC

Turn off level<0.5mA/2VDC

Input response time X0-X3:<100 μ s (OFF → ON/ON → OFF); X4-X23：<8ms

Output points 16 (4 common terminals, isolated)

Output voltage range 6-27 VDC

The maximum current at each point is Y0-Y1: 0.5A (for pulse output)/1.0A (for normal output, but needs to be reduced to 0.6A to meet EN61131-2); Y2-Y17：1.0A

Maximum output frequency Y0, Y1: 7kHz (can be used as high-speed pulse output)

ON voltage drop 0.3VDC @ 1A

Leakage current<15 μ A @ 30VDC

Output response OFF → ON<10 μ s; ON→OFF <20μs（Y0-Y1）/ <60μs（Y2-Y17）

External DC power demand 20-28VDC, Y0-Y1 maximum 150mA, Y2-Y17 maximum 280mA

Advantages of Replacement:

High density I/O: 36 built-in I/O points can cover most small control systems, reducing the need for external modules.

High speed input: X0-X3 response time<100 μ s, supports high-speed counting (up to 7kHz) and pulse capture.

High speed output: Y0 and Y1 support 7kHz pulse output, suitable for stepper motor control and proportional valve drive, perfectly replacing Woodward's dedicated pulse control module.

Wide voltage input: 12-24V compatible, can be directly connected to existing sensors.

Installation and wiring: the golden rule to avoid "hidden" faults

1. Mechanical installation requirements

DL06 must be installed vertically (with cable entry facing downwards) and ensure a minimum heat dissipation gap of 38mm (1.5 inches) around it. Secure to the flat panel using M4 or M5 screws. If other equipment is installed inside the cabinet door, it is necessary to ensure that the component closest to DL06 is ≥ 38mm.

Special note: The controller should not be installed in a closed and unventilated space. The outer shell should dissipate heat through natural convection, and the heat from internal electronic components should be promptly dissipated.

2. Key points of electrical wiring

Input wiring

The input common terminal (C) can be connected to 24V+or 0V to achieve source or drain connection.

X0-X3 is a high-speed input channel, it is recommended to use shielded twisted pair cables and separate them from the power line.

Unused input terminals should remain suspended and not be short circuited to the common terminal.

Output wiring

The output of D0-06DD1 is a sinking type, which means that when the output is ON, the output terminal conducts to 0V. One end of the load is connected to the positive power supply, and the other end is connected to the output point.

When Y0 and Y1 are used for high-speed pulse output, the load impedance must meet the following requirements: ≥ 12 Ω at 24V and ≥ 6 Ω at 12V. Otherwise, if the current exceeds 2A, overload protection will be triggered.

Inductive loads (relays, solenoid valves) must be connected in parallel with freewheeling diodes (reverse parallel), otherwise the output transistor will be damaged.

External fuse: It is recommended to connect 1A or 1.5A fast melting fuses in series for each output (fuses are not included in the specifications).

Power supply and grounding

Connect the AC power terminals to L and N, and connect the protective earth (PE).

Connect the external DC power supply (for output) to the V+and COM terminals. Attention: D0-06DD1 itself does not provide 24V auxiliary power supply, and must provide 20-28V/280mA externally (at full load).

All 0V terminals (including input common terminal, output COM, external power negative terminal) should be single point grounded to the control cabinet grounding bar.

Communication Network: Seamless Replacement Bridge

Old systems often use specialized protocols such as Woodward's Modbus RTU or Honeywell's proprietary protocol. DL06 has two built-in serial ports and strong protocol compatibility.
