IFM CR2530 Intelligent Controller: Installation Points and Troubleshooting Practical Guide

In the fields of engineering machinery, special vehicles, and mobile automation, the reliability of the controller, as the "brain" of the system, directly determines the overall performance of the machine. When faced with the discontinuation or insufficient performance of outdated controllers (such as certain specialized modules), how to safely and efficiently replace them and ensure long-term stable operation is the top challenge for many engineers. The CR2530 SmartController launched by ifm is a free programming controller designed specifically for harsh environments, featuring wide temperature operation, high anti vibration, and excellent electromagnetic compatibility. This article will provide a complete engineering practice guide from installation, electrical connection, grounding protection, input/output characteristics to programming and debugging, helping you quickly master the deployment and troubleshooting of the controller.

Product positioning and applicable scenarios

CR2530 belongs to IFM's "Intelligent Controller" series, rated for mobile machinery and distributed applications. Its notable features include:

The working temperature range is wide (see technical data for details) and can withstand environments ranging from -40 ° C to+85 ° C.

The anti vibration level complies with ISO 16750-3 (vehicle body installation position, random vibration).

Built in CANopen master station function, which can easily expand sensors, actuators, and displays.

The CoDeSys V2.3 programming environment supports the IEC 61131-3 standard and allows for free writing of application logic.

Typical replacement scenario:

Replace aging Woodward or Honeywell dedicated controllers (such as those used for engine monitoring and pump control).

Upgrade the existing control system based on relays or dedicated ICs to achieve digital closed-loop control.

Integrate multiple sensors (resistance, frequency, analog) into a unified platform.

Important warning: CR2530 is not suitable for personnel safety related tasks (non safety level controllers). In any situation involving security functions, users must self certify through the corresponding supervisory agency.

Mechanical installation: avoid "hidden" failure

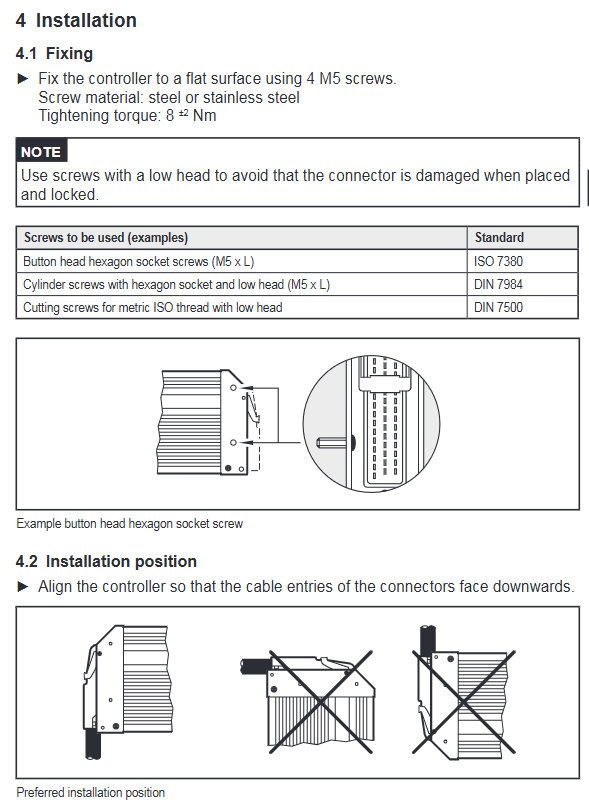

1. Fixed method and torque control

Four M5 mounting holes are provided at the bottom of the controller. Steel or stainless steel screws must be used, and it is recommended to use low head screws (such as ISO 7380 or DIN 7984 low head hexagon socket screws) to prevent interference during connector insertion and removal.

Key parameters:

Tightening torque: 8 ± 2 Nm. Insufficient torque may cause vibration loosening, while excessive torque may crush the housing or cause deformation of the installation surface.

2. Installation direction and heat dissipation

Preferred installation position: The connector outlet is facing downwards. This can prevent condensation or dust from accumulating inside the plug, and also facilitate the natural sagging of the wiring harness.

Heat dissipation requirements:

The heat generated by the electronic components inside the controller is dissipated through the casing. It is necessary to ensure that:

The installation surface should be flat and free of twisting force (if the surface is uneven, compensation shims should be used).

When stacking multiple controllers (sandwich mounting), spacers must be used to maintain air circulation.

Leave enough space around the shell to avoid being covered by insulation materials.

Lesson learned: In a certain case, the user directly fixed the controller on an uneven soldering bracket, causing the PCB to deform under stress and triggering intermittent reset faults. The solution is to add a 3mm thick aluminum plate as a transition base plate.

Electrical Connection: Grounding, Wiring, and Fuse Design

Grounding - the cornerstone of electromagnetic compatibility

The metal casing of CR2530 must be reliably connected to the common ground point (GND) of the vehicle or equipment. M5 threaded holes are reserved on the casing specifically for grounding.

Operation steps:

Use M5 screws (recommended with toothed lock washers) to connect the grounding wire to a clean metal surface.

The grounding wire should be as short and thick as possible to avoid running parallel to the power line for long distances.

Why is it important: In mobile machinery, generators, inverters, motors, etc. can generate strong electromagnetic interference. A good grounding of the casing can provide a low impedance loop for the internal circuit, significantly suppressing common mode noise.

2. Selection of power supply and fuses

The controller requires three independent power inputs, which are used for:

VBB s (Pin 10): Provides power to the internal logic of sensors and modules. Fuse ≤ 2 A.

VBB 1 (Pin 19): Provides power to output group 1 (OUT00~07). Fuse ≤ 15 A.

VBB 2 (Pin 01): Provides power to output group 2 (OUT08~15). Fuse ≤ 15 A.

Special note:

If the device is powered by an onboard battery (12/24 V), there are no special isolation requirements.

If powered by an external power source, a SELV (Safety Extra Low Voltage) power supply must be used, and all signal lines must also comply with the SELV standard (safe isolation from high voltage circuits). If SELV grounding is converted to PELV, the responsibility shall be borne by the user and local installation regulations shall be followed.
