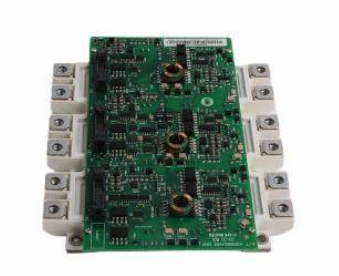

ABB IGBT MODULE KIT FS300R17KE3/AGDR-66C S 64717839

ABB IGBT MODULE KIT FS300R17KE3/AGDR-66C S 64717839

Model and component analysis

1. Core component composition

IGBT module:

Model: FS300R17KE3

Brand/Series: Infineon E3 series, which belongs to high-voltage and high-power IGBT modules.

Function: Used as a power switch for inverters, realizing the conversion of DC to AC electrical energy.

Driver board:

Model: AGDR-66C

Function: Provide gate drive signals for IGBT modules and integrate protection circuits (overcurrent, overheating, short circuit detection).

Product Code: 64717839 (ABB internal material code, used to uniquely identify the kit).

2. Meaning of Model Parameters

FS300R17KE3：

FS: Infineon Standard IGBT Module

300: Rated current 300 A (RMS, RMS)

17: Rated voltage 1700 V

KE3: E3 technology platform, low loss design

AGDR-66C：

AGDR: ABB Driver Board Series

66: Driver version compatible with high voltage level IGBT

C: Coated board (suitable for harsh environments, enhancing corrosion resistance)

Technical parameters

1. IGBT module (FS300R17KE3)

Electrical parameters:

Rated voltage (Vces): 1700 V

Rated current (Ic, RMS): 300 A

Pulse current (Icm): 600 A (10ms pulse width)

Saturation voltage drop (Vce (sat)): Typical value 2.1 V (@ Ic=300 A, Tj=25 ° C)

Switching frequency: up to 20 kHz (depending on heat dissipation conditions)

Mechanical characteristics:

Package: Press Fit, supports direct soldering or plug-in installation

Size: Approximately 121 mm x 44 mm x 14 mm

Weight: Approximately 0.5 kg

Heat dissipation requirements: thermal resistance R th(j−c)0.08 K/W (typical value), requires the use of an efficient radiator.

2. Drive board (AGDR-66C)

Supply voltage:

Main power supply:+15 V DC (driving IGBT on), -7 V DC (off bias)

Auxiliary power supply: isolated power supply, strong anti-interference ability

Interface features:

Optocoupler isolated input, compatible with TTL/CMOS levels

Fault feedback signal: Output overcurrent (OC) and overheat (OT) signals through LED or digital interface

Protection function:

Gate voltage monitoring (Vge undervoltage protection)

Active Miller clamp (suppresses oscillation)

Short circuit protection (DESAT detection, response time<1 μ s)

Application scenarios

1. Industrial sector

Medium and high voltage frequency converters: such as ABB ACS800 series models suitable for 1700 V level, used to drive high-power motors (such as mining machinery, steel rolling mills).

Renewable energy:

Wind power converter (doubly fed or full power converter), supporting high voltage ride through (HVRT) function.

Photovoltaic inverters (centralized or distributed) improve conversion efficiency and grid adaptability.

Power quality equipment:

Static Var Generator (SVG) and Active Power Filter (APF) are used for harmonic control and reactive power compensation.

2. Rail Transit and Ships

Traction inverter: a traction system for subways and high-speed trains that meets high reliability and vibration resistance requirements.

Ship electric propulsion: drives the propulsion motor, supports wide speed range and four quadrant operation.

3. Special power supply

High frequency heating power supply: The power module of induction heating equipment supports high switching frequency.

Pulse power supply: Pulse applications such as radar and particle accelerators that require fast switching.

Installation and maintenance

1. Installation points

Mechanical installation:

The module needs to be installed vertically on the heat sink, ensuring a flat contact surface, and using thermal conductive silicone grease (thickness ≤ 0.1mm).

Fixed torque: The screws need to be tightened in diagonal order, and the torque value should refer to the manual (usually 6-8 N · m).

Electrical connection:

Main circuit: Copper bars or low inductance cables are required for the DC bus (+/-) and output terminals (U/V/W) to reduce parasitic inductance.

Drive signal: using twisted pair shielded cables with a length of ≤ 0.5 meters to avoid electromagnetic interference (EMI).

Grounding: The driver board and module casing must be reliably grounded with a grounding resistance of<1 Ω.

2. Maintenance and troubleshooting

Daily inspection:

Visually inspect the surface of the module for cracks, erosion, or discoloration.

Measure the output voltage of the driver board: turn-on voltage+15 V ± 5%, turn off voltage -7 V ± 5%.

Cooling system: fan speed, radiator temperature (≤ 80 ° C is normal).

Common faults:

Overcurrent fault: It may be caused by motor short circuit, drive board failure, or IGBT aging, and an oscilloscope is needed to detect the gate waveform.

Overheating alarm: Failure of cooling fan, accumulation of dust in radiator, or failure of thermal grease, requiring cleaning or replacement.

Module damage: manifested as a phase loss in the inverter output, requiring a multimeter to detect module continuity (normally, unidirectional conduction between C-E).

Alternative models and compatibility

Upgraded models of the same series:

FS450R17KE4:450 A current level, E4 technology with lower losses, suitable for scenarios requiring higher power.

FS300R17KL4: 1200 V version, can be replaced if voltage requirements decrease (system voltage compatibility needs to be confirmed).

Driver board compatibility:

AGDR-66C is only compatible with IGBT at 1700 V level. If it is replaced with other voltage modules (such as 1200 V), the driver board (such as AGDR-61C) needs to be replaced synchronously.

Safety and Compliance

authentication:

Compliant with RoHS 2.0 environmental standards and certified by UL and CE safety regulations (please refer to specific documentation).

Compliant with IEC 60664-1 insulation standard, suitable for pollution level 2 environment.

Safe operation:

After power failure, wait for the capacitor to discharge (≥ 10 minutes) and use a multimeter to confirm that the bus voltage is less than 30 V.

Wear an anti-static wristband to avoid direct contact with IGBT pins (G is highly susceptible to electrostatic breakdown).

The faulty module needs to be professionally handled to avoid high-pressure residue or debris splashing during disassembly.
