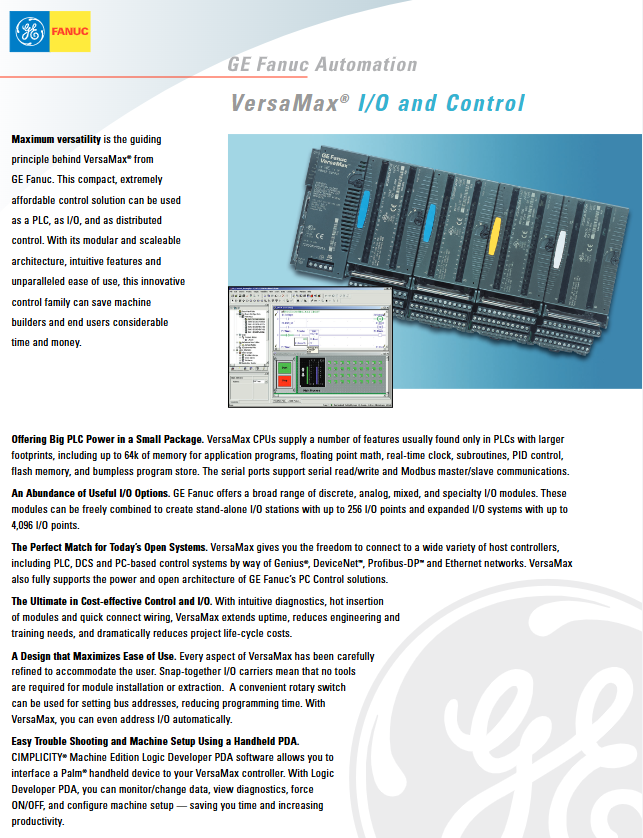

GE Fanuc VersaMax I/O and Control System Field Maintenance and Troubleshooting Guide

If replacing the CPU module, ensure that the firmware version of the new CPU is compatible with the old program; Otherwise, firmware upgrade must be performed using programming software.

Hot plugging of certain special modules (such as high-speed counting) may result in loss of counter values, and it is recommended to replace them when the system is shut down.

Chapter 4 Troubleshooting of Fieldbus Communication Malfunctions

VersaMax connects to Profibus DP, DeviceNet, Genius, or Ethernet networks through an adapter. Communication interruption is a common fault on site, which is explained below by network type.

4.1 Profibus DP slave station failure

Phenomenon: The master station (such as Siemens S7 or Schneider PLC) reports a slave station fault, and the "BUS" indicator light of VersaMax is red or flashing.

Troubleshooting steps:

Check physical connection: Profibus DP uses a purple dedicated cable and DB9 connector. Ensure that the terminal resistance switch is in the ON position at the beginning and end stations, and OFF at the middle station.

Station address check: The rotary switch (such as IC200PWB001) on the VersaMax adapter must set the station number to match the one in the main station configuration. The rotary switch only takes effect after power failure.

Communication rate matching: The baud rate configured by the master station (such as 1.5Mbps) must be consistent with the rate supported by the VersaMax adapter. Some old adapters only support specific speeds (such as 187.5k, 500k).

Diagnostic data reading: View the error codes returned by the slave station (such as "parameterization failure" or "inconsistent configuration") through the diagnostic buffer of the master station. In most cases, it is due to the I/O mapping length or module order not matching the main station configuration.

Solution: Re scan the bus in the main station hardware configuration to obtain the actual module arrangement, adjust the configuration, and download.

4.2 DeviceNet malfunction

Phenomenon: The scanner cannot recognize the VersaMax DeviceNet adapter.

troubleshoot

Confirm that the network terminal resistor (121 Ω) is installed correctly.

Check if the DeviceNet power supply (24VDC) is connected and stable.

The MAC ID dip switch setting of the adapter must be unique and comply with the main station scan list.

Use a handheld DeviceNet tester (such as NetMeter) to check the node status.

4.3 Ethernet Communication Interruption

Phenomenon: The VersaMax Ethernet adapter (IC200E series) is unable to communicate with the upper computer or controller.

diagnosis:

Check if the IP address conflicts (can be set through BOOTP/DHCP or rotary switch).

Test connectivity using the Ping command. If it doesn't work, check the network cable and switch port indicator lights.

View the adapter webpage diagnostic page (if HTTP is supported) to obtain the error count.

Some older models only support 10M half duplex, so it is necessary to ensure that the switch port configuration matches.

Recovery: Power off and restart the adapter; If it still fails, restore the factory settings and reconfigure the IP through serial port or programming software.

Chapter 5: On site Diagnosis and Debugging Using PDA

One of the unique advantages of VersaMax is the ability to run CIMPLICITY Machine Edition Logic Developer PDA software on Palm handheld devices. On site without laptops, engineers can quickly complete the following tasks through PDAs:

Monitoring data: Real time viewing of register values and I/O status.

Force point: Temporarily force input/output, test the circuit.

Diagnostic information: Read the CPU fault table and module status.

Modify settings: Adjust timer and counter preset values.

Upload/download configuration: Backup or restore mini programs.

Operation points:

Connect the Palm to the RS-232 port of the VersaMax CPU using a dedicated serial cable.

Select the correct communication rate on the PDA (usually 19200 or 38400).

After entering the "online" mode, you can browse the variable table.

Attention: PDA debugging will not interfere with PLC operation, but caution should be exercised when forcing point operations.

Troubleshooting: If the PDA cannot be connected, check if the cables are crossed (VersaMax is DTE, PDA needs to use null modem). After replacing the battery, the PDA software may lose its settings. Reinstall the driver.

Chapter 6: Replacement and Upgrade Strategies for Discontinued Spare Parts

When the original VersaMax module is announced to be discontinued (such as some models of the early IC200MDL series), the following solutions can be used to ensure the continuous operation of the equipment:

6.1 Finding Direct Alternative Models

GE Fanuc (later known as GE Intelligent Platforms, now under Emerson) typically provides "alternative models" in discontinuation notices. For example:

IC200MDL640 (16 point 24VDC input) can replace IC200MDL630.

IC200ALG260 (4-channel analog input) can replace IC200ALG250.

Alternative models are typically fully compatible in terms of electrical performance, external dimensions, and I/O mapping, with only differences in firmware version or LED color.
