GE Fanuc VersaMax I/O and Control System Field Maintenance and Troubleshooting Guide

GE Fanuc VersaMax I/O and Control System Field Maintenance and Troubleshooting Guide

In the field of industrial automation, GE Fanuc's (now Emerson) VersaMax series has become the preferred distributed I/O and small PLC solution for many OEM equipment manufacturers and end users due to its compact size, modular architecture, and high cost-effectiveness. VersaMax can operate as an independent PLC or connect to Genius, DeviceNet, Profibus DP, and Ethernet networks as a remote I/O station. Its design concept of "maximum flexibility" makes it widely used in industries such as automotive, packaging, material handling, and water treatment.

However, as the service life of equipment increases, on-site engineers often face problems such as power module damage, I/O channel failure, communication interruption, and CPU program loss. After the original factory announced the discontinuation of certain VersaMax models, how to quickly locate faults, replace modules, and resume production became the core challenge for the maintenance team. Based on the technical characteristics of the VersaMax system and years of on-site service experience, this article provides a detailed breakdown of its hardware architecture, common fault phenomena, hot plug replacement process, network diagnostic techniques, and upgrade and replacement strategies for discontinued spare parts, helping engineers restore system operation in the shortest possible time.

Chapter 1 VersaMax System Architecture and Core Advantages

1.1 Modular Design

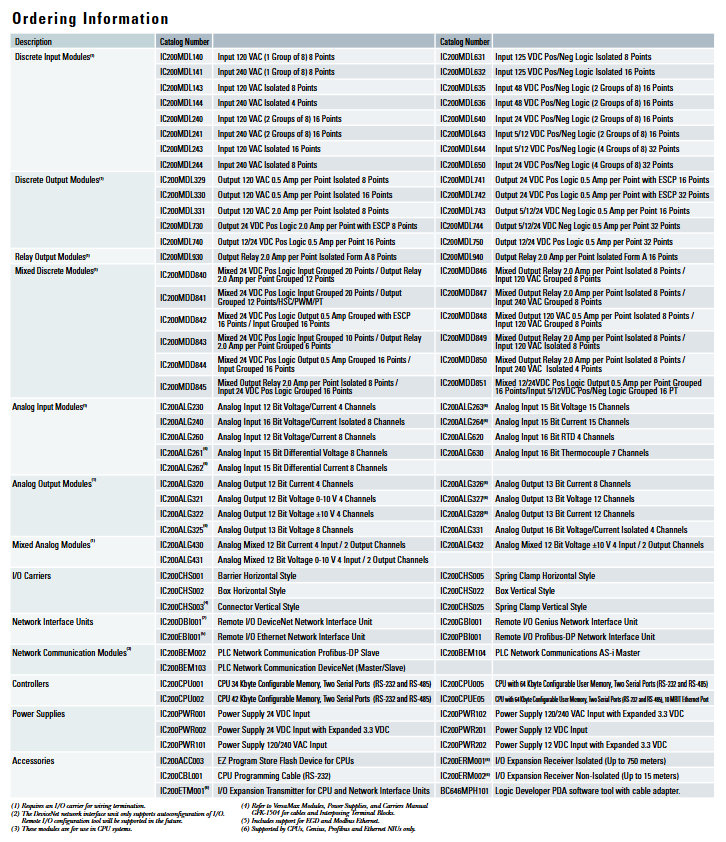

The VersaMax system consists of the following components:

CPU module: Provides up to 64KB of user program memory, supports floating-point operations, real-time clock, subroutines, PID control, FLASH storage, and undisturbed program storage. The serial port supports serial read-write and Modbus master/slave communication.

I/O modules: covering a wide range of types including discrete quantities (DC/AC input/output), analog quantities (voltage/current), thermocouples/RTDs, high-speed counting, etc., which can be freely combined.

Carrier: It can clamp modules without tools and supports quick installation and removal. The rotary switch is used to set the bus address.

Network adapter: Supports Genius, DeviceNet, Profibus DP, Ethernet to achieve distributed remote I/O.

Power module: Provides power to the backplane and I/O modules.

1.2 Key Characteristics

Hot Insertion: Replacing I/O modules while the system is running without the need to power off, greatly reducing downtime.

Quick Connect Wiring: Using pluggable terminal blocks, the module can be replaced as a whole after pre wiring.

Automatic I/O addressing: Reducing programming workload through rotating switches or automatic allocation.

PDA diagnosis: Connect to a Palm handheld device using CIMPLICITY Machine Edition Logic Developer PDA software to monitor data, force points, and view diagnostic information.

1.3 System Expansion Capability

A maximum of 256 points per I/O station

Expand I/O system up to 4096 points

Connect multiple main controllers (PLC, DCS, PC Based) through fieldbus

Chapter 2 Common Fault Phenomena and Diagnostic Process

2.1 Power module malfunction

Phenomenon: The entire I/O station or CPU has no power indicator light, and the backplane voltage is abnormal.

Possible reasons:

Input power overvoltage/undervoltage or polarity reversal

Internal fuse blown

Overloading (exceeding the rated output of the module)

Diagnostic steps:

Use a multimeter to measure whether the input voltage of the power module meets the nominal value (such as 24VDC or 120/230VAC).

Disconnect all I/O modules, leaving only the power module and carrier board, and observe if the indicator lights are normal. If it returns to normal, it means that the load is too heavy and the overcurrent units need to be added one by one to locate the modules.

Measure the 5V/24V voltage output from the backplane. If there is no output and the input is normal, it can be determined that the power module is damaged and needs to be replaced.

Preventive measures: Install fuses and surge protectors at the front end of the power module; Regularly check the tightness of the terminals.

2.2 CPU module malfunction

Phenomenon: The CPU "RUN" indicator light is not on, and the "FAULT" light is flashing or constantly on; Unable to communicate with programming software; The program is lost.

Possible reasons:

Program logic error causing CPU to enter a stop state

Watchdog timeout

Battery (if applicable) depletion leads to loss of RAM program

Firmware damage or accidental erasure

Diagnosis and treatment:

Connect the laptop via RS-232 serial port, open CIMPLICITY Machine Edition software, and view the CPU status and fault table online.

If the 'FAULT' light flashes, it usually indicates a non fatal error (such as configuration mismatch, value out of range). Read the error code and fix the program.

If the CPU is completely unresponsive, try downloading the firmware again (using a dedicated programming cable and recovery mode). If it is ineffective, replace the CPU module and download the application project again (ensure there is a backup source program).

For CPUs with real-time clocks, the date and time need to be reset after replacement.

Important note: The VersaMax CPU program is stored in FLASH and will not be lost during normal power outages. But if the program is overwritten due to configuration errors, it must be resent from the PC. Suggest exporting. gef or. ld files for archiving after each modification.

2.3 Discrete I/O module failure

Phenomenon: The input status of a certain point remains unchanged, the output point cannot drive the load, and the indicator light is abnormal.

Troubleshooting steps:

Input point: Use a multimeter to measure the voltage between the input terminal and the common terminal. If the voltage is normal but the module indicator light is not on, it may be a damaged module channel. You can try moving the wiring to an idle backup point and modifying the mapping address in the program.

Output point: Disconnect the load and measure the resistance between the output terminal and the common terminal (the module should have high resistance in the OFF state and close to 0 Ω in the ON state). If there is still high resistance when turned on, it is due to the breakdown of the output switch tube or the adhesion of the relay contacts.

Confirm if the wiring terminal block is in place: VersaMax uses spring or screw terminals, which may become loose due to vibration. Re plug and unplug the terminal block.

Hot plug test: If you suspect an internal bus fault in the module, unplug the module while the system is running, wait for 5 seconds, and then reinsert it. Observe whether the fault has been resolved (some older firmware versions may not support full hot swapping, confirmation is required).

Replacement strategy: For discontinued I/O modules (such as some models of the early IC200 series), new replacement models with the same function can be selected (such as IC200MDL640 replacing the old IC200MDL630). Please note that there may be slight differences in the wiring diagram. Please compare the technical specifications before replacing.

2.4 Analog module malfunction

Phenomenon: The analog value read by the PLC is always 0, at full range, or experiences severe fluctuations.

diagnosis:

Check the sensor wiring (whether the 2-wire/3-wire/4-wire system is correct).

Inject a known current (4-20mA) or voltage (0-10V) into the input of the module using a signal generator, and compare the read values. If the deviation exceeds 0.5%, it may be due to drift in the module A/D converter and requires calibration or replacement.

Check the jumper or software configuration of the module (such as selecting 0-20mA or 4-20mA input range).

For the output module, disconnect the output line and force the output value to 50% in the PLC program. Use a multimeter to measure the output terminal voltage/current. If there is no output, it is a module failure.

Common trap: The common terminal (COM) of the analog module is not connected to the sensor power reference point, resulting in common mode voltage exceeding the standard. Ensure that all analog signals use the same reference ground or use isolated modules.

Chapter 3: Detailed Steps for Hot swappable Module Replacement

Hot swapping is the biggest maintenance advantage of VersaMax. The following is the standard process for safely replacing I/O modules (applicable to modules that are still in production or discontinued but have alternative models):

3.1 Preparation work

Confirm that the model of the new module is fully compatible with the original module (or a verified alternative model).

Backup PLC program (especially before replacing CPU or network adapter).

Wear an electrostatic protection wristband (ESD sensitive device).

Prepare a small flathead screwdriver (used to loosen the terminal block locking mechanism).

3.2 Replacement steps

Record the original wiring: Take photos of the terminal block or label each wire with the corresponding channel number.

Disconnect on-site signals: If necessary, disconnect the external power and control circuits on the terminal block under safe conditions (to avoid output misoperation caused by module unplugging).

Pull out the terminal block: Use a screwdriver to gently pry open the locking buckles on both sides of the terminal block and pull it out vertically.

Loosen module fixation: VersaMax modules are typically secured with mortises on the carrier board. Press the release button above the module and pull out the module outward.

Insert new module: Align the new module with the carrier board guide slot, push it in evenly with force, and hear a "click" sound to indicate locking.

Reconnect the terminal block: After confirming that the terminal block is not deformed, insert it vertically into the corresponding position and tighten and lock it.

Power on verification: Observe whether the module indicator light is normal (usually the green RDY is on). Monitor I/O points online through programming software and force output testing.

Clean up the site: Fill in maintenance records, including module serial numbers, replacement dates, and fault symptoms.

3.3 Precautions

For network adapters (such as Profibus DP slave modules), the station address needs to be reset after replacement (through rotary switches or software configuration).

If replacing the CPU module, ensure that the firmware version of the new CPU is compatible with the old program; Otherwise, firmware upgrade must be performed using programming software.

Hot plugging of certain special modules (such as high-speed counting) may result in loss of counter values, and it is recommended to replace them when the system is shut down.

Chapter 4 Troubleshooting of Fieldbus Communication Malfunctions

VersaMax connects to Profibus DP, DeviceNet, Genius, or Ethernet networks through an adapter. Communication interruption is a common fault on site, which is explained below by network type.

4.1 Profibus DP slave station failure

Phenomenon: The master station (such as Siemens S7 or Schneider PLC) reports a slave station fault, and the "BUS" indicator light of VersaMax is red or flashing.

Troubleshooting steps:

Check physical connection: Profibus DP uses a purple dedicated cable and DB9 connector. Ensure that the terminal resistance switch is in the ON position at the beginning and end stations, and OFF at the middle station.

Station address check: The rotary switch (such as IC200PWB001) on the VersaMax adapter must set the station number to match the one in the main station configuration. The rotary switch only takes effect after power failure.

Communication rate matching: The baud rate configured by the master station (such as 1.5Mbps) must be consistent with the rate supported by the VersaMax adapter. Some old adapters only support specific speeds (such as 187.5k, 500k).

Diagnostic data reading: View the error codes returned by the slave station (such as "parameterization failure" or "inconsistent configuration") through the diagnostic buffer of the master station. In most cases, it is due to the I/O mapping length or module order not matching the main station configuration.

Solution: Re scan the bus in the main station hardware configuration to obtain the actual module arrangement, adjust the configuration, and download.

4.2 DeviceNet malfunction

Phenomenon: The scanner cannot recognize the VersaMax DeviceNet adapter.

troubleshoot

Confirm that the network terminal resistor (121 Ω) is installed correctly.

Check if the DeviceNet power supply (24VDC) is connected and stable.

The MAC ID dip switch setting of the adapter must be unique and comply with the main station scan list.

Use a handheld DeviceNet tester (such as NetMeter) to check the node status.

4.3 Ethernet Communication Interruption

Phenomenon: The VersaMax Ethernet adapter (IC200E series) is unable to communicate with the upper computer or controller.

diagnosis:

Check if the IP address conflicts (can be set through BOOTP/DHCP or rotary switch).

Test connectivity using the Ping command. If it doesn't work, check the network cable and switch port indicator lights.

View the adapter webpage diagnostic page (if HTTP is supported) to obtain the error count.

Some older models only support 10M half duplex, so it is necessary to ensure that the switch port configuration matches.

Recovery: Power off and restart the adapter; If it still fails, restore the factory settings and reconfigure the IP through serial port or programming software.

Chapter 5: On site Diagnosis and Debugging Using PDA

One of the unique advantages of VersaMax is the ability to run CIMPLICITY Machine Edition Logic Developer PDA software on Palm handheld devices. On site without laptops, engineers can quickly complete the following tasks through PDAs:

Monitoring data: Real time viewing of register values and I/O status.

Force point: Temporarily force input/output, test the circuit.

Diagnostic information: Read the CPU fault table and module status.

Modify settings: Adjust timer and counter preset values.

Upload/download configuration: Backup or restore mini programs.

Operation points:

Connect the Palm to the RS-232 port of the VersaMax CPU using a dedicated serial cable.

Select the correct communication rate on the PDA (usually 19200 or 38400).

After entering the "online" mode, you can browse the variable table.

Attention: PDA debugging will not interfere with PLC operation, but caution should be exercised when forcing point operations.

Troubleshooting: If the PDA cannot be connected, check if the cables are crossed (VersaMax is DTE, PDA needs to use null modem). After replacing the battery, the PDA software may lose its settings. Reinstall the driver.

Chapter 6: Replacement and Upgrade Strategies for Discontinued Spare Parts

When the original VersaMax module is announced to be discontinued (such as some models of the early IC200MDL series), the following solutions can be used to ensure the continuous operation of the equipment:

6.1 Finding Direct Alternative Models

GE Fanuc (later known as GE Intelligent Platforms, now under Emerson) typically provides "alternative models" in discontinuation notices. For example:

IC200MDL640 (16 point 24VDC input) can replace IC200MDL630.

IC200ALG260 (4-channel analog input) can replace IC200ALG250.

Alternative models are typically fully compatible in terms of electrical performance, external dimensions, and I/O mapping, with only differences in firmware version or LED color.

6.2 Third party compatible modules with equivalent functionality

In rare cases, third-party gateway modules from brands such as ProSoft and Woodhead can be used, but careful testing of timing and diagnostic functions is required. Not recommended for use in safety related circuits.

6.3 Overall upgrade to the new generation platform

If a large number of VersaMax modules are discontinued and spare parts prices are high, upgrading to PACSystems RX3i or Emerson's next-generation I/O can be considered. But this plan involves redesigning the rack, replacing the backplane, and modifying the program (from Logic Developer to Machine Edition), which is more suitable for the overhaul window period.

Transition strategy:

Retain the original VersaMax I/O station and connect to the new controller via Profibus DP or EtherNet/IP gateway.

Gradually replace I/O modules instead of replacing them all at once.

6.4 Refurbishment Market Procurement

For certain specific models (such as IC200CPU001), second-hand or refurbished modules can be purchased from reputable refurbishment suppliers (such as Radwell, PLC Direct). Before procurement, it is required to provide a test report and at least 30 days of warranty.

Chapter 7 Preventive Maintenance and Life Extension

To maximize the reliable running time of the VersaMax system, it is recommended to perform the following checks quarterly or semi annually:

Power module voltage measurement: Record the 5V and 24V output values of the backplane, and issue a warning when the deviation from the nominal value exceeds 5%.

Environmental conditions: Check the temperature, humidity, and dust inside the control cabinet. The working temperature of VersaMax module is 0-55 ℃, and the humidity is 5-95% without condensation. Excessive dust accumulation requires cleaning with a soft bristled brush.

Tightening of wiring terminals: Use a torque screwdriver to re tighten all power and I/O terminals (recommended 0.5-0.6N · m).

Firmware version record: Log in to the Emerson website to check if there are firmware updates for specific issues. For modules that are still in production, they can be upgraded regularly.

Spare parts inventory management: Based on fault statistics, reserve 2-3 most vulnerable modules (such as power modules, high-speed output modules, Profibus adapters).

Regular backup of the program: Store the PLC program on the engineering server and record the version number of each modification.

Battery replacement: If the CPU uses batteries to store real-time clock and RAM (some models do not come with batteries), it is recommended to replace them every 2 years and complete them within 30 minutes after power failure.

Chapter 8 Case: Quick Response to VersaMax Malfunction in a Packaging Line

Background: A palletizing packaging line suddenly stopped, and the HMI displayed "Profibus slave station fault". Upon inspection, it was found that all I/O indicator lights of the VersaMax remote I/O station (including 32 point input, 16 point output, and 4 analog inputs) were off, but the green light of the power module was on.

Troubleshooting process:

Measure the 5V voltage of the backplane with a multimeter - normal. There is no problem with the power module.

Observe the "OK" light on the CPU module (IC200CPU001) flashing and the "Fault" light remaining on. Suspect CPU program loss or hardware damage.

Connect the laptop, open CIMPLICITY Machine Edition, try to upload the program - failed, prompt 'CPU not responding'.

Set the CPU module to "STOP" mode, but it still cannot be connected when powered on again. Determine CPU hardware malfunction.

Retrieve CPUs of the same model from the spare parts library, insert them, and then download the backup program again (previously regularly exporting archives). The device resumes operation.

Subsequently, the faulty CPU was sent for repair, and the test result showed that the internal FLASH chip was damaged.

Lesson: Regular backup of programs is crucial; At least one redundant CPU spare should be retained for critical equipment.
