HMS Anybus Communicator Gateway Replacement and Troubleshooting Guide

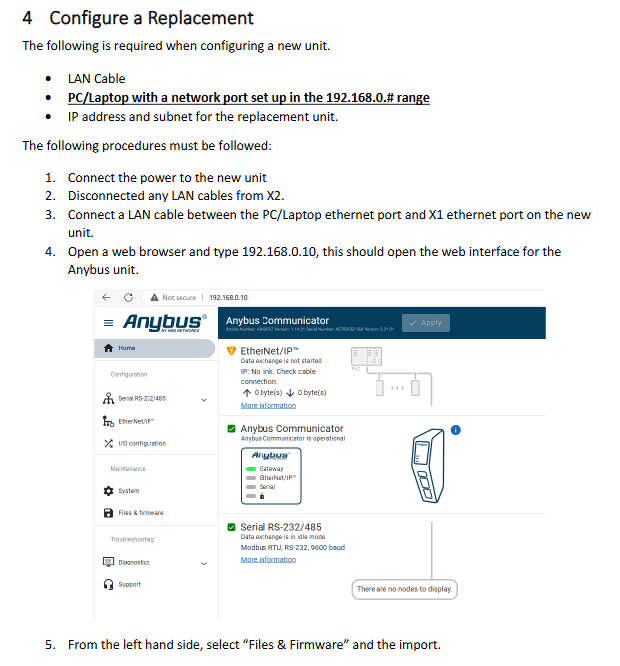

Lock safety switch: Turn the side safety switch to the "lock" position and confirm that LED D lights up green.

Verify communication: Observe whether the upstream PLC has resumed data exchange with the gateway and check the status of the serial sub devices.

4.3 Common Errors and Handling

Reasons and Solutions for Error Phenomena

The browser cannot open 192.168.0.10. The computer does not have a static IP set, or the X1 cable is plugged into the wrong port; Restart the gateway.

After importing the configuration, the Apply button is invalid and not clicked, or there is a browser cache issue; Refresh the page and re import.

After importing, all LEDs still have abnormal configuration files that do not match the firmware version; Check the firmware and upgrade it.

After plugging back into the X2 port, communication is immediately interrupted due to IP address conflicts or MAC address duplications (rarely seen); Change IP address.

Chapter 5: Backup Existing Units - Preventing Configuration Loss

Before replacement, if the old gateway is still connected to the internet, its configuration file should be backed up immediately. Even if the old gateway is damaged, as long as its internal flash memory is not completely destroyed, it can still attempt to read the configuration through the X1 port (provided that it can be powered on and started).

5.1 Backup steps (refer to Chapter 5)

Connect the laptop to the X1 port of the faulty gateway (disconnect the X2 cable to avoid IP conflicts).

Browser access 192.168.0.10.

Left menu "Files&Firmware" → "Export".

The browser will automatically download a configuration file (with a name similar to config.xport_SBC3007_date. cfg). Save to a secure location (such as company server, cloud, or local encrypted USB drive).

It is strongly recommended to archive the exported file along with the gateway serial number and on-site node number.

5.2 Emergency plan without backup

If there is no backup configuration, but there is still a gateway of the same model running in another location, you can export the configuration of the running gateway and then modify the IP address and device name to adapt to the new location. If the configuration is completely lost, manual reconstruction of the mapping table is required - this involves relearning the sub device data mapping (refer to the serial device manual), which is time-consuming and prone to errors. Therefore, regular backups are a fundamental requirement for operations and maintenance.

Chapter 6: Recording Serial Port Logs - A Powerful Weapon for Diagnosing Communication Faults

When the communication between the gateway and serial sub devices (such as frequency converters, instruments, barcode scanners) is unstable, Airbus provides built-in serial port logging functionality (Chapter 6). By capturing the original serial message, it is possible to analyze whether it is a gateway configuration error or a sub device response exception.

6.1 Log capture steps

Connect to the gateway (X1 port) and access 192.168.0.10 through the browser.

Left menu "Diagnostics" → "Serial RS-232/485".

Click 'Start' to start recording all serial data sent and received.

Simulate or wait for the fault to reproduce (such as communication interruption caused by operating equipment).

Click 'Pause' to stop recording.

Click the "Export" button on the toolbar in the upper right corner, and the browser will generate and download an. xlsx file (in Excel format).

6.2 Log file analysis

Each line in an Excel file contains a timestamp, direction (TX or RX), and data bytes (hexadecimal or ASCII). Common analysis points:

Periodic TX message but no RX response: The sub device did not respond. Check the serial cable, grounding, and device address settings.

A large number of "FF" or abnormal bytes appear in the RX message: it may be due to a mismatch in baud rate, data bits, or parity bits. Re verify the communication parameters of the sub devices.

TX message format error: The message length or function code in the Anybus mapping configuration is incorrect. Need to reconfigure Modbus commands or customize protocols.

6.3 Examples of on-site troubleshooting

At a certain site, the gateway and 20 instruments were polling through RS-485, and some instrument data was occasionally lost. Through serial port logs, it was found that the response message of the faulty instrument was one more initial byte than that of the normal instrument, resulting in a timeout in the parsing of the Anybus frame. The problem was ultimately solved by adjusting the "character timeout" parameter of the gateway (from 10ms to 50ms).

Chapter 7: Maintenance and Training Suggestions

7.1 Spare Parts and Technical Support

Spare parts ordering: Based on the recommended spare parts list in the equipment BOM, it is recommended to reserve at least one ABC3007 as a cold spare part. When contacting DME, the complete equipment part number (model associated with A5971-PT or A7662-ED) must be provided.

Technical support: available via email Support@DME-Systems.com Or call+44 191 429 7900 to contact the original factory. Attaching the configuration file export and serial port log in the email can greatly speed up the diagnostic process.
