Introduction: Industry standards and on-site pain points for 30mm buttons

The Allen Bradley 800T (metal) and 800H (plastic) series 30mm buttons have been in service for decades on industrial control panels, conveyor line consoles, heavy machinery operation stations, and even hazardous area equipment. They have earned a reputation for durability and reliability with their zinc alloy cast manipulators, stainless steel reset springs, diaphragm seals, and unique riveting structures. However, even the best components can malfunction after long-term exposure to dust, liquids, corrosive gases, severe vibrations, and hundreds of operations per day.

When the "Start" button on a critical device does not respond when pressed, or when the "Emergency Stop" button gets stuck in the middle position, on-site engineers need to quickly diagnose and solve the problem - usually meaning replacing the entire button head, contact block, or rewiring. This article is based on official technical information from Allen Bradley, combined with frontline maintenance experience, to systematically sort out the common types of faults, diagnostic methods, contact block replacement steps, explosion-proof application requirements, and selection guidelines for upgrading from old buttons to current models of the 800T/H series 30mm button, helping engineers restore production in the shortest possible time.

Chapter 1: Detailed Explanation of 800T/H Construction - Why They are So Durable

1.1 Core design elements

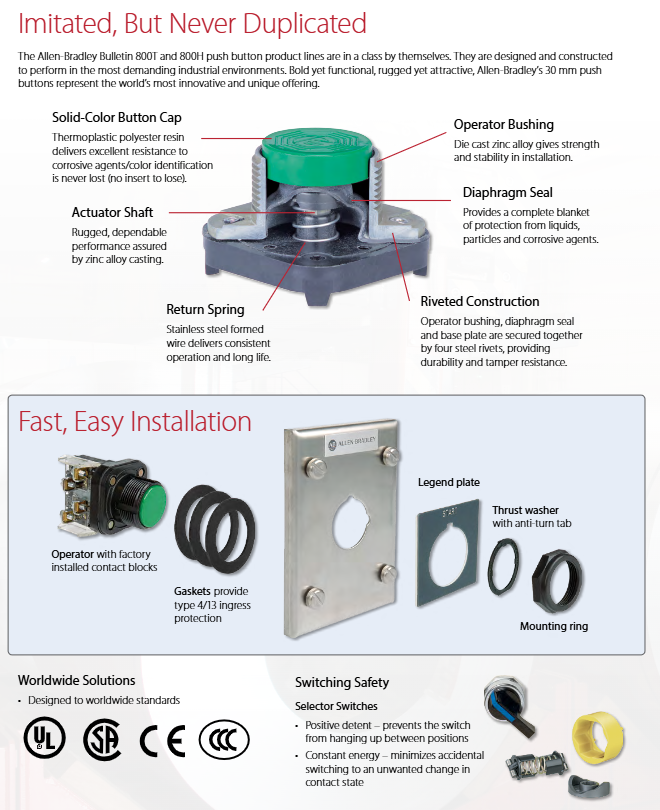

The success of the 800T/H series stems from several key design features (refer to the official structural diagram):

One tone button cap: Made of thermosetting polyester resin, not a double-layer embedded structure, so the lower layer color will not be exposed due to wear and tear. Even in chemically corrosive environments, color identification will not be lost.

Zinc alloy operating shaft and bushing: The actuator shaft and bushing are both made of die cast zinc alloy, which has high strength and deformation resistance. Under frequent pressing, it can still maintain precise alignment and smooth movement.

Diaphragm seal: The diaphragm seal between the button head and the base provides a complete seal, preventing liquids, dust, and corrosive gases from entering the internal contacts. This is the key to achieving Type 4/13 protection level.

Stainless steel reset spring: Using stainless steel molded springs, providing consistent operating feel and not easily rusting or breaking in humid environments.

Riveted structure: The operator liner, diaphragm seal, and bottom plate are fixed by four steel rivets, which are non removable, ensuring overall tamper resistance and mechanical strength.

1.2 Protection level

800T (metal): Provides Type 4/13 (equivalent to IP66/IP67). The metal casing is suitable for humid, oily, and washable environments.

800H (plastic): Provides Type 4/4X/13 (corrosion-resistant plastic), with additional features of UV resistance and chemical resistance, suitable for outdoor or chemical plants.

Important reminder: Even if the button itself has a high level of protection, the accompanying sealing gasket must be used between the panel and the button during installation, otherwise water or dust will enter through the panel opening.

Chapter 2: Common Fault Phenomena and Diagnostic Process

2.1 Classification of Fault Phenomena

Possible causes of the phenomenon and diagnostic steps

Press the button, the machine does not respond (PLC input point does not light up), the contact block contacts oxidize, the contact block is not tightened, the wiring is loose, and the button operation stroke is insufficient. Use a multimeter to measure the continuity between the common end of the contact block and the NO/NC terminal; Check if the button head is tightened in place; Check the input voltage of PLC

After pressing the button, if it does not rebound and the reset spring fails, if the operating shaft is stuck, if foreign objects enter, if the installation is too tight and pressed several times, do you feel smooth; Disassemble the button head (note that the spring may pop out) and check for wear on the shaft and bushing; Clean the dust accumulation above the diaphragm

After pressing the emergency stop button, it cannot rotate. The reset rotation release mechanism is worn or blocked by foreign objects, and multiple attempts have been made to rotate it; If it still gets stuck, the entire emergency stop button head needs to be replaced (cannot be repaired on site)

The LED indicator light does not light up (with light type), the LED is burnt out, the transformer module is damaged, and the wiring is incorrect. Check the power supply voltage (Universal LED 12-130V AC/DC matching); Replace LED module (such as 800T-QBH2R)

The position of the selection switch is unclear or stuck in the middle. The ratchet mechanism is worn out, and the positioning spring is ineffective. Monitor whether the "click" sound during gear shifting is crisp; If there is no sense of positioning, the operator (such as 800T-H2A) needs to be replaced
