Introduction: The role and common fault scenarios of industrial communication gateways

In modern industrial automation systems, devices of different brands and protocols often need to work collaboratively. The HMS Airbus communicator series gateway is designed for this purpose - it enables transparent data mapping between serial (RS-232/485) devices and Ethernet industrial protocols such as EtherNet/IP, Profinet, Modbus TCP. However, when the gateway experiences communication interruption, configuration loss, or hardware damage on site, engineers need to complete diagnosis, replacement, and recovery in the shortest possible time.

This article is based on the operation and maintenance manual of HMS Airbus communicator model ABC3007 (corresponding to DME part number A5971-PT), combined with practical troubleshooting experience, to systematically introduce the hardware structure, LED status diagnosis, configuration backup and recovery, serial port logging, and safety switch mechanism of the gateway. Whether you are an on-site maintenance engineer or a system integrator, you can quickly replace faulty units and minimize downtime by following the steps outlined in this article.

Chapter 1: Product Overview and Hardware Interface

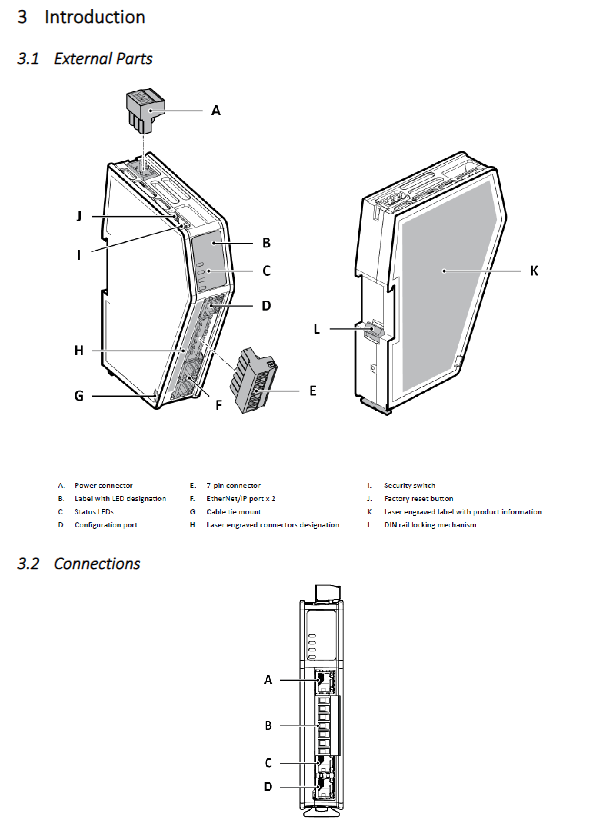

1.1 External component identification (refer to original 3.1)

The ABC3007 gateway is installed on DIN rails, and the following key components are distributed on the front and side:

A. Power connector: 3-pin terminal, providing 12-30 VDC input.

B. Laser engraving labels: indicate the functions of each LED.

C. Status LEDs: There are a total of four (LEDs A, B, C, D) used to indicate the gateway's operational status, EtherNet/IP connectivity, and subnet communication.

D. Configure Port (X1): A standard RJ45 Ethernet port used to access the gateway configuration interface through a web browser (with a fixed IP address of 192.168.0.10).

E. 7-pin connector: serial interface (RS-232/485).

F. EtherNet/IP ports (X2.1 and X2.2): Two RJ45 ports used to connect upstream PLCs or industrial switches, supporting ring network redundancy.

G. Cable tie fixing seat: used to fix cables.

H. Laser engraved connector identification: Clearly indicate the purpose of each port.

I. Security switch: used to lock the configuration and prevent unauthorized modifications (see Chapter 3 for details).

J. Factory reset button: Long press to restore default configuration.

K. Product information label: including model, serial number, MAC address, etc.

L. DIN rail lock: used for quick installation and disassembly.

1.2 Definition of Port Pins

Ethernet port (RJ45)

Pin signal description

1 TD+sending data positive

2 TD - Sending negative data

3 RD+receiving data positive

6 RD - Receive negative data

4,5,7,8 not used

The physical pin definitions for X1 (configuration port) and X2.1/X2.2 (EtherNet/IP network port) are the same. The default IP address for the configuration port is 192.168.0.10/24 and cannot be changed.

Serial port (7-pin)

The detailed pin definitions are not elaborated in the manual, but it is explicitly supported for RS-232 and RS-485 two-wire/four wire systems. When replacing on site, it is necessary to compare the wiring records of the original equipment to confirm that the parameters such as baud rate, data bits, and parity bits are set consistently.

Power port (3-pin)

Pin Description

1 12-30 VDC positive pole

2 Grounding (GND)

3 Function Grounding (FE)

Notes:

When the power supply voltage is below 12V, the gateway will repeatedly restart or fail to start.

The functional grounding (FE) terminal must be connected to the protective grounding (PE) of the system, otherwise communication interference or electrostatic damage may occur.

1.3 Storage and Disposal

Storage conditions: When not in use, it should be stored in a dry and clean environment, with a priority temperature control of 5-25 ℃.

Scrap disposal: Please comply with local electronic waste regulations, especially for circuit boards containing lead solder and plastic casings. For guidance, please contact DME (equipment manufacturer) for advice.

Chapter 2: LED Status Diagnosis - The First Step in Fault Localization

The four status LEDs (LEDs A, B, C, D) of the Airbus communicator are the most intuitive tools for on-site troubleshooting. The following table is based on the summary in section 3.4 of the manual, combined with analysis of common problems.

2.1 Meaning of Status LED

LED Status LED A (Running) LED B (Gateway Status) LED C (EtherNet/IP Adapter Status) LED D (Subnet/Security Switch)

Not lit, no power supply, no IP address or not connected to the electronic network, not running/node is turned off by control word, safety switch is not locked

During the green flashing startup phase, EtherNet/IP is online, with no connection established and running. One or more nodes are offline

The green light is constantly on and running normally. EtherNet/IP is online, and a connection has been established. The safety switch is locked during operation

Red constantly on - IP address conflict/fatal error——

Red flashing invalid configuration. One or more connections have timed out. All nodes are offline
