In industrial combustion systems, the reliability, safety, and diagnostic capabilities of combustion controllers are directly related to the stability of equipment operation and personnel safety. The 7800 series relay modules launched by Honeywell, including EC7830A, RM7830A, EC7850A, and RM7850A models, are microprocessor integrated control systems designed specifically for automatic burners. These modules are suitable for gas, fuel, or dual fuel single burner applications, providing comprehensive flame monitoring, system self diagnosis, and troubleshooting functions. This article will provide a comprehensive and in-depth professional interpretation of the technical specifications, installation requirements, wiring specifications, static inspection, operation sequence, and on-site configuration of this series of products.

Product positioning and system composition

The 7800 series relay module is the core component of Honeywell's 7800 series combustion control system, which uses microprocessor technology to achieve automatic burner sequence control. This series is divided into two main types:

EC/RM7830A: Suitable for on/off type burner applications

EC/RM7850A: Suitable for full modulation burner applications

The voltage specifications of the two models differ:

RM7830A and RM7850A: 120 Vac (+10%/-15%), 50/60 Hz

EC7830A and EC7850A: 220/240 Vac (+10%/-15%), 50/60 Hz

The complete 7800 series system consists of the following components:

Relay Module

Subbase (Model Q7800)

Flame Amplifier

Purge Card

Optional components: Keyboard Display Module (KDM), Personal Computer Interface Data ControlBus ™  Module, remote display installation kit Combustion System Manager ®  software

This series of modules supports multilingual text display, including English, Spanish, Portuguese, Japanese katakana, French, German, and Italian, greatly facilitating configuration and fault diagnosis for global users.

Technical specifications and environmental requirements

1. Electrical specifications

Parameters RM7830A/RM7850A EC7830A/EC7850A

Supply voltage 120 Vac (+10%/-15%) 220/240 Vac (+10%/-15%)

Frequency 50/60 Hz (± 10%) 50/60 Hz (± 10%)

Power consumption maximum 10W, maximum 10W

Maximum total load 2000 VA 2000 VA

Fuse 15A fast melting type, SC type or equivalent 15A fast melting type, SC type or equivalent

2. Environmental requirements

Working temperature: -40 ° F to+140 ° F (-40 ° C to+60 ° C)

Storage temperature: -40 ° F to+150 ° F (-40 ° C to+66 ° C)

Humidity: Maximum 85% relative humidity, non condensing

Vibration: Maximum 0.5G continuous vibration

3. Security level and certification

SIL 3 capability: SIL 3 level can be achieved in a properly designed safety instrumented system

FM certification: Factory Mutual approval

Swiss Reinsurance: Acceptable

FCC: Part 15, Class B Radiation Standard

European directives: Gas Appliance Directive (90/396/EEC), Low Voltage Directive (73/23/EEC), EMC Directive (89/336/EEC)

EN298 certification: Complies with the standard of "Automatic Gas Burner Systems for Gas Burners and Gas Appliances with or without Fans"

Lloyd's Register: Lloyd's Register certification

Installation requirements and precautions

1. Installation location selection

Humidity: Avoid installation in environments that may reach saturation humidity, as condensation may cause safe shutdown

Vibration: Avoid places with continuous vibration exceeding 0.5G

Weather protection: The module does not have a rainproof design, and outdoor installation must use an approved rainproof shell

Wiring base direction: The wiring base (Q7800) can be installed in any direction, but it is strictly prohibited to install the forked contacts horizontally with them facing downwards; Recommended vertical installation

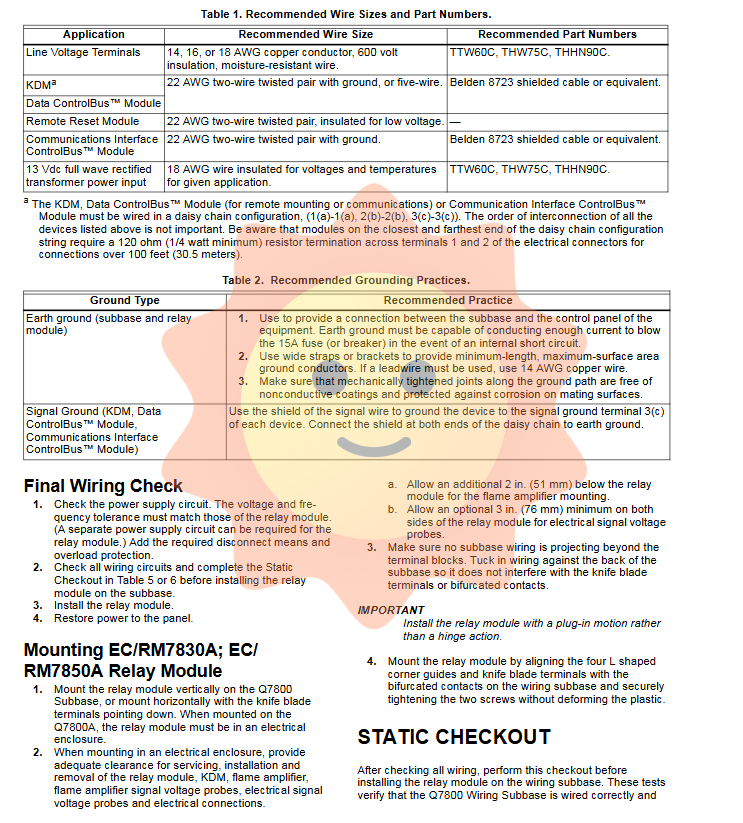

2. Wiring specifications

Wire specifications: It is recommended to use 14, 16, or 18 AWG copper wire with 600V insulation level for power terminals

KDM wiring: Use 22 AWG twisted pair shielded wire (such as Belden 8723)

Remote reset module: 22 AWG twisted pair cable

Maximum line length:

Input terminal (control, operation/locking interlock): 300 feet (91 meters)

Flame detector: limited by flame signal strength

Remote reset button: 1000 feet (305 meters)

Data ControlBus ™  Module: Maximum length of 4000 feet (1219 meters)

3. Grounding specifications

Equipment grounding: Use wide copper tape or 14 AWG copper wire to ensure that the grounding path has no conductive coating and is corrosion-resistant

Signal grounding: Use a signal line shielding layer and connect the shielding layer to the device signal ground terminal at both ends of Daisy Chain

4. Important safety warnings

Before installation, the main power supply must be disconnected, as there may be multiple disconnection points

All wiring must comply with NEC Class 1 (line voltage) requirements

Interlocking and limit switches must be able to simultaneously connect and disconnect the current of the ignition transformer, ignition valve, and main fuel valve

Do not connect the high-voltage ignition transformer wires with flame detectors Data ControlBus ™  Module or remote reset module wires are laid in the same conduit

Terminal function and load capacity

1. EC/RM7830A key terminals

Rated value of terminal marking function (RM7830A)

3 AL alarm output (normally open) 1A, 10A surge

4 FAN fan/burner motor 4A, PF=0.5, 20A surge

5 L1 power input 120 Vac

6 RT limit and burner control 1mA

7 LD2 wind pressure switch input 5A

8 PV1 ignition valve 1 (interrupt type) 4A, PF=0.5, 20A surge

9 MV main fuel valve 4A, PF=0.5, 20A surge

10 IGN ignition transformer 2A, PF=0.2

21 PV2 ignition valve 2 (continuous) 4A, PF=0.5, 20A surge

2. EC/RM7850A additional modulation terminal

Rated value of terminal marking function

12 HI high fire position output 0.5A, PF=0.5

13 COM modulation common terminal 0.5A, PF=0.5

14 MOD modulation output 0.5A, PF=0.5

15 LO low fire output 0.5A, PF=0.5

18 ES1 low flame switch input 1mA

19 ES3 high flame switch input 1mA

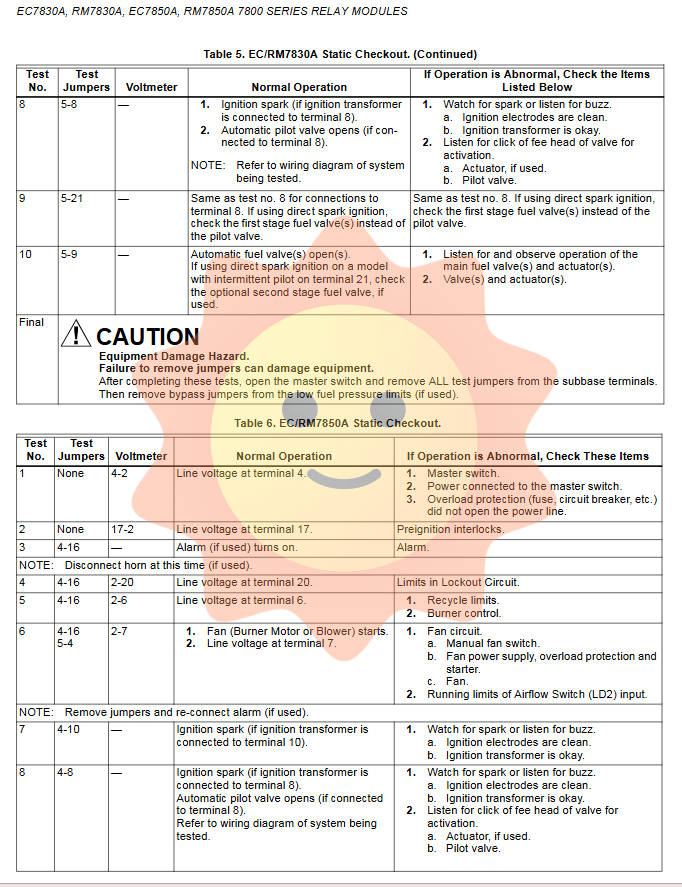

Static inspection program

Before installing the relay module, a static inspection must be performed to verify that the wiring base and external devices are properly connected. The inspection requires the use of a voltmeter (sensitivity ≥ 1M Ω/V, range 0-300V) and insulated jumper wires.

1. Key points for static inspection of EC/RM7830A

Test jumper voltage measurement in normal condition

1 without 5-L2 terminal 5 with line voltage

2 without 17-L2 terminal 17 with line voltage

3 5-16- Alarm turned on

4 5-16, 2-20 20-L2 locking circuit limit closure

5-16, 2-6 6-L2 cycle limit closure

6 5-16, 5-4, 2-7 7-L2 fan starts, terminal 7 has voltage

7 5-10- Ignition spark appears

8 5-8- Ignition spark appears, ignition valve opens

9 5-21- Ignition spark appears, ignition valve opens (main valve during DSI)

10 5-9- Main fuel valve open

2. EC/RM7850A additional modulation test

Test jumper voltage measurement in normal condition

11 12-13 18-L2 low flame switch closed (voltage returns to zero after motor is turned on)

12 12-13 19-L2 high fire switch closed

13 14-13 19-L2 motor drives towards low flame, terminal 19 voltage returns to zero

14- Change the controller settings and modulate the corresponding actions of the motor

Important reminder: After each test is completed, the main switch must be disconnected and all test jumpers must be removed, otherwise the equipment may be damaged.

Operation sequence and safety interlock

The 7800 series relay module controls the burner according to precise timing, with strict safety monitoring at each stage.

1. Initial Stage

After the module is powered on, it enters the InitiatITE sequence for 2 seconds

If the voltage or frequency exceeds the tolerance range, the module enters a hold state and locks after a maximum of 4 minutes

Monitoring items: power interruption, line noise, low voltage

2. Standby phase (STANDBY)

When the control input sends out the "heating demand" signal, the module is ready to start

Check the burner switch, limit, operation control circuit, and all microprocessor monitoring circuits

If the flame signal appears for more than 40 seconds, it will be locked

3. PurGE stage

The blowing time can be selected through the blowing timing card (2 seconds to 30 minutes)

Fan output (terminal 5) power supply, start blowing

EC/RM7850A type drives the modulation motor to the high flame position at the beginning of blowing

The wind pressure switch must be closed within 10 seconds, otherwise it will lock

The pre ignition interlock must remain closed

4. Ignition test stage

Pre ignition: The ignition transformer (terminal 10) supplies power for 3 seconds

First Safe Time (SAFETY1):

The ignition valve (terminals 8 and 21) is powered simultaneously with the ignition transformer

EC/RM7850A type requires low flame switch to be closed

The flame must be established within the first safe time, otherwise it will be locked

Stable ignition period (PILOT TAB.):

After the flame is established, the ignition transformer is powered off

Lasts for 5 seconds

Main Trial Period:

Main fuel valve (terminal 9) power supply

The main fire test time can be selected as 3 seconds or 5 seconds

If the flame goes out, the module will lock within 1-2 seconds

5. Running phase (RUN)

Modulation motor adjusts combustion load based on controller signal

Continuously operate until the heating demand disappears or the limit is disconnected

6. Post blowing stage (POSTPUGE)

Power off of main valve and continuous ignition valve

Modulate the motor drive to the low flame position

Continue running the fan for 2, 15, or 30 seconds (depending on the model)

Return to standby mode after blowing is completed

On site configuration of jumpers and test switches

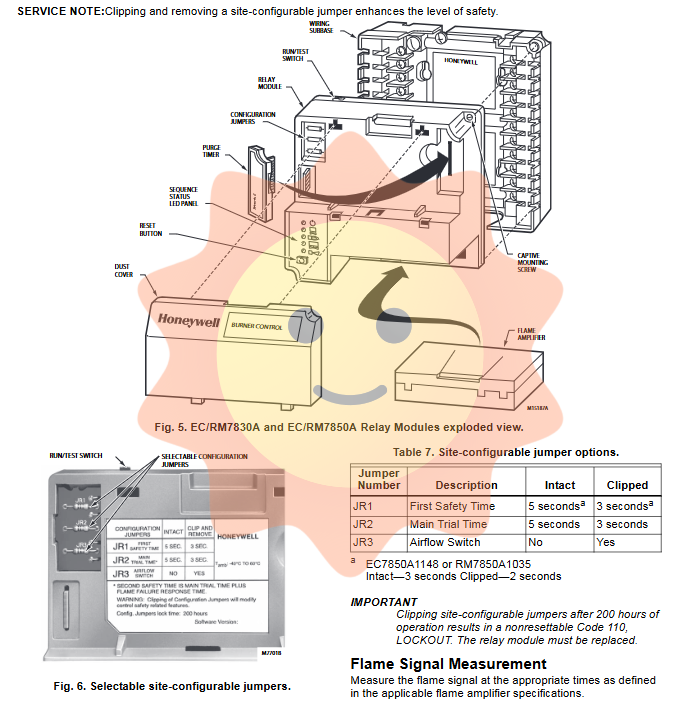

1. On site configurable jumpers

The relay module provides three on-site configurable jumper options, and users can cut off the corresponding resistors according to their application needs:

Jumper function not cut (default) cut off

JR1 first safety time 5 seconds 3 seconds*

JR2 main fire test time 5 seconds 3 seconds

JR3 wind pressure switch without wind pressure switch with wind pressure switch

*Note: EC7850A1148/RM7850A1035 type, uncut for 3 seconds, trimmed for 2 seconds

Important: When the cumulative operating time of the main valve exceeds 200 hours, the module will lock the jumper configuration to the internal memory. If the jumper is modified afterwards, the module will be locked (Code 110) and cannot be reset, and the module must be replaced. This design ensures tamper proof configuration and enhances security level.

2. Run/Test Switch

Located at the top of the relay module, used for debugging and maintenance:

Blowing stage: Placing it in the TEST position can pause the blowing process for easy inspection of high or low flame positions

Stable ignition period: When placed in the TEST position, the timer can be paused for ignition reduction testing, while activating the 15 second flame extinguishing timer

Operation phase: Placing it in the TEST position can drive the modulation motor to the low flame position

Attention: After debugging is completed, the switch must be restored to the RUN position.

Flame signal measurement and diagnosis

The flame signal strength can be measured at the flame amplifier test point through the keyboard display module (KDM) or a dedicated voltmeter. The signal strength requirements depend on the specific flame amplifier model and the type of flame detector equipped.

The 7800 series module has a comprehensive system self diagnostic function, and fault codes can be displayed through KDM or indicated by a combination of LED indicator lights, making it easy to quickly locate the root cause of the problem. Typical reasons for locking include:

Pre ignition interlock is disconnected during blowdown period

Flame signal detected during purging

The high fire switch or low fire switch is not closed within the specified time

The wind pressure switch is not closed within 10 seconds

Flame loss during the main fire test period

Internal system malfunction or missing/damaged purge timing card
