IDEC MicroSmart FC6A Replacement Guide

Error LED flashing or constantly on program error; Hardware malfunction; Watchdog timeout connection to WindLDR, reading error code (E * * *); Clear watchdog timer setting too small

The input point is unresponsive and the sensor is faulty; Loose wiring; Measure the voltage of the input terminal to COM using a multimeter when the input common terminal is not connected; Check the power supply of the sensor; Refer to input specifications to confirm voltage threshold

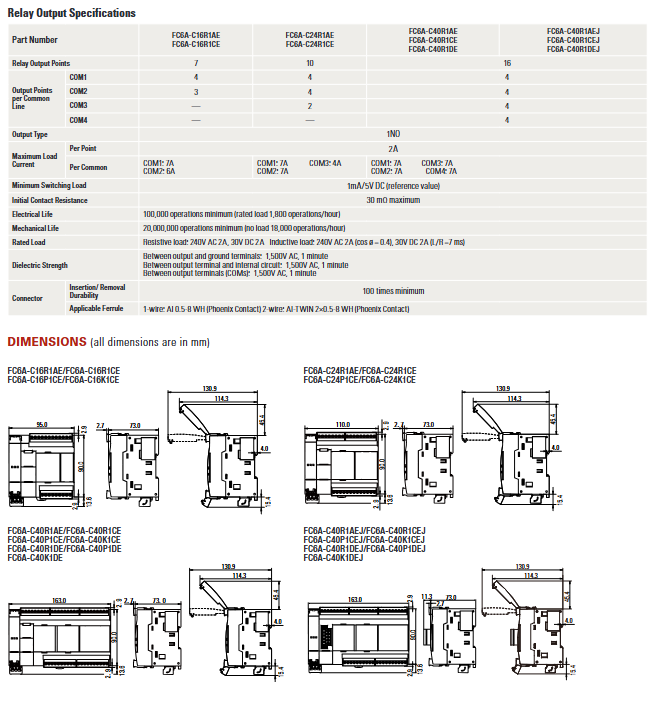

Output point does not operate, load disconnected; Output overload protection triggered; Relay lifespan to check load and fuse; For transistor source type, after resetting overload, wait for 1 second for automatic recovery; Replace the relay module

Ethernet cannot communicate due to IP address conflicts; Wrong network cable type (direct/cross); Switch failure is tested using a crossover cable connected directly to a PC; Modify IP through WindLDR; check firewall

Modbus communication failure baud rate/parity mismatch; The address of the slave station is incorrect; Check communication parameters for wiring errors; Use serial debugging tools to listen for data; Check the RS485 terminal resistance

J1939 no data CAN bus physical fault; Node does not declare address; PGN is not configured to measure the voltage between CAN_S and CAN_L (≈ 2.5V each); Check the terminal resistance (120 Ω); Use software to monitor and receive messages

SD card cannot recognize card not formatted (FAT32); If the capacity exceeds 32 GB, format it as FAT32 on a PC; Use a 32GB or smaller capacity card

After the program is lost, the CPU enters STOP and the battery voltage is low (FC6A internal flash does not require a battery, but RTC requires a battery). Download the program again; Check RTC battery (optional)

Maintenance and spare parts recommendations

The FC6A series uses flash memory to store user programs, without the need for battery retention (except for real-time clocks). Therefore, the daily maintenance workload is relatively low. Suggestion:

Check once a year: clean the dust inside the cabinet, tighten the wiring terminals, and inspect the cooling fan (if any).

Regular backup: Backup programs and parameters through WindLDR or SD card.

Spare parts recommendation: Reserve at least one CPU module of the same model, as well as commonly used I/O expansion modules and power modules.

Firmware upgrade: Follow the IDEC official website as the new firmware may fix known issues or add features.
