NI CompactRIO System Troubleshooting and Replacement Practical Guide

In the field of industrial automation and embedded measurement, the NI CompactRIO platform has become the core controller for many critical applications due to its robust reliability, real-time processing capabilities, and user configurable FPGA logic. However, as equipment ages, modules are shut down, or communication timeouts, I/O data loss, and other complex issues occur on-site, engineers often need a systematic troubleshooting and replacement plan. This article is based on the NI CompactRIO user manual, combined with typical issues with Scan Interface, FPGA interface, and C-series modules, to provide you with a complete engineering guide from project configuration to on-site debugging.

Project Configuration: Avoiding the "Pattern" Trap

CompactRIO supports three programming modes: scan interface mode, FPGA interface mode, and hybrid mode. Many on-site failures stem from improper mode selection.

Scanning interface mode: Directly drag and drop the I/O variables of C-series modules to LabVIEW real-time VI for use, without FPGA programming, suitable for fast development and conventional I/O scanning.

FPGA interface mode: Directly accessing modules through FPGA I/O nodes can achieve microsecond level timing and custom trigger logic.

Mixed mode: Place some modules under the scanning interface and keep some modules under the FPGA interface, such as using FPGA to process high-speed waveforms while reading low-speed analog signals through the scanning interface.

Key precautions:

If the module is dragged and dropped under "Real Time Scan Resources", it will occupy FPGA resources (two DMA FIFOs and some logic), resulting in longer compilation time. Meanwhile, you cannot write to the sleep channel of the FPGA target.

After switching modes, the project must be redeployed (right-click on the controller → Deploy All), otherwise the mode will not take effect.

For cRIO-904x/905x controllers, Dynamic Mode Switching is supported, but the module will enter a safe state (output reset or hold) during switching and needs to be protected in the program.

Scan cycle and CPU overload: preventing data transfer errors of "-65512"

The scanning interface runs I/O scans on high priority threads. If the scanning cycle is too short (less than 1 ms), it may cause system instability, communication loss, and even I/O update delay. The manual clearly states that error code -65512 indicates that 'I/O variable data transfer was not completed within the allocated time, and some values may have been delayed'.

Troubleshooting steps:

Use NI Distributed System Manager or RT Get CPU Load VI to check the CPU base occupancy rate.

Monitor the Percent Hardware Scan Utilization variable. If the value frequently approaches 100%, it indicates that the scanning load is too high.

Increase the scan period. For example, changing from 1 ms to 2 ms, or reducing the number of sampling channels.

Check if there is a timed loop synchronized with the scanning engine, and the loop period must be greater than the scanning period.

Example: A production line uses cRIO-9030 to collect 32 analog signals, with a scanning cycle set to 500 μ s, but the system frequently reports -65512 errors. After changing the scanning cycle to 1 ms, the fault disappeared.

Controller status LED diagnosis - quickly locate startup faults

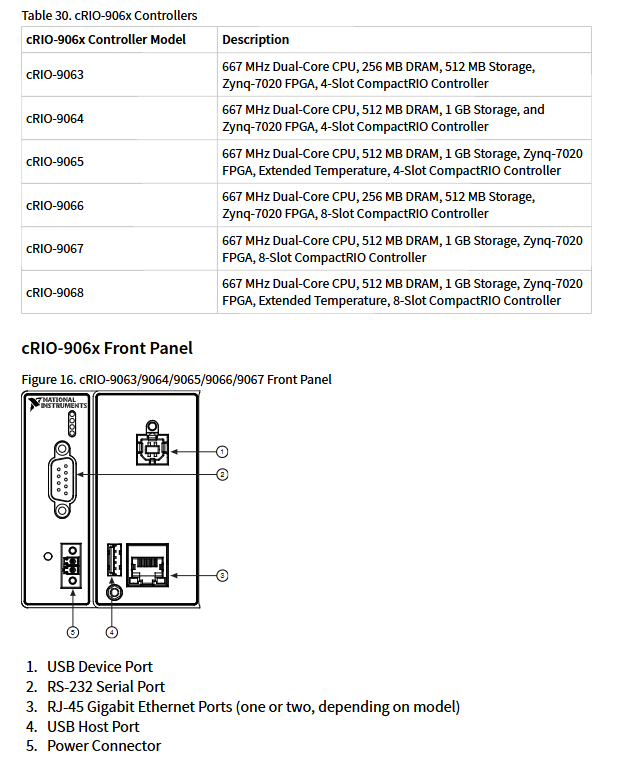

The Status LED on the front panel of the CompactRIO controller uses yellow/red/green colors and flashing times to indicate the system status. Mastering these codes can greatly reduce downtime.

Meaning of cRIO-903x/904x/905x STAT3 LED (excerpt)

Solution to the meaning of LED color/mode

Yellow, flashing twice before pausing safe mode. The software is not installed or installed incorrectly. Reinstall the software (via MAX or restore factory image).

Yellow, flashing three times before pausing the user from entering safe mode or being in installation mode. Normal state, waiting for installation completion; If triggered incorrectly, simply restart.

Yellow, continuously flashing without starting NI Linux Real Time, may boot to an unsupported operating system. Check the boot media and re burn the system.

Red, continuously flashing hardware error (internal power failure). Disconnect all C-series modules and external wiring, leaving only the power supply. If it still flashes, contact NI for repair.

Red, constantly on. Internal temperature exceeds critical threshold. Check the ambient temperature to ensure proper heat dissipation (fan, cabinet ventilation).

Turn off the running mode, the software is running normally. Normal operation, no need for intervention.

Practical tip: When the controller cannot be connected, it can be forced to enter safe mode: press and hold the RESET button for more than 5 seconds, the STOP LED flashes three times, and then release it to reinstall the software through MAX.

Common faults and troubleshooting of C-series modules

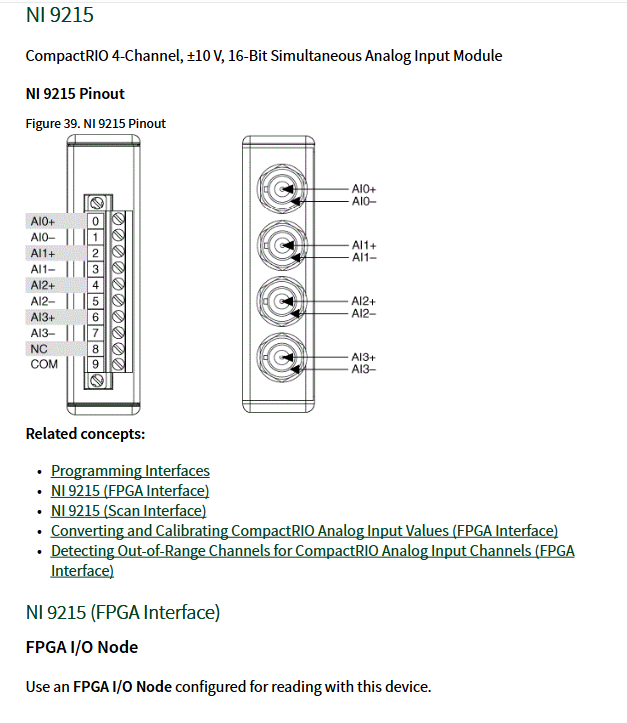

1. Analog input module (NI 920x/921x/922x)

Over range detection: If the calibration mode is set to "Calibrated" and the value returned by the FPGA I/O node exceeds the typical working range, the channel may have exceeded the range. For example, NI 9205 will return a full-scale binary value (0x7FFF or 0x8000) if it exceeds approximately ± 10.4 V in the ± 10 V range. The LSB Weight and Offset properties can be used to convert to engineering units.

Open circuit detection: Thermocouple modules (such as NI 9214) can detect wire breakage by enabling "Open Thermocouple Detection". In scanning interface mode, if an open circuit is detected, the I/O variable returns 0 and error code -65582 is triggered.

Synchronous sampling problem: When synchronizing multiple delta sigma modules (such as NI 9234, NI 9229), they must be configured to share the same Master Timebase Source. The steps are as follows:

Set one of the modules as' Export Onboard Clock '.

Select 'Master Timebase Source' for other modules as the name of this module.

Read all channels simultaneously using the same FPGA I/O node.

If this step is ignored, the sampled data may experience phase shift or cannot be obtained simultaneously.

2. Digital output module (NI 947x/948x)

Overcurrent and Overheat Protection: NI 9478 supports programmable current limiting (0~5.1 A) and overcurrent auto recovery (Overcurrent Refresh Period). When the channel exceeds the limit, the driver automatically shuts off and the corresponding LED goes out. The Channel Overcurrent array can be read using the Check Output Status method to locate the faulty channel.

Hot plugging behavior: For modules such as NI 9472/9474/9475, after unplugging and reinserting from the rack, the output will return to the previous value (if FPGA VI is still running); For NI 9263/9264/9265/9269, after unplugging and reinserting, the output becomes powered on (user configurable). Manual recommendation: Do not replace the module with a different type after loading FPGA VI, as this may result in undefined states.

3. CAN interface module (NI 9852/9853)

Common faults of CAN bus include Bus Off, excessive error frames, and inability to wake up the transceiver from sleep.

Bus Off Recovery: The Reset method can fully reset the CAN controller and clear the Bus Off state. Note that resetting will clear the transmit FIFO.

Error frame recording: After enabling the Log Bus Errors property, the CAN Input node will return a frame of type 6 (Bus Error), containing an error counter and error code (ECC), to help locate bus physical issues.

Remote wake-up: After setting the Transceiver Mode to Sleep, if there is activity on the bus, the module should automatically wake up. Use the Wait on Transceiver Wakeup method to wait for a wake-up event. If unable to wake up, check if the terminal resistance and bias resistance comply with ISO 11898-3.

Wiring suggestion: For low-speed/fault-tolerant CAN (NI 9852), LS/FT termination must be set to 1 k Ω or 5 k Ω, depending on the number of nodes.

4. Motion Control Module (NI 9501/9502/9503/9505)

Drive Enable and Fault Clearing: Common Error -65631 (driveNotEnabled) indicates an attempt to output step or PWM when the drive is not enabled. The correct process is:

The Rated Phase Current of the motor must be written when the drive is disabled.

Call the Enable Drive method.

Wait at least 10 ms for the hardware to stabilize.

Output Step/Direction signal.

Fault code interpretation: For example, NI 9502 returns fault code 8 (binary 0000 1000) indicating overcurrent fault, usually caused by motor phase to phase short circuit or high PWM duty cycle. Need to reduce the load or check the motor wiring.

Current sampling timing: The current measurement of NI 9505 has a delay of about 20 μ s. To obtain the average value, sampling should be done at the midpoint of the PWM cycle. The manual provides the compensation formula: tcmd_to-current $sense=(tdesired_comotor-on+750 ns)/2. Failure to compensate can lead to current control oscillations.

Firmware upgrade and module replacement

When a C-series module is damaged or discontinued and needs to be replaced, special attention should be paid to the consistency of the firmware version.

NI 951x firmware upgrade steps:

Ensure that the rack is in scanning interface mode and the scanning engine is in configuration mode (which can be viewed through NI Distributed System Manager).

Right click on the NI 9512/9514/9516 module in the LabVIEW project, select Properties, and then click Check Version.

If the firmware version of the module is lower than the Available Firmware Version, click Download. During the upgrade process, do not power off or unplug the module.

Note: The firmware upgrade only supports traditional cRIO-902x/907x controllers and does not support Linux RT targets (such as cRIO-906x/903x).

Hot replacement precautions:

For most digital output modules (such as NI 9401, NI 9472), the same model module can be unplugged and inserted during system operation, and the output status will automatically recover.

For the analog output module (NI 9263/9264), after unplugging, the output enters the power on state (0 V or 0 mA), and when reinserted, it will not automatically return to the previous value and needs to be rewritten.

Before replacement, it is recommended to stop the data collection of the module through the Stop channel to avoid the I/O node error "I/O Not Started" (error 65582).

Advanced synchronization and trigger optimization

Multi module synchronization is an advanced feature of CompactRIO, commonly used in applications that require precise phase, such as vibration monitoring and motor control.

Main clock source selection:

The onboard clock frequency is 12.8 MHz or 13.1072 MHz, depending on the module type (e.g. NI 9225 uses 12.8 MHz, NI 9218 uses 13.1072 MHz).

When synchronizing multiple modules of different models, the maximum sampling rate is limited by the main clock frequency. For example, if NI 9225 (12.8 MHz internal frequency division) is used as the master clock and NI 9218 (13.1072 MHz) is used as the slave, the maximum sampling rate of the slave will be limited to 50 kS/s (instead of its original 51.2 kS/s).

Trigger delay calculation:

For delta sigma modules (such as NI 9231), the first sampling delay formula is (281.625 * m * n+5.5) * Tmaster, where m is the sampling rate, n is the clock division, and Tmaster is the main clock cycle. When designing FPGA programs, sufficient time should be reserved before the start of the loop, otherwise the first data point will be lost.

Scan clock synchronization:

Use the Scan Clock I/O option to monitor when the scanning engine is transmitting data. By using the Wait on Rising Edge method, it is possible to ensure that reading and writing user-defined I/O variables do not conflict with the scanning engine and avoid data inconsistency.
