NI SCXI Chassis Configuration and Installation Guide

NI SCXI chassis: the reliable cornerstone of signal conditioning system

In modern testing and measurement systems, signal conditioning is a key link connecting sensors and data acquisition devices. The SCXI (Signal Conditioning eXtensions for Instrumentation) series chassis launched by National Instruments provides stable power supply, low-noise backplane environment, and reliable control circuits for SCXI modules. Among them, the SCXI-1000, SCXI-1000DC, and SCXI-1001 chassis are widely used in laboratories, industrial sites, and mobile testing platforms due to their flexible configuration, sturdy structure, and easy maintenance. This article will provide a comprehensive and in-depth technical analysis of the SCXI chassis from the aspects of chassis overview, configuration methods, installation steps, electrical specifications, and common problems.

Chassis model and basic characteristics

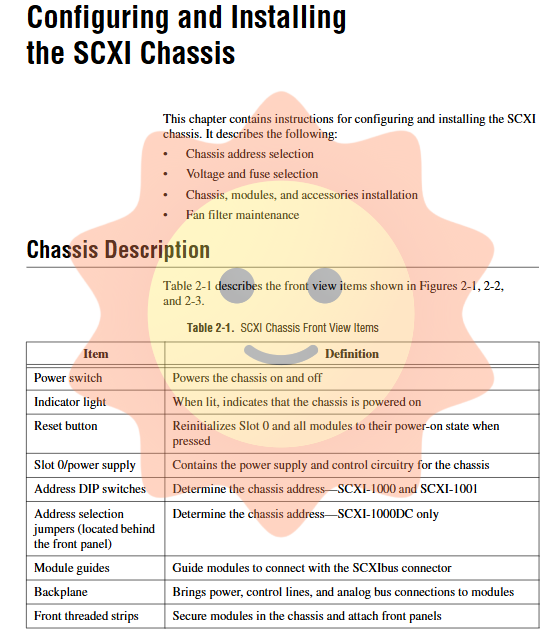

The SCXI chassis is a carrier designed specifically for the SCXI series signal conditioning modules. Each chassis integrates Slot 0 (power and control circuits) and provides communication and analog bus connections for each module through the SCXIbus backplane.

SCXI-1000:4 slot chassis, standard AC power supply (100/120/220/240 VAC, 47-63 Hz), suitable for most laboratory and industrial environments. The maximum AC current consumption varies with voltage: 0.5 A at 100 VAC, 0.6 A at 120 VAC, and 0.25 A at 220/240 VAC. The weight is approximately 3.9 kg.

SCXI-1000DC: 4-channel chassis, powered by DC (9.5 to 16 VDC, nominal 12 VDC), with a maximum DC operating current of 5.5 A (@ 9.5 VDC). Optional SCXI-1382 battery pack or SCXI-1383 DC power supply, suitable for mobile or on-site testing. The weight is approximately 3.3 kg.

SCXI-1001:12 slot chassis, AC power supply, can accommodate up to 12 SCXI modules, suitable for large-scale signal conditioning systems. Its AC current consumption is relatively high: 1.7 A at 100 VAC, 1.5 A at 120 VAC, and 0.8 A at 220/240 VAC. It weighs approximately 6.8 kg.

All chassis provide a low-noise environment, and the analog power lines (V+, V -) and+5V digital power supply on the backplane are filtered and fused to ensure stable module operation.

Chassis configuration: address, voltage, and fuse

1. Selection of chassis address

When only one SCXI chassis is used in the system, the factory default address 0 can be retained. If multiple SCXI chassis need to be connected to the same DAQ device (via a multi chassis adapter), each chassis must be assigned a unique High Level Data Link Control (HDLC) address.

SCXI-1000 and SCXI-1001:

Early versions (Rev D and earlier) used jumper wires to set addresses, while later versions (Rev E and later) used 5-digit DIP switches.

Switches 1-5 represent values 1, 2, 4, 8, and 16, respectively. When turned to the ON position, these values accumulate, and when turned off, they are 0. The address is the sum of the values of each switch.

For example, if switches 1, 2, and 5 are ON (1+2+16=19) and the rest are OFF, then the address is 19. All switches are off by default at the factory, with address 0.

SCXI-1000DC：

Rev D and later versions use three jumpers (located in the Slot 0 area of the front panel, below the reset button) to set the address. When the jumper is closed (short circuited), it represents the corresponding weight, and the address is the sum of each weight.

The weights of jumpers 1, 2, and 3 are 1, 2, and 4, respectively. By combining them, addresses from 0 to 7 can be obtained.

Factory default no jumper closure, address 0.

Note: Earlier versions of SCXI-1000DC do not have address jumpers and can only respond to any address, but cannot be used for multi chassis systems.

2. Voltage selection and fuse replacement (SCXI-1000/1001)

SCXI-1000 and SCXI-1001 support four input voltages: 100, 120, 220, and 240 VAC. The voltage selector is located inside the power entry module (IEC socket) and requires a flathead screwdriver to pry open the protective cover, remove the voltage knob, rotate it to the correct gear, and then reinsert it. Confirm that the voltage displayed in the window is consistent with the local power supply before powering on.

The main power fuse is a 5 × 20 mm slow melting type (SLO-BLO), and its rated current varies with voltage:

At 100/120 VAC: SCXI-1000 uses T0.75A/250V, SCXI-1001 uses T3.0A/250V;

At 220/240 VAC: SCXI-1000 uses T0.25A/250V, SCXI-1001 uses T1.6A/250V.

In addition, there are fuses on the backplane that simulate the positive and negative wires (V+, V -) of the power supply:

SCXI-1000: Two 1.5 A 125V fast melting type (LittleFuse R251 01.5 TI);

SCXI-1001: Two 4 A 125V fast melting type.

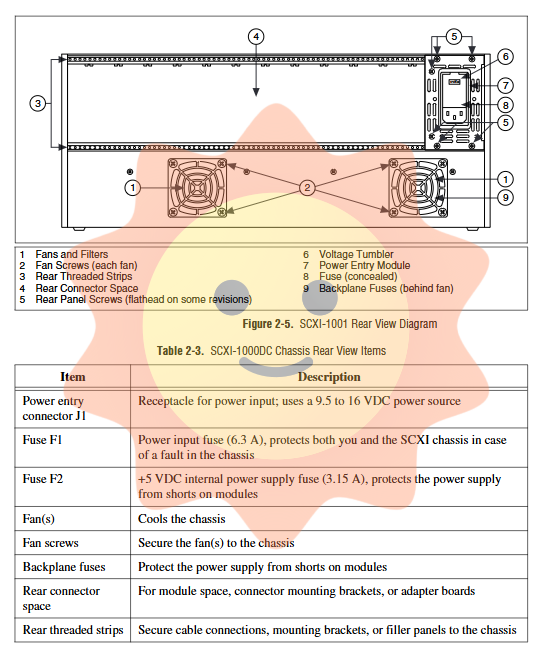

The backplane fuse is located behind the fan (SCXI-1000 behind the fan, SCXI-1001 behind the right fan, near the power inlet module). When replacing, use pointed nose pliers to carefully remove it. The length of the new fuse pin should be trimmed to 6.4 mm, and the length of the body should be 12.7 mm to match the spacing between the sockets.

SCXI-1000DC fuse:

Power input fuse F1: 6.3 A 5 × 20 mm slow melting;

+5 V internal power fuse F2:3.15 A 5 × 20 mm slow melting.

Both are located inside the rear panel fuse holder and can be replaced by turning counterclockwise. The back panel fuse is the same as the SCXI-1000 (two 1.5 A 125V) and is also located behind the fan.

Important warning: When replacing fuses, it is necessary to use fuses of the same type and rating, otherwise it may cause equipment damage or fire hazards. Before disassembling any cover or fuse, be sure to disconnect the power cord.

Chassis installation and module insertion

1. Installation location requirements

Place the chassis on a stable and horizontal surface, leaving at least 10 cm (4 inches) of space behind to ensure smooth fan intake.

For SCXI-1000DC, if using screw terminals for power supply (early versions), strict attention should be paid to polarity: positive terminal connected to+, negative terminal connected to -, reverse connection will permanently damage the chassis.

2. Module installation

Before installing all SCXI modules, it should be confirmed that the chassis address and voltage have been correctly configured.

Slide the module along the module rail, ensuring that the bottom is aligned with the backplane connector and fully inserted, then secure it to the threaded strip with front panel screws.

Important: The SCXI module does not support hot swapping. Inserting or unplugging modules while the chassis is powered on may cause the backplane fuse to burn out, and even damage the digital bus circuit or the module itself. Be sure to turn off the power of the chassis before operating the module.

3. Installation of filling panel

To protect the interior of the chassis and installed modules, unused slots should be equipped with front panel fillers (with fixing screws) and rear panel fillers (fixed to the rear threaded strip with two screws). Fix from the edge in sequence during installation.

Fan filter maintenance

The rear of the chassis is equipped with a brushless fan for cooling. If the filter is clogged with dust, it will reduce the heat dissipation efficiency, cause the internal temperature to rise, and shorten the life of the chassis and modules. The cleaning steps are as follows:

Turn off the power of the chassis and unplug the power cord.

Place the chassis face down so that the fan is located above (if there are too many cables to flip, operate in place, but be careful to support the fan to prevent wire breakage).

Remove the four screws that secure the fan and filter, and then remove the filter.

Gently rinse the filter with cold tap water until the dust is completely removed, then air dry.

Align the filter with the fan, ensuring that the fan label faces downwards (i.e. towards the inside of the chassis), reinstall the four screws and ensure they are securely fastened.

It is recommended to regularly check the condition of the filter screen, especially in dusty environments where cleaning frequency should be increased.

Electrical specifications and load capacity

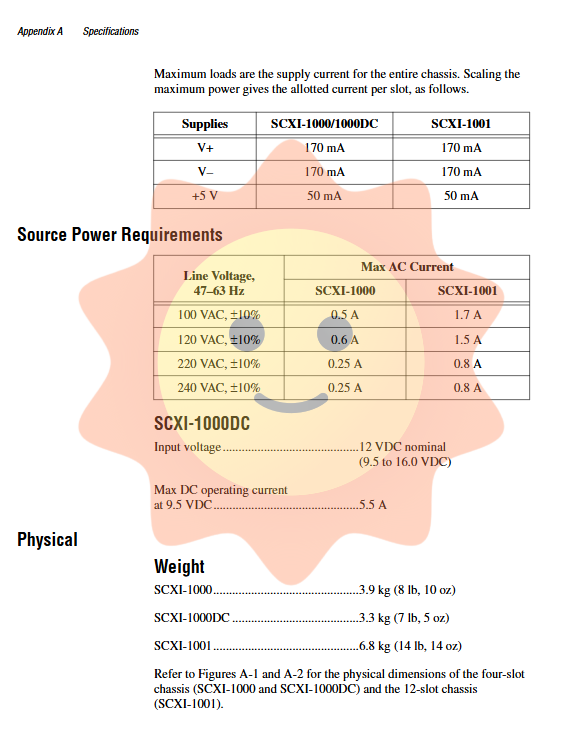

The SCXI chassis backplane provides three sets of power supplies: V+(positive analog power supply), V - (negative analog power supply), and+5V (digital logic power supply). Its output capability is as follows:

Power rail voltage range (including ripple) maximum ripple (peak to peak) SCXI-1000/1000DC maximum load SCXI-1001 maximum load

V++18.5 to+25 V 1.5 V 680 mA 2.04 A

V-18.5 to -25 V 1.5 V 680 mA 2.04 A

+5 V+4.75 to+5.25 V 50 mV 250 mA 600 mA

The overall power consumption of the machine is approximately 7 W per slot. According to the maximum load distribution, the current available for each slot is approximately:

V+/V -: 170 mA/slot (4-slot chassis) or 170 mA/slot (12 slot chassis, actual total load is higher, but each slot is still about 170 mA);

+5 V: 50 mA/slot.

When designing your own SCXI module, ensure that the current in each slot does not exceed the above value, and it is best to install an additional 250 mA fuse inside the module to avoid burning out the backplane fuse due to module failure.

Environmental and Safety Certification

Working temperature: 0 ° C to 50 ° C

Storage temperature: -20 ° C to 70 ° C

Humidity: 10% to 90% RH, no condensation

Maximum altitude: 2000 meters

Pollution level: 2 (for indoor use only)

Safety standards:

Meet the requirements of IEC 61010-1, EN 61010-1, UL 1244, and CAN/CSA-C22.2 No. 61010-1.

Electromagnetic compatibility:

Radiation emission: EN 55011 Class A (at 10 meters), FCC Part 15A (above 1 GHz).

Immunity: EN 61326:1997+A2:2001 Table 1.

The use of shielded cables ensures compliance with EMC requirements.

Compliant with the Low Voltage Directive (73/23/EEC) and EMC Directive (89/336/EEC) with CE marking.

Common problems and troubleshooting

1. The chassis cannot be powered on

Check if the power cord is properly plugged in and if the socket has power.

Confirm that the voltage selection knob setting is consistent with the local power grid.

Check if the main power fuse is blown.

For SCXI-1000DC, confirm that the DC input voltage is within the range of 9.5-16 V and the polarity is correct.

2. When the module is plugged in and out while powered on, the chassis shows no response

SCXI module does not support hot swapping. It is possible that the backplane fuse (V+or V -) has been blown or the digital bus is damaged. Replace the backplane fuse first; If the problem persists, please contact NI technical support.

3. All channel readings are the same (even if different voltages are input)

This is usually caused by the back panel analog power fuse (V+or V -) melting. Check and replace the backplane fuse. At the same time, check whether the module is damaged due to overcurrent.

4. Can the software detect whether the chassis is powered on?

Cannot be directly detected. However, the communication with the configured module can be indirectly inferred by using the SCXI_maduleID_Read function in NI-DAQ or obtaining a specific VI from ni.com/express to determine if the chassis status is normal.
