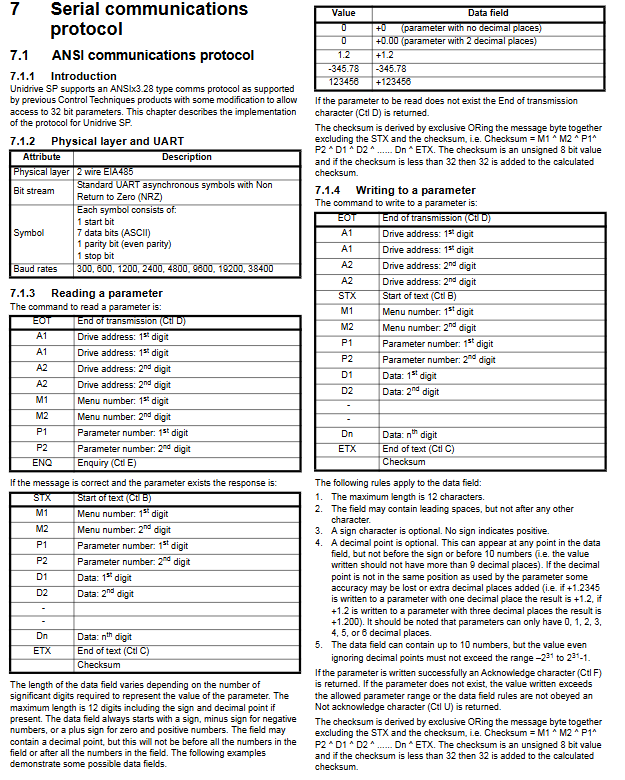

Nidec Unidrive SP troubleshooting

Brake control: Using the brake controller (Pr 12.41) from menu 12, it is more reliable than traditional macros. Pr 12.44 (brake release frequency), Pr 12.46 (delay before release), etc. can be set.

Advanced maintenance function

5.1 Electronic Nameplate

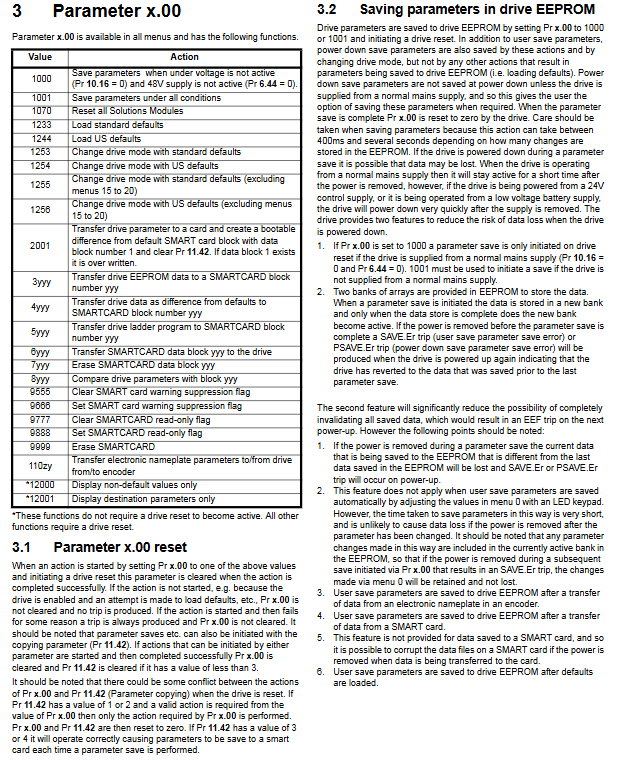

If using Hiperface or EnDat encoders, motor parameters can be stored in the encoder EEPROM. By inputting 110zy through Pr x.00 and resetting the driver, bidirectional transmission can be achieved:

110z0: Write driver parameters to encoder (motor object)

110z1: Read parameters from encoder to driver

110z2/3: Read and write of performance object block 1/2

Where z=0 represents the encoder interface of the drive itself, and z=1-3 corresponds to the Solutions Module slot. After transmission, the driver will automatically save the parameters.

5.2 SMARTCARD parameter backup and recovery

Suggest preparing a SMARTCARD for each Unidrive SP for quick replacement. Common operations:

Backup all parameters: Set Pr 11.42=2 (Prog) and reset, or Pr x.00=3001.

Create differential backup: Pr x.00=4001 (only saves parameters that differ from the default values), suitable for creating macros.

Auto start recovery: Set Pr 11.42 to 4 (boot), insert the card and power on, and the driver automatically loads parameters from the card to the EEPROM.

Erasing card: Pr x.00=9999.

Note: When the rated values of the source drive and the target drive are different, the RA attribute parameters will not be copied, resulting in a C.rtg trip. It can be ignored by setting the "warning suppression flag" (Pr x.00=9666) on the card.

5.3 Quick Configuration Macros

Unidrive SP provides 8 pre-defined macros to simplify typical application settings:

Macro 1: Simple Mode - Display only the most necessary parameters.

Macro 2: Electric potentiometer - adjusts the speed through digital input UP/DOWN.

Macro 3: Preset Speed - Use 2-3 digits to input and select multiple speeds.

Macro 4: Torque Control - Analog given torque, digital switching speed/torque mode.

Macro 5: PID Control - Built in PID for pressure and flow regulation.

Macro 6: Limit Control - Cooperate with limit switches to achieve travel protection.

Macro 7: Brake Control - Crane Brake Logic (Recommended to use Menu 12 as an alternative).

Macro 8: Digital lock/spindle orientation - only in closed-loop mode, achieving master-slave position synchronization.

When calling a macro, it is necessary to first load the default parameters (Pr x.00=1233 or 1244), and then set specific parameters according to the macro instructions (see Chapter 6 of the manual).

Summary of Systematic Troubleshooting Process

When Unidrive SP encounters an exception, it is recommended to follow the following steps to troubleshoot:

Read trip records: Check Pr 10.20 (latest trip), Pr 10.41-10.51 (timestamp). Record the complete trip string (such as OI.AC, Enc5).

Check the basic status: Confirm if the driver is enabled (Pr 6.29=1) and if the Safe Torque Off (terminal 31) is closed. Check the LED status light: green RUN flashing indicates normal, red FAIL on indicates hardware failure.

Analyzing the context of tripping: Did it occur during acceleration or deceleration? Is it under light or heavy load? Have you replaced the motor or encoder?

Refer to parameter correlation: for example, when OV trips, check Pr 2.04 (ramp mode) and Pr 2.08 (standard ramp voltage threshold). If using a braking resistor, check if Pr 10.30/10.31 matches the resistor specifications.

Perform targeted testing: Disconnect the motor load and observe whether it still trips during no-load operation. If possible, use self-tuning (Pr 5.12) to re identify the motor parameters.

Restore backup: If the parameters are accidentally modified, insert SMARTCARD and set Pr 11.42=1 to read back the backup.
