Nidec Unidrive SP Drive Common Troubleshooting and Maintenance Guide

Unidrive SP is a high-performance universal AC frequency converter launched by Nidec Control Techniques, which supports induction motors and servo motors, covering four working modes: open-loop V/F, closed-loop vector, servo, and feedback. With its flexible menu parameter structure, rich I/O interfaces, and scalable Solutions Module, Unidrive SP is widely used in industrial automation, machine tools, lifting, packaging, and other fields.

However, during on-site operation, it is inevitable for the driver to experience alarms, trips, or abnormal performance. This article is based on the core technical information of the Unidrive SP Advanced User Manual, and compiles a systematic troubleshooting and maintenance guide to help engineers quickly locate problems and reduce downtime.

Parameter Structure and Access Fundamentals

2.1 Menu and Parameter System

The parameters of Unidrive SP are organized by menu, with menu 0 being the simplified quick access area and menus 1-22 being the advanced parameter area. By default, only menu 0 is displayed after power on. To access all menus, Pr 0.49 (Security status) needs to be set to L2 (1).

Menu 1: Frequency/Speed Given

Menu 2: Acceleration and deceleration ramp

Menu 3: Speed Feedback and Control

Menu 4: Torque/Current Control

Menu 5: Motor Control Parameters

Menu 6: Timing and Clock

Menu 7: Analog I/O

Menu 8: Digital I/O

Menu 10: Status and Trip Records

Menu 11: Basic Drive Settings

Menu 12: Threshold detection and brake control

Menu 13: Position Control

Menu 14: User PID

Menu 15-17: Expansion module slots

Each parameter has a "Coding" attribute (such as RW/RO, US, NC, RA, etc.), where US represents user saved, NC represents unclonable, and RA represents rated value related.

2.2 Status Display and Alarm

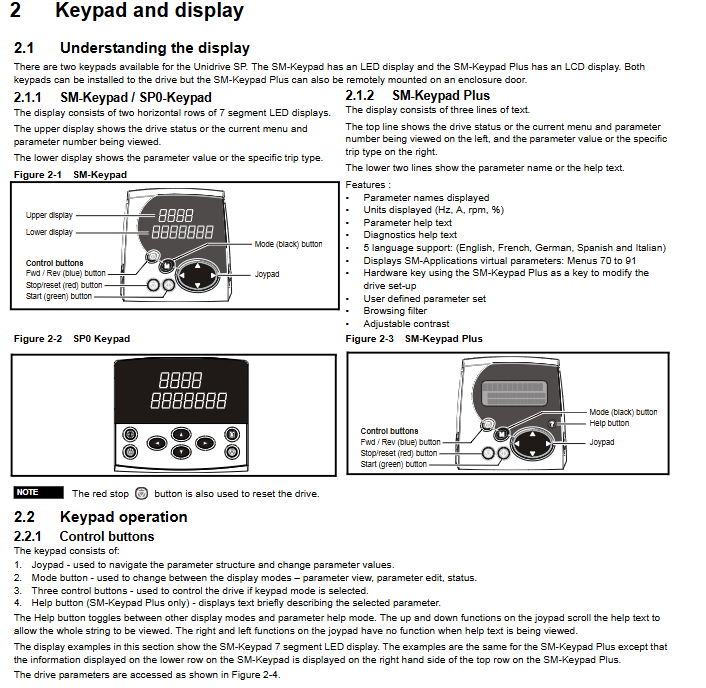

The driver status is displayed through LED or LCD keyboard, and common statuses include: inh (prohibited), rdY (ready), StoP (stopped), run (running), and triP (tripped). The alarm information will flash and display, for example:

Br.rs: Brake resistor overload

OVLd: Motor overload

Hot: The radiator or control board is overheating

Auto tune: self-tuning in progress

When the driver trips, the first line displays triP and the second line flashes the trip code. The last 10 trip records are saved in Pr 10.20 to Pr 10.29, and the timestamps can be viewed through Pr 10.41 to Pr 10.51.

Analysis and Handling of Common Fault Codes

3.1 Power supply and overvoltage/undervoltage faults

Code meaning investigation method

UV DC bus undervoltage check input power supply voltage, measure whether the DC bus is below the threshold (200V drive: 175Vdc). Confirm whether the main power contactor is closed and whether the fuse is blown.

The overvoltage acceleration and deceleration slope of the OV DC bus is too steep (increasing the deceleration time by Pr 0.04), and the braking resistor is not connected or the resistance value is too high. Check if the brake IGBT is short circuited. For parallel multi module systems, check OV. P.

PS.24V 24V internal power supply overload digital output total load exceeds 200mA, or encoder power supply overcurrent. Reduce external load and use an external 24V power supply.

Experience tip: When the driver is powered by a 24V backup power supply (Pr 6.44=1), the UV trip will not automatically save the power-off parameters. If UV frequently occurs, the low voltage battery voltage (Pr 6.46 setting) should be checked.

3.2 Overcurrent and overload faults

Code meaning investigation steps

OI.AC instantaneous overcurrent check whether the motor cable is short circuited or grounded. Reduce the current loop Kp gain (Pr 4.13). For large inertial loads, increase the ramp time or activate the S-ramp (Pr 2.06).

The continuous working time of the IGBT overload braking resistor exceeds the Pr 10.30 set value. Check the brake duty cycle and increase Pr 10.31 (full power braking cycle).

O. HT2 power module overheating check cooling fan (Pr 6.45 can be forced to run at full speed), clean the air duct. SP6xxx and above models have independent fan fault detection.

O. Ld1 digital output overload terminal 24-26 total current exceeds 200mA. Measure each output load and install intermediate relays if necessary.

Current loop gain adjustment: For closed-loop vector or servo modes, the current loop proportional gain Pr 4.13 is determined by the motor transient inductance (Pr 5.24). If replacing the motor or long cable, it is necessary to recalibrate (Pr 5.12=2 rotation self-tuning). Typical experience value: 400V drive, Kp=150，Ki=2000。

3.3 Encoder/Feedback Fault

Unidrive SP supports multiple encoder types (incremental, SinCos, Hiperface, EnDat, SSI, and rotary transformers). The encoder related trips are concentrated in Enc1 to Enc17:

Solution to code meaning

Enc1 encoder power overload check encoder power supply voltage (Pr 3.36 set to 5V/8V/15V), confirm that the current does not exceed 200mA@15V or 300mA@8V /5V。

Enc2 signal line disconnection enables terminal resistance (Pr 3.39 setting). Check the wiring of A/A - and B/B. For SinCos, if Sin ²+Cos ² is lower than 0.25Vpp, a disconnection will be reported.
