HMS Anybus X-gateway Troubleshooting and Configuration Guide

Industrial sites often require the connection of automation equipment from different manufacturers and protocols. The Anybus X-gateway is an intelligent protocol gateway launched by HMS, which integrates two Anybus-S network interface cards and forwards data bidirectionally through a gateway platform. It can realize the interconnection of any two networks such as PROFIBUS, Modbus, EtherNet/IP, PROFINET, CANopen, etc., and supports mixed master/slave configuration.

Although gateway design emphasizes plug and play, in actual operation, communication interruptions, data asynchrony, and loss of slave stations may still occur. This article is based on the core technical information of the Anybus X-gateway user manual, and compiles a systematic troubleshooting and configuration optimization process to help engineers diagnose and restore gateway operation without the need for specialized software, using only terminal simulation tools.

System Architecture and Data Exchange Fundamentals

2.1 Internal Data Flow

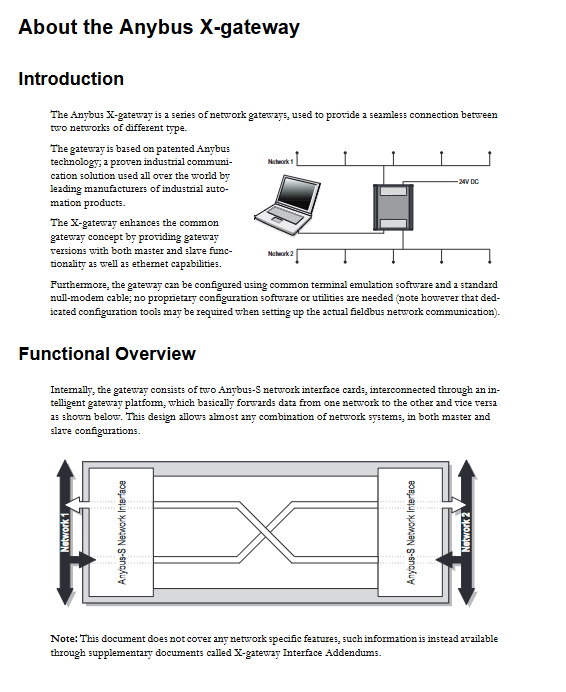

The Anybus X-gateway contains two independent network interfaces (called Upper and Lower), each with its own input/output buffer. The gateway periodically copies input data from one side to the output buffer on the other side, and vice versa. Each buffer can support a maximum of 512 bytes, but the actual amount of data that can be exchanged depends on the limitations of the specific network protocol.

Fault prompt: If data is only transmitted in one direction or not updated at all, first check whether the I/O data length configuration of the two interfaces matches, and whether the control word/status word function is enabled (which will occupy additional mapping space).

2.2 Loop I/O and Non Loop Parameter Data

Most fieldbuses distinguish between cyclic I/O data (fast, periodic) and non cyclic parameter data (slow, on-demand access). The X-gateway processes these two types of data separately:

Input I/O data size: The number of bytes of cyclic data sent from the gateway to the network.

Output I/O data size: The number of cyclic data bytes received and forwarded from this network to the other side.

Input/Output Parameter data size: Non cyclic data length, typically used to read diagnostic information or configure slave parameters.

If the parameter data area is set too small, it may result in the inability to read some extended diagnostic information from the slave station; Setting too large will waste bus bandwidth.

2.3 Control Words and Status Words

To enhance remote diagnostic capabilities, X-gateway allows Control Word and Status Word to be enabled for each network interface (disabled by default).

Control Word (16 bit):

Bit 0-7: Main station mode control (only valid for main station configuration)

Position 15: Reset gateway (1 triggers restart)

Status Word (16 digits):

Bit 0-3: Gateway cycle counter (increment 1 for each successful data forwarding)

Bit 4-7: Universal error counter (increment 1 when gateway cycle exceeds 100ms)

Bit 8-11: Master station mode status (visible only to the opposite network)

Bit 12: Init bit (1 indicates that the other network interface has been initialized)

Bit 13: Run bit (1 indicates that the other side of the network is online/running)

Typical fault: If the error counter in Status Word continues to increase but the gateway is not completely offline, it is usually due to slow response time on one side of the network (such as too long PROFIBUS bus cycle setting or too many slave stations). At this point, the configuration of the master station should be checked to reduce the number of polling slave stations or increase the bus cycle time.

Common fault types and troubleshooting steps

3.1 Complete communication interruption (LED red light)

The front panel of the X-gateway has two sets of status LEDs (two per set, usually green/red):

Meaning of LED color

Green constant light communication is normal

Red constant light communication fault (such as network cable disconnection, bus conflict)

Red flashing network interface hardware failure (such as firmware damage)

Extinguish without powering on

Troubleshooting steps:

Confirm that the 24V power supply is functioning properly (measured voltage between 21.6-26.4V).

Check the physical connection of the corresponding network (such as PROFIBUS terminal resistance, EtherNet/IP network cable on/off).

Enter the Operating Status Information menu through the configuration interface and view the "Module status" and "Network status" of the interface.

If "Module status: Initialised" is displayed but "Network status: Offline" is displayed, it indicates that the interface initialization was successful but bus communication was not established (possibly due to the main station not being started or station address conflicts).

If the network interface indicator light flashes red, try restarting the gateway (using the control word to reset or power on again). If the fault persists, it may be necessary to re download the firmware or repair it.

3.2 Data mapping errors or numerical jumps

When the gateway has connected the networks on both sides, but the data read by the PLC does not match the actual physical quantity or frequently jumps, the data mapping should be checked:
