OMRON D4SL-N/D4SL-NSK10-LK Safety Door Switch Comprehensive Guide

Common troubleshooting guide

Possible causes and solutions for the fault phenomenon

After the door is closed, it cannot be locked (the key can be removed). 1. Electromagnetic lock type, power on first and then close the door

2. The mechanical lock coil is not powered off. 1. Modify the PLC program to ensure that the signal for closing the door in place is connected before outputting power to the coil

2. Check the coil control logic

The safety circuit cannot be reset after the door is closed. 1. The door monitoring contact does not move (the key is not inserted deeply enough)

2. The lock monitoring contact does not move (the lock tongue is not in place). 1. Adjust the key installation position to ensure that the pre travel is ≥ 15mm

2. Check the door stopper to ensure that the key is in the set area (0.5-3mm)

Electromagnetic coil burnt or abnormally heated 1. Voltage exceeding 28.8V

2. Maintain current circuit fault (always in startup current mode) 1. Check the stability of the 24V power supply

2. Replace the switch

The sliding key can still slide after being locked. 1. The locking key has not been rotated into place

2. The internal locking mechanism is damaged. 1. Confirm that the locking key is rotated to "SLIDE LOCK" and aligned with the mark

2. Check if the mechanical durability exceeds the limit (>20000 times)

The indicator light is not on (with LED model). 1. The coil power supply is normal, but the LED is damaged

2. Reverse polarity (orange light has polarity) 1. Use a multimeter to measure E1/E2 voltage

2. Swap E1/E2 wiring

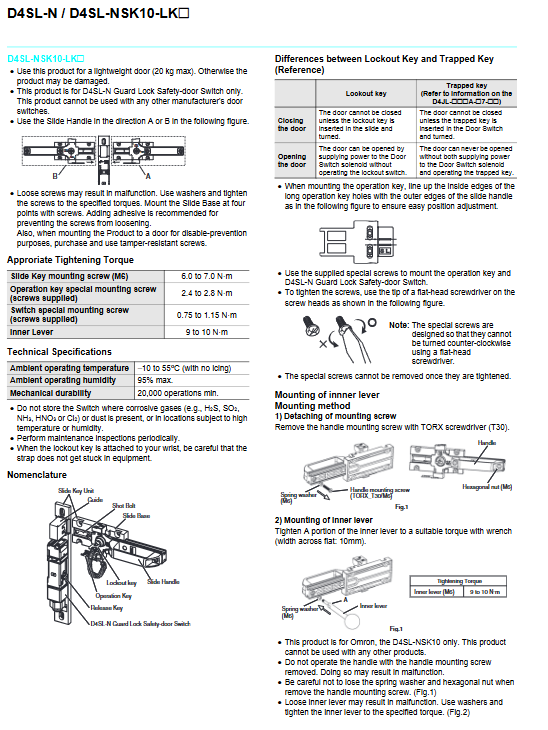

10. Maintenance and lifespan management

Mechanical durability of switches: The overall lifespan is not explicitly stated in the manual, but the engagement lifespan of electromagnetic coils can typically reach hundreds of thousands of times. It is recommended to replace it regularly according to the actual load (current, on-off frequency), usually every 2 years or 1 million operations for inspection.

Mechanical durability of sliding key: ensuring more than 20000 operations (including reciprocating sliding handle and locking key rotation). After reaching this number, it is necessary to check the wear of the plastic guide rail and the deformation of the locking keyhole.

Environmental requirements: Avoid corrosive gases such as H ₂ S, SO ₂, NH ∝, HNO ∝, Cl ₂, etc; Storage temperature -25~70 ℃.

Daily inspection: Manually test the door lock function at least once a month - try to remove the key while powered on, but it should not be able to be removed; After pressing the emergency stop or disconnecting the safety relay, the key should be able to be smoothly removed (mechanical lock type).

Typical Application Circuit Example (PL e Level)

The following is the recommended safety circuit architecture by Omron:

Input: Connect the door monitoring NC contacts (such as 11-12) of the D4SL-N door lock switch in series to the input terminal of the safety relay; The lock monitoring NC contacts (such as 33-34) are also connected in series to another channel of the same safety relay.

Logic: After the safety relay (such as G9SE-201) detects that both channels are closed (door closed and locked), it allows the manual reset button to take effect, and then closes the internal safety output contacts.

Output: Safety contact controls the main contactor (motor, driver power supply). Before resetting, ensure that the electromagnetic lock coil is powered on (for electromagnetic lock type) or the mechanical lock coil is powered off (for mechanical lock type).

Be sure to install the reset button outside the hazardous area and require manual reset (non automatic reset) to prevent the device from restarting immediately after the door is accidentally closed.
