Emerson Ovation ™ Power system (5X00785G09)

Service life: Under an ambient temperature of 40 ° C and a 10A load, the expected service life of a 20A power module is 15 years, which is more durable than the 10A solution.

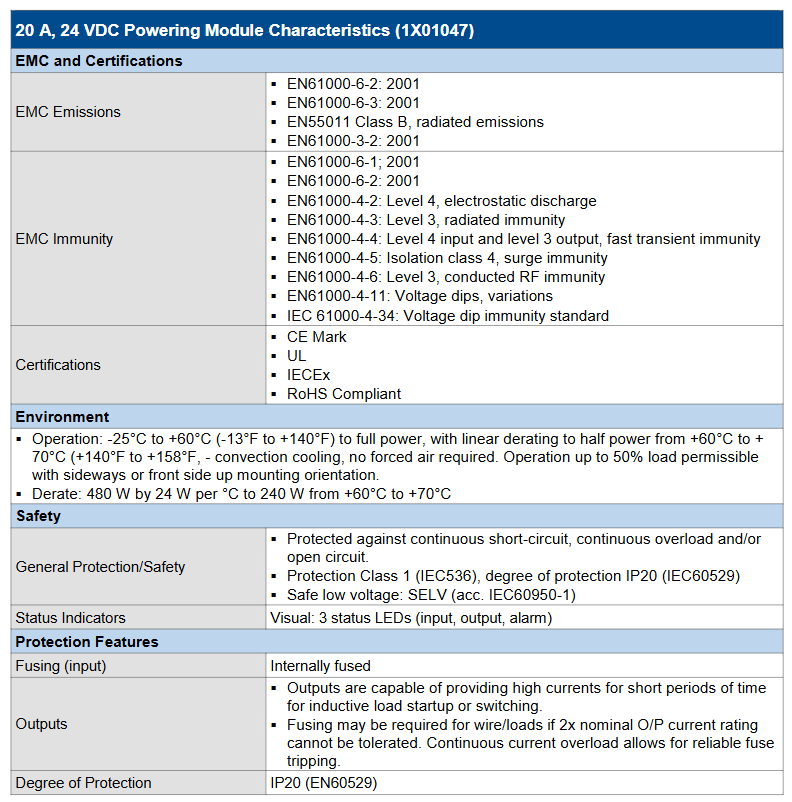

Core parameters (1X01047 module)

Input characteristics: Consistent with the input range of 10A module (85-264 VAC/90-375 VDC), rated current of 6-3 A, maximum surge current<40 A, also supports active power factor correction (>0.92) and single-phase AC input.

Output characteristics: Rated output voltage of 24 VDC (adjustable range 23.5-28.5 VDC), initial voltage setting and total tolerance consistent with the 10A module; Output ripple<100 mVpp (20 MHz, 50 Ω); The rated output current is 20 A, and the peak current and short-circuit current characteristics are the same as those of the 10A module (1.5 times the rated current); The overvoltage protection threshold is also 30.5-33 VDC (automatic recovery).

Environment and stability: The working temperature range and derating rules are consistent with the 10A module (power decreases by 24 W for every 1 ° C increase from 60 ° C to 70 ° C, and then decreases to 240 W); The voltage holding time, drop time, and drift parameters are the same as those of the 10A module to ensure output stability.

Certification and anti-interference: EMC anti-interference standards, safety certifications (CE, UL, IECEx), and RoHS compliance are consistent with 10A modules, and additionally comply with EN55011 Class B radiation emission standards for better electromagnetic compatibility.

Safety and Protection

Universal protection: All modules have continuous short circuit, continuous overload, and open circuit protection; The input side is equipped with a built-in fuse, and the output side can choose whether to additionally fuse according to the load requirements (if unable to withstand twice the rated output current); Compliant with the Safety Low Voltage (SELV) standard according to IEC60950-1, reducing the risk of electric shock.

Physical protection: Adopting a fully enclosed metal shell, equipped with fine ventilation grilles to block small components from entering, with a protection level of IP20 (EN60529), suitable for industrial site environments.
