How to install ABB S500 series heavy-duty circuit breaker?

来源: | 作者:FAN | 发布时间 :2025-08-08 | 9 次浏览: | Share:

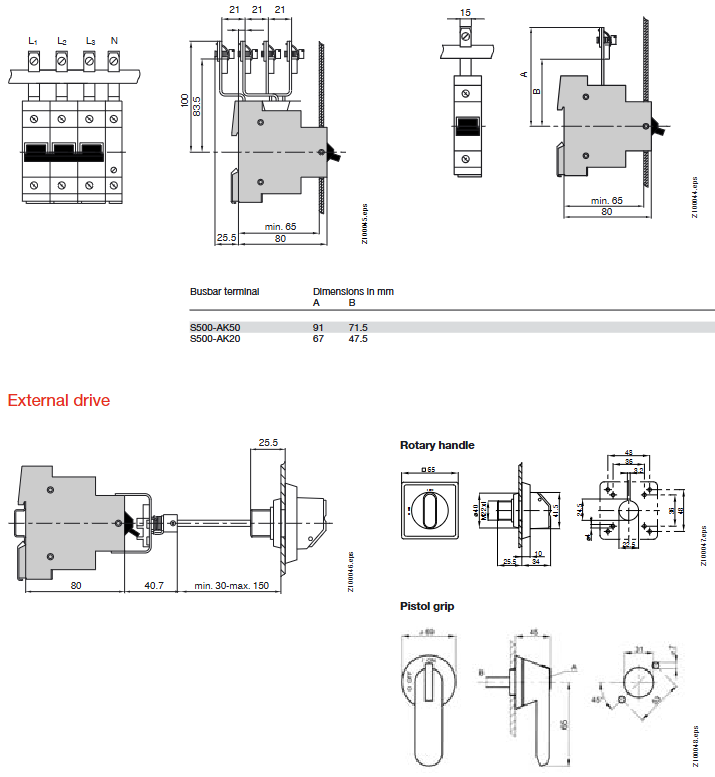

Installation and Dimensions

Installation method: S500 circuit breaker is designed for snap fit installation on standard 35mm rails.

Size: The size of products varies depending on the type and number of poles, for example, the 2-pole F502 series has a width of 75mm, the 3-pole F503 series has a width of 100mm, and the 4-pole F504 series has a width of 125mm.

Safety distance: There are specific safety distance requirements between grounding components, insulation covers or wiring pipelines, and exposed live parts.
