SAIA PCD4.W500/W600 Intelligent Simulation Module
Accurate acquisition and reliable output of analog signals are the foundation of process control in industrial automation and building control systems. The W500 and W600 intelligent analog modules in the Saia PCD4 series provide 8-channel isolated analog input and 8-channel isolated analog output, respectively, and have built-in microcontrollers that can locally execute intelligent functions such as continuous measurement, proportional conversion, user scaling, comparator, wire breakage detection, synchronous updates, etc., significantly reducing the burden on the central CPU. This article will provide a comprehensive and in-depth technical analysis of these two modules from the aspects of hardware architecture, technical specifications, range modules, standard mode, expansion mode (functional blocks and FBox), configuration methods, and programming examples.
Programming language: As analog reading and writing are sequential processes, it is recommended to use GRAFTEC (Sequential Function Diagram) to avoid using wait loops (such as JR H-1) that consume CPU.
Timeout handling: All FBs have a timeout flag, which should be checked in the program to prevent module failures from causing the program to hang.
Typical application scenarios
W500: Multi channel temperature acquisition (Pt100/Ni1000), process variable monitoring (pressure, flow transmitter 4... 20 mA), high-speed voltage/current signal recording (continuous mode, 15 bit resolution), threshold alarm with comparator (no CPU involvement required).

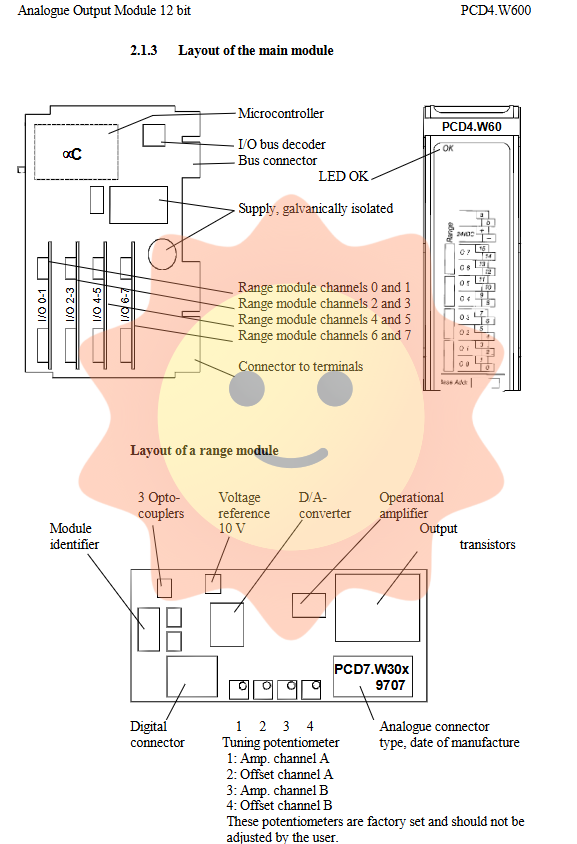

W600: Proportional valve control (synchronously updating multiple valves), analog set value output (such as frequency converter speed given), user scaling adaptation to non-standard sensors, power on safety output preset value.
