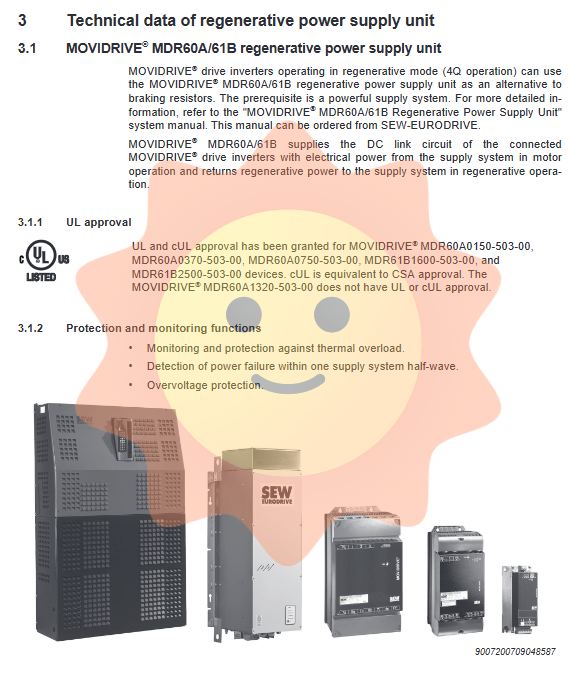

SEW-EURODRIVE MOVIDRIVE B Series Manual

Shielding clip is used for grounding the shielding layer of motor and braking resistor cables to ensure high frequency and low impedance.

For sizes 4-7, touch protection covers (such as DLB11B, DLB21B) need to be installed to achieve IP20 protection level.

4.2 EMC compliant installation (EN 61800-3)

Shielded cables: All signal cables must be shielded and grounded extensively at both ends. The motor cable can be shielded or an HD output choke can be used.

Line filter (NF series): used to meet C1 or C2 class limits, installed near the frequency converter, with a connection length of ≤ 400 mm.

Output choke (HD series): Only the U, V, and W phases pass through the magnetic core, and the PE line does not pass through. HD001- HD003 are suitable for different cable cross-sections.

Output filter (HF series): Sine filter, only used for VFC and V/f modes, not for elevator applications. Pay attention to voltage drop and PWM frequency limitation when using (12/16 kHz requires connection to DC bus terminal V5).

4.3 IT Systems

MOVIDRIVE ®  B is allowed to run on IT systems (ungrounded star points), but EMC limits do not apply. It is recommended to use an insulation monitoring instrument with pulse coding measurement to avoid false tripping caused by the grounding capacitance of the frequency converter.

Communication and Options

5.1 System Bus (SBus)

Based on CAN bus (ISO 11898), up to 64 stations. Cable requirements: twisted pair shielding, 0.25-0.75 mm ², characteristic impedance 120 Ω. Baud rate and bus length: 125 kBaud → 500 m, 1000 kBaud → 40 m. The terminal resistor S12=ON needs to be connected at the beginning and end stations.

5.2 RS485 interface

Used to connect up to 32 devices, with a fixed baud rate of 9.6 kBaud, a maximum length of 200 m, and built-in dynamic terminal resistors.

5.3 Fieldbus Options

PROFIBUS DFP21B: 12 Mbaud, DP-V1 support, GSD file SEW_6003.GSD.

INTERBUS DFI11B/DFI21B: 500 kBaud/2 MBaud, DFI21B supports fiber optics.

PROFINET IO DFE32B：100 Mbaud， Dual RJ45 switch, integrated with web server.

EtherNet/IP&Modbus TCP DFE33B: Supports DHCP, dual ports.

EtherCAT DFE 24B: 100 Mbaud, CoE, and VoE services.

DeviceNet DFD11B：125/250/500 kBaud， 5-pin Phoenix terminal.

CAN/CANopen DFC11B：125 kBaud–1 MBaud， 9-pin D-sub or terminal.

5.4 Encoder Options

DEH11B：HIPERFACE ®  Encoder card, supporting sin/cos, TTL, HIPERFACE ®。 X14 can be used as an external encoder input or incremental simulation output.

DER11B: Rotary transformer card, 2-pole, 7 V, 7 kHz. X14 simulation output fixed 1024 pulses per revolution.

DEU21B: Multi encoder card, supports incremental SSI、EnDat、HIPERFACE ®、 CANopen, providing 24V/12V encoder power supply.

DEH21B/DIP11B: SI absolute encoder interface, DIP11B also provides 8 additional digital I/O.

5.5 Safety Options

DFS11B/DFS12B：PROFIBUS DP-V1 with PROFIsafe， Integrated STO safety output (1 A, 24 V).

DFS21B/DFS22B：PROFINET IO with PROFIsafe， Also provide secure output.

DCS21B/22B/31B/32B：MOVISAFE ®  The safety module can achieve stop category 0, 1, 2 and speed/direction/position monitoring, with a maximum SIL of 3/PL e.

BST brake module: safety related brake control, supports AC 230/400/460 V brake coils, power ≤ 120 W.

5.6 Controller and I/O Expansion

DHP11B：MOVI-PLC ®  Basic controller, IEC 61131-3 programming, PROFIBUS slave, 2 SBus interfaces.

DHE/DHF/DHR21B/41b: High performance motion and logic controller, supporting Ethernet, PROFIBUS, PROFINET, etc.

DIO11B: I/O expansion board, with 8 digital inputs, 8 digital outputs, 2 analog inputs, and 2 analog outputs.

Startup and parameter debugging

6.1 Startup Tool

DBG60B keyboard: backlit text display, 21 keys, IP40。 Supports VFC/V/f mode startup, can copy parameter sets, and has parameter memory function.

MOVITOOLS ®  MotionStudio: Engineering software that provides communication establishment, parameterization, startup wizard, oscilloscope (SCOPE), and IPOSplus ®  Programming. Supports multiple channels such as RS485, SBus, Ethernet, EtherCAT, PROFIBUS, etc.

6.2 Quick Start Process (Taking DBG60B as an Example)

Ensure that X13:1 (DI00 "/Controller inhibit") is a "0" signal.

Enter the context menu and select 'STARTUP'.

Select the parameter set (1 or 2) and choose the motor type (SEW or third-party).

Enter the motor nameplate data (rated voltage, frequency, current, power, cos φ, speed).

If using an encoder, select the encoder type and resolution.

Set closed-loop stiffness (default 1.0), input load inertia and minimum ramp time.

Perform calculations and save parameters.

After startup, it is recommended to activate the encoder monitoring (P504=ON).

6.3 Key parameter group (partial)

P0_: Display values (speed, current, temperature, fault memory, etc.).

P1_: Set value and ramp generator (analog input, fixed set value, motor potentiometer, ramp time).

P2_: Controller parameters (speed loop gain, integration time, acceleration feedforward).

P3_: Motor parameters (speed limit, current limiting, Boost, IxR, slip compensation, pre magnetization time).

P4_: Reference signal (speed/current threshold, window comparison).

P5_: Monitoring function (speed monitoring, encoder monitoring, synchronous operation monitoring).
