Siemens SENTRON intelligent circuit protection equipment: full analysis of communication, measurement, and digital management

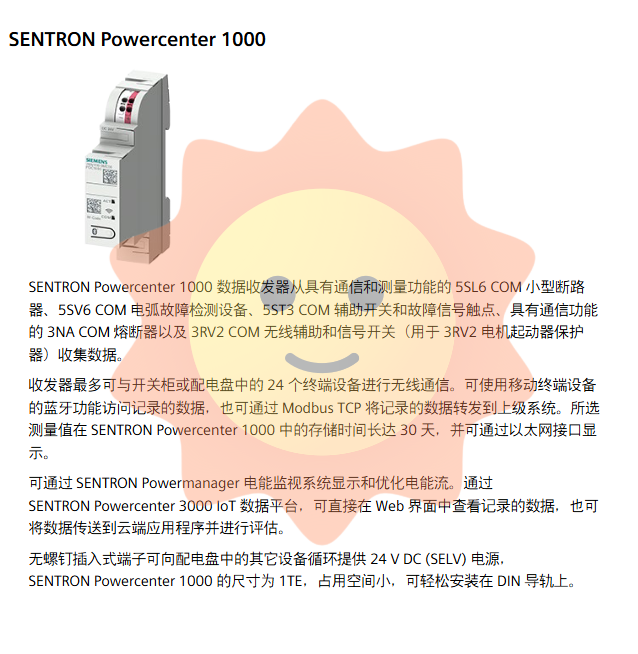

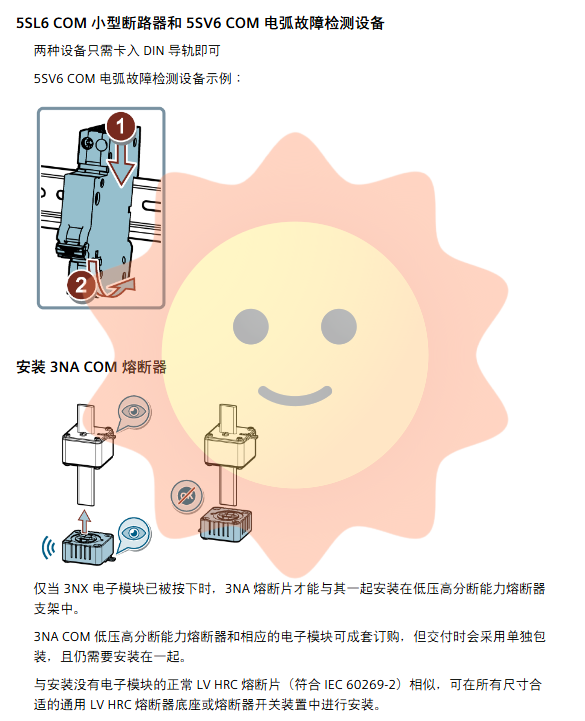

Power connection: 5SL6 COM and 5SV6 COM need to be connected to the phase line and neutral line (230V AC); Powercenter 1000, 5ST3 COM, etc. use 24V DC power supply and support screw free terminal daisy chain connection.

4.2 Debugging Process

Device addition: Use the mobile application "SENTRON Powerconfig mobile" or PC software "SENTRON Powerconfig" to add the device to the project by scanning the Data Matrix Code (including RF code) on the device or manually entering the MAC address and installation code.

Pairing Connection: Pair the terminal device with Powercenter 1000 in the application to establish a secure wireless connection.

Parameter settings: configurable device name, alarm threshold (current, voltage, temperature, residual current, etc.), radio transmission power, time zone synchronization, etc.

Data viewing: Real time viewing of measurement values, alarm information, trend curves, and support for exporting project files (. splx format) for backup or migration.

4.3 Advanced Features

Time synchronization: Supports SNTP protocol to ensure consistent timestamps for all devices, facilitating event sorting and analysis.

Firmware update: Unified push through Powercenter 1000, supporting wireless upgrade of the entire system.

Modbus TCP integration: Provides a complete register mapping table for third-party systems (such as SCADA, energy management systems) to directly read data and control devices.

Intelligent diagnosis, warning and maintenance support

5.1 Multi level alarm mechanism

The device supports multiple types of alarms, including:

Electrical parameters exceeding limits: overcurrent, undercurrent, overvoltage, undervoltage, high temperature.

Lifespan warning: The number of operation cycles, trip times, and running time are approaching the set threshold.

Residual current alarm: RCM equipment can provide segmented warnings for AC or pulsating DC residual current.

Status alarm: equipment trip, communication interruption, self-test failure, etc.

Alarm can be notified to users in real-time through various methods such as LED indicator lights (flashing frequency and color differentiation level), mobile application messages, Modbus TCP status words, etc.

5.2 Data Recording and Traceability

Powercenter 1000 stores key trend data (such as current, voltage, power, temperature, etc.) with a time resolution ranging from 10 seconds to 1 day, and can be saved for up to 30 days. By combining event logs (such as trips, alarms, parameter changes), users can trace the historical status of the system and analyze the root cause of faults.

5.3 Predictive Maintenance Support

By continuously monitoring electrical parameters and equipment status, the system can identify potential risks in advance, such as line overload, insulation degradation, and contact overheating, to avoid unexpected power outages. Statistical information such as operating hours and frequency of operations also provide a basis for planned replacement and maintenance.

Typical application scenarios and system integration

The SENTRON intelligent circuit protection system is suitable for various distribution scenarios that require high reliability, visualization, and remote management:

Commercial buildings and data centers: Real time monitoring of energy consumption in each circuit, warning of overload, and rapid fault location.

Industrial production line: Monitor motor branch current and temperature to prevent shutdown caused by overload or insulation failure.

Infrastructure and Public Facilities: Remote Operation and Automatic Recovery Function (ARD) enhances power supply availability.

Renovation project: Quickly upgrade existing circuit breakers by adding communication modules (such as 5ST3 COM) without the need to replace the main equipment.

The system can be seamlessly integrated into the Siemens digital ecosystem:

SENTRON Powermanager: A professional energy management system that conducts in-depth energy efficiency analysis and generates reports.

SENTRON Powercenter 3000: IoT gateway that provides web visualization, data archiving, email alerts, and cloud connectivity (such as MindSphere).

Third party platform: Connect to various SCADA, BMS, or self-developed platforms through the standard Modbus TCP protocol.

7、 Safety and Compliance

Electrical safety: All equipment complies with relevant standards such as IEC and EN, and the protection function is independent of the communication module, ensuring reliable tripping even in case of communication interruption.

Communication security: Wireless pairing uses a unique installation code and AES-CCM encryption, and Bluetooth connections require PIN code verification.

Network security: Supports firewall, static IP, VPN access. It is recommended to deploy and restrict external access within the local area network.

Complete certification: The equipment has multiple certifications such as CE, RED, VDE, KEMA, etc., and complies with radio and EMC specifications.
