Comprehensive analysis and detailed explanation of key technologies for SIEMENS SIMADYN D hardware system



Comprehensive analysis and detailed explanation of key technologies for SIEMENS SIMADYN D hardware system

Introduction

SIMADYN D is a high-performance automation control system launched by Siemens, widely used in the fields of industrial drive, motion control, and complex process automation. This system, with its modular design, powerful real-time processing capabilities, and flexible scalability, performs excellently in high demand applications such as steel, printing, packaging, and ship propulsion. This article is based on the official hardware manual (Edition 04.2011), which systematically outlines the hardware architecture, key module technologies, installation specifications, and electromagnetic compatibility (EMC) guidelines of SIMADYN D. The aim is to provide a comprehensive and in-depth technical reference for engineering design, system integration, and maintenance personnel.

System Overview and Architecture Design

SIMADYN D adopts a modular and distributed architecture, with core components including subracks, CPU modules, input/output modules, communication modules, and specialized technical modules. The system supports multiple rack specifications, such as SR6, SR12, SR24, and specialized technology rack SRT400, which can flexibly adapt to automation tasks of different scales.

1.1 Rack and Power System

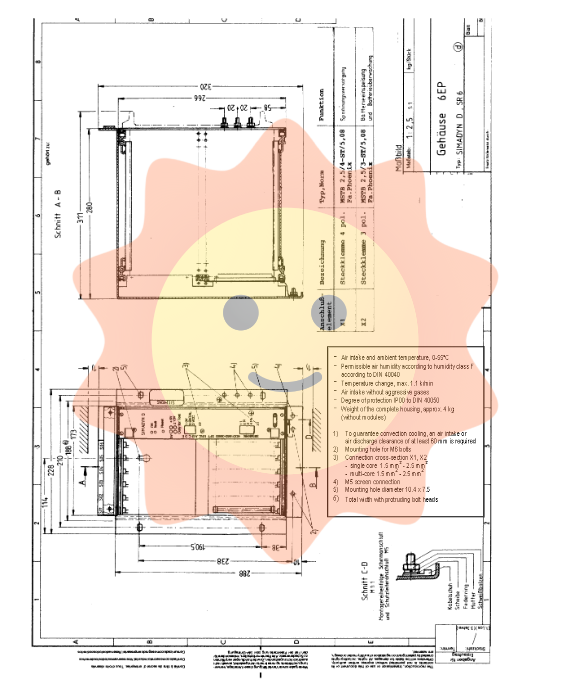

The rack is not only the physical load-bearing foundation of the module, but also integrates power management and backplane bus. For example, the SR6 rack provides 6 slots, built-in SP7 power module, supports 230V AC input, outputs+5V, ± 15V voltage, and has voltage monitoring and battery backup functions. The SR12/SR24 rack supports 12 or 24 slots, with optional 24V DC or 115/230V AC inputs, equipped with fan cooling, suitable for larger systems. All racks emphasize good grounding and shielding design to ensure anti-interference capability in industrial environments.

1.2 Advantages of modular design

The module size of SIMADYN D is uniformly 233.4 mm × 220 mm, and data exchange and power supply are carried out through the backplane bus (L bus and C bus). This design is not only easy to maintain and upgrade, but also supports multi CPU parallel processing and distributed control strategies. Users can select CPUs, digital/analog I/O, communication interfaces, and specialized functional modules (such as encoder interfaces and driver control modules) according to their actual needs to achieve highly customized solutions.

Detailed explanation of core functional modules

2.1 CPU modules: PM5 and PM6

The CPU module is the computational core of the system. PM5 adopts a 32-bit RISC processor with a main frequency of 32MHz, equipped with 4MB DRAM and 64KB backup SRAM, supporting a fast cycle time of 0.1ms, suitable for general open-loop and closed-loop control tasks. PM6 has stronger performance, with a clock frequency of up to 64/128MHz and DRAM expandable to 8MB (upgradable to 16MB), making it suitable for applications with larger program volumes and more complex calculations.

Both provide:

8 digital inputs (some can be configured as interrupt inputs)

Supports connecting absolute encoders (SSI/EnDet) and incremental encoders (HTL 15V)

Integrated RS232 service interface (DUST1 protocol, 19.2kbps) for program download and debugging

7-segment LED display module status and diagnostic information

Optional "Hardlock PAL" hardware encryption to protect user programs

2.2 Input/output module

EA12 module: Provides 8 analog outputs (± 10V, 13 bit resolution, with short-circuit protection), connected through the SU11 interface module, suitable for driving analog actuators or given signals.

EB11 module: Provides 32 channels of digital input/output (24V DC) with overheat protection and manual reset function, supports multiple interface modules (such as SB10, SB60-SB71, SU11/12), and achieves signal level conversion and electrical isolation.

IT41/IT42 expansion module: Plug in on the CPU module to expand analog I/O, digital I/O, and encoder interfaces. IT41 is particularly suitable for motion control, supporting 4 incremental encoders (15V/5V) and 4 analog inputs/outputs; IT42 provides high-precision integral analog input (V/f conversion), suitable for high-precision measurement scenarios.

2.3 Communication Support Module

CS7 module: As the carrier of the communication module, it supports up to 3 SS4, SS5 or SS52 modules, exchanges data with the CPU through dual port RAM, and implements protocols such as DUST, USS, PROFIBUS-DP/FMS.

SS4 module: Supports DUST (Debugging and Monitoring) and USS (Driver Communication) protocols, with optional physical interfaces of RS232, 20mA current loop, or RS485 (via SS31 submodule). It is a critical interface for connecting OP2 operation panels, printers, or drivers.

SS5/SS52 module: dedicated to PROFIBUS-DP/FMS communication, SS5 can serve as a master or slave station, SS52 supports FMS client/server communication, both of which require configuration through COM software (such as COM PROFIBUS).

CSH11 module: Provides Industrial Ethernet (SINEC H1) access, integrates CP1470 communication processor, and supports parameterization and management through SINEC NML software.

2.4 Specialized Technical Modules

T400 technology module: integrates rich local I/O resources, including analog input/output, digital I/O, encoder interface, and serial communication port (RS232/485), which can be directly used for low-cost drive control or as an option board for SIMOVERT MASTERDRIVES. Its characteristics include:

2-channel incremental encoder interface (supporting HTL and RS422)

2-channel absolute encoder interface (SSI/EnDet)

2-channel serial interface (can be used for USS, Peer to Peer, or services)

Integrated Flash and DRAM, supporting independent operation or communication with the host

ITDC module: specifically designed for thyristor control of line commutation drivers (such as SITOR power units), integrating current regulators, trigger pulse generation, and monitoring functions.

Installation, Grounding, and EMC Key Guidelines

To ensure the reliable operation of the system in industrial electromagnetic environments, the manual provides detailed provisions for mechanical installation, grounding, cable laying, and shielding measures.

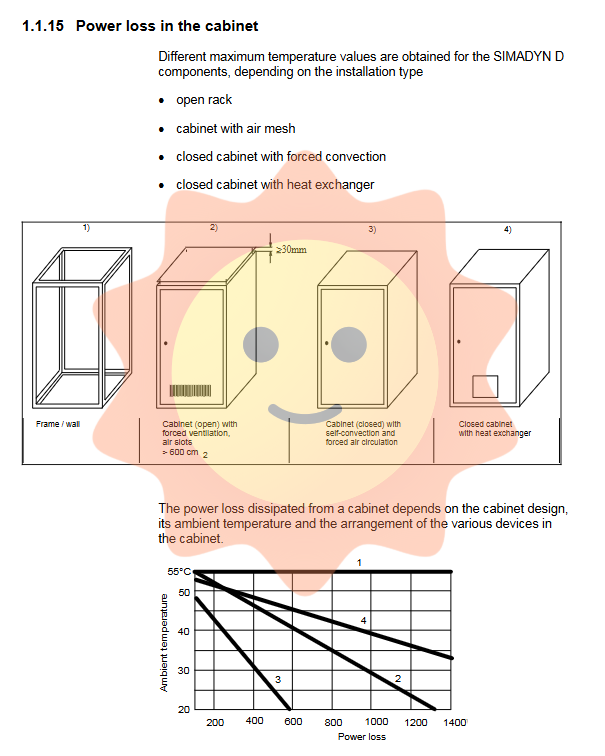

3.1 Cabinet and Installation Requirements

SIMADYN D must be installed in a metal cabinet, which should be fully enclosed and only accessible to authorized personnel.

Grounding/equipotential busbar (≥ 6mm ² copper cable) should be installed inside the cabinet, and all components (rack, power supply, external equipment) should be connected to this busbar nearby.

During module installation, screws must be tightened, and shielding cover plates must be installed on empty slots to ensure good electromagnetic sealing and heat dissipation.

3.2 Cable and Shielding Specifications

All signal cables must be shielded, with the shielding layer connected to the shielding busbar at the entrance of the cabinet and continuously shielded to the terminal module.

Analog signal cables are recommended to be grounded at one end (cabinet side), while digital and communication cable shielding layers should be grounded at both ends.

The distance between signal cables and power cables (>500V AC) should be at least 10cm, and the distance between high-voltage cables (>1kV AC) should be greater than 30cm.

Serial communication cables (such as PROFIBUS, USS) should use twisted pair shielded cables, and the connector housing must be grounded.

3.3 Power Supply and Filtering

The incoming line of the AC power supply should be equipped with a line filter (such as 250V AC/10A), installed near the entrance of the cabinet, and the grounding wire of the filter should be short and thick.

It is recommended to install filtering capacitors or filters on the 24V DC power supply to suppress conducted interference.

The rated current of the switching power supply needs to consider the starting current of SIMADYN D (up to 200% of the rated value).

3.4 ESD Protection

All modules contain components that are sensitive to static electricity, and static electricity must be released through a grounded wristband or touching grounded metal before contact.

Anti static packaging (such as metallized plastic bags, conductive foam) must be used for module storage and transportation.

When welding or measuring, tools and instruments must be grounded.

System Integration and Typical Applications

SIMADYN D, with its powerful real-time processing capabilities and flexible modular structure, is particularly suitable for the following application scenarios:

Multi motor drive system: Accurate control of DC/AC drives is achieved through ITDC or T400 modules, combined with CS12/CS22 fiber optic backplane coupling, to construct a multi rack high-speed synchronization system.

High performance motion control: utilizing PM6 CPU and IT41 expansion module to achieve multi axis linkage, position synchronization, and trajectory planning, suitable for fields such as CNC machine tools and robots.

Distributed process automation: Integrating remote I/O stations, sensors, and actuators through PROFIBUS-DP (SS5 module) or industrial Ethernet (CSH11 module) to build a workshop level control network.

Technical upgrade and transformation: The T400 module can be directly inserted into SIMOVERT MASTERDRIVES frequency converters to enhance their control functions and achieve low-cost upgrades of existing equipment.

Summary

The SIMADYN D system represents a high-end solution in the field of industrial drive and control, with its design fully considering real-time performance, reliability, and flexibility. From sturdy rack design, high-performance CPU, abundant I/O options to comprehensive communication support, this system is capable of handling the most demanding industrial environments and complex control tasks. Strict installation and EMC guidelines are not only compliance requirements, but also fundamental guarantees for the long-term stable operation of the system. For system integrators and end users, a deep understanding of their hardware architecture and technical details will help maximize the potential of the system and build efficient and reliable automation platforms.

With the development of Industry 4.0 and intelligent manufacturing, the demand for modular, networked, and real-time collaborative control systems is increasing. Although SIMADYN D is the previous generation product, its design concept and technical implementation still have significant reference value, and have laid a solid foundation for Siemens' advanced control systems based on platforms such as TDC and S7-400H in the future.

Model Supplement

1、 Subracks

SR6/SR6V (standard 6-slot rack)

Power supply: SP7 (6DD1683-0BB0)

SR12. x series (12 slot rack)

SR12.1 (24V DC, with fan): 6DD1682-0CC0

SR12.2 (24V DC, fanless): 6DD1682-0CD0

SR12.3 (115/230V AC, with fan): 6DD1682-0BC3

SR12.4 (115/230V AC, fanless): 6DD1682-0BC4

Corresponding power supply types: SP22, SP23, SP22.5, SP23.5

SR24. x series (24 slot rack)

SR24.1 (24V DC, with fan): 6DD1682-0BC0

SR24.2 (24V DC, fanless): 6DD1682-0BE0

SR24.3 (115/230V AC, with fan): 6DD1682-0CE3

SR24.4 (115/230V AC, fanless): 6DD1682-0CE4

Corresponding power supply types: SP8, SP9, SP8.5, SP9.5

SRT400 (Technical Rack): 6DD1682-0CG0

2、 Processor and Memory Module

CPU module

PM5: 6DD1600-0AJ0

PM6: 6DD1600-0AK0

Signal processor module EP3: 6DD1645-0AE0

Program memory module

MS5: 6DD1610-0AH0

MS51: 6DD1610-0AK0

MS52: 6DD1610-0AH2

Coupled memory module

MM11: 6DD1611-0AD0

MM3: 6DD1611-0AF0

MM4: 6DD1611-0AG0

3、 Input/output module

EA12 (8 analog outputs): 6DD1642-0BC0

EB11 (32 channel digital I/O): 6DD1641-0AC0

IT41 (extension module, including encoder interface): 6DD1606-3AC0

IT42 (expansion module, including high-precision analog input): 6DD1606-4AB0

ITDC (Converter Control Module): 6DD1601-0AH0

T400 (Technical Module): 6DD1606-0AD0

4、 Communication module

Communication support module

CS7: 6DD1662-0AB0

CS8: 6DD1662-0AC0

CSH11 (SINEC H1): 6DD1661-0AB1

CS12: 6DD1660-0BC0

CS13: 6DD1660-0BB0

CS14: 6DD1660-0BA0

CS22: 6DD1660-0BDD

ITSL (SIMOLINK interface): 6DD1663-0AB0

Interface module (for SS4)

SS1 (20mA): 6DD1688-1AA0

SS2 (RS232): 6DD1688-1AB0

SS31 (RS485): 6DD1688-1AC1

Communication processor module

SS4: 6DD1688-0AD0

SS5: 6DD1688-0AE0

SS52: 6DD1688-0AE2

5、 Interface module (terminal adaptation)

Universal

SB10: 6DD1681-0AE2

SB60: (mentioned in the document, but not provided with the complete model)

SB61: (Mentioned in the document, but not provided with the complete model)

SB70: (mentioned in the document, but not provided with the complete model)

SB71: (mentioned in the document, but the complete model number is not provided)

SU10, SU11, SU12, SU13: (mentioned in the document, but the complete model number is not provided)

SE13.1: 6DD1681-0BD1

SE26.1: 6DD1681-0CG1

SE60 (battery monitoring): 6DD1681-0GA0 (inquiry required)

Early/dedicated interface module (mentioned in the document, model may be outdated)

SS1 (20mA interface submodule): (see Part Four)

SS2 (V.24 connector module): (see Part Four)

6、 Cable (partially listed)

SC7 (connection interface module, 10 cores, 2m)

SC12 (connected to SU11)

SC13 (connecting 4 interface modules)

SC49, SC50, SC51, SC54 (for IT41/IT42)

SC55 (connecting 2 SU11)

SC57 (PC connection cable, 9-core, 5m)

SC62, SC64 (used to connect interface modules such as SB10)

SC17.2 (SITOR connection cable, 2m)

SC31.2 (SITOR connection cable, 10m)
