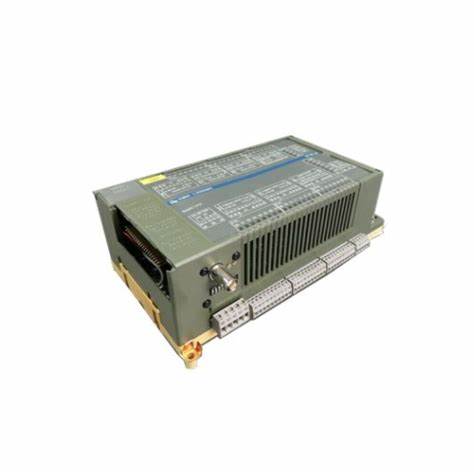

ABB SNAT609TAI 5761789-6H Industrial I/O Interface Card

Flexible Scalability: Rich interface types and modular design enable it to have good scalability. Users can easily add functional modules and connect more devices according to their actual production needs, easily achieve system upgrades and expansions, and adapt to the constantly changing needs of industrial automation development.

Easy to maintain and diagnose faults: Equipped with comprehensive self diagnostic functions, it can monitor its own working status in real time. Once a fault is detected, an alarm signal is immediately issued and detailed fault information is recorded to help maintenance personnel quickly locate and troubleshoot the problem. The concise operation interface and intuitive parameter setting method reduce the difficulty of operation and maintenance personnel, and improve equipment maintenance efficiency.

Precautions

Installation environment requirements: It should be installed in a dry, well ventilated environment without severe vibration and electromagnetic interference. Avoid installation in damp, dusty, high-temperature, or corrosive gas environments to prevent affecting the performance and service life of circuit boards. The installation location should be away from strong electromagnetic interference sources such as large motors and transformers. If unavoidable, effective shielding and grounding measures should be taken.

Precautions for power connection: When connecting the power supply, it is necessary to strictly follow the product specifications and correctly connect the appropriate power supply voltage and phase sequence. Carefully check whether the power supply circuit is firm and reliable to prevent loosening, short circuits, and other situations from occurring. It is strictly prohibited to connect or disconnect the power supply while it is live, in order to avoid electric shock accidents or damage to the circuit board.

Key points of operation and maintenance: Operators need to undergo professional training and be familiar with the operation methods and parameter settings of circuit boards. When adjusting parameters, be cautious to avoid abnormal device operation caused by incorrect settings. Regularly clean and inspect the circuit board, remove surface dust and debris, check for loose interface connections, and inspect for signs of damage to components. If any abnormalities are found, the equipment should be shut down in a timely manner for handling, and it is strictly prohibited to operate the equipment with problems.

Software upgrade instructions: If a software upgrade is required, the original configuration data should be backed up first to prevent data loss during the upgrade process. Download officially recognized upgrade software and follow the correct upgrade steps. During the upgrade process, ensure stable power supply to the equipment to avoid upgrade failure and damage to the circuit board due to power outages or other reasons.

Model Supplement

ABB 5SGY3545L0003

ABB 5SGY3545L0017

ABB 5SGY3545L0020

ABB AI880-1

ABB XDD501A101

ABB UCD224A102

ABB GCC960C102

ABB UAD206A101

ABB PPE091A101

ABB 5SHX10H6004
