GE Power Management SR489 Generator Management Relay

Fault data: Retain the last trip data and pre trip data, support waveform capture (16 cycles), and assist in root cause analysis of faults.

2. Self diagnosis and testing

Self testing: Built in self diagnostic function, triggering alarm contacts when abnormal;

Simulation mode: It can be started without external testing equipment, supports pre fault/fault setting, output relay testing, and simulated input testing, simplifying on-site debugging and training.

Physical and Environmental Characteristics

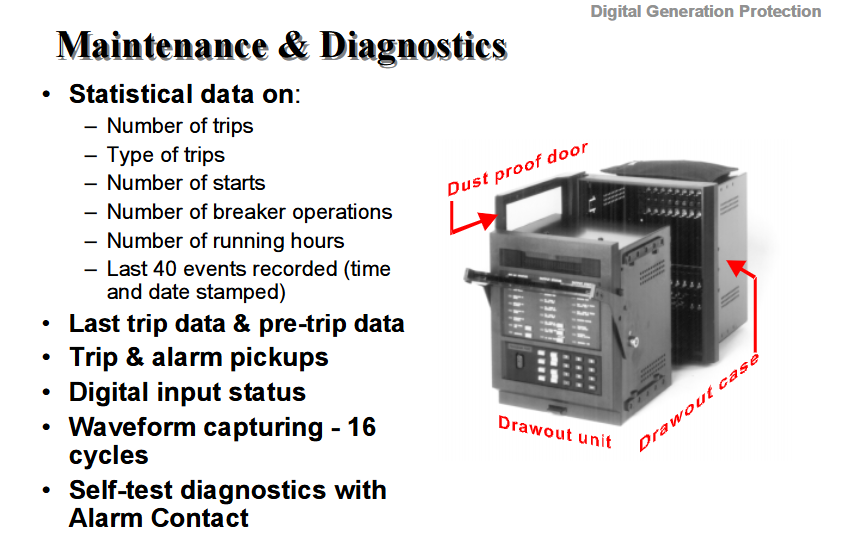

Structural design: with dust-proof door and drawout case for easy installation and maintenance;

Working environment: The temperature and humidity range is not clearly marked, but as an industrial grade relay, it is usually suitable for -20~70 ℃ (operation) and -40~85 ℃ (storage), with humidity ≤ 95% and no condensation (industry standard, subject to official final specifications);

Certification and compatibility: Specific certifications (such as UL, IEC) are not directly mentioned, but they are suitable for general scenarios of small and medium-sized generators and can be compatible with mainstream control systems through Modbus RTU communication.

Order selection parameters (core configuration)

Current input (CT) P1 1A CT input

P5 5A CT input

Control power supply LO 20-60Vdc/20-48Vac

HI 90-300Vdc / 70-265Vac

Analog output A1 0-1mA Analog output

A2 4-20mA analog output
