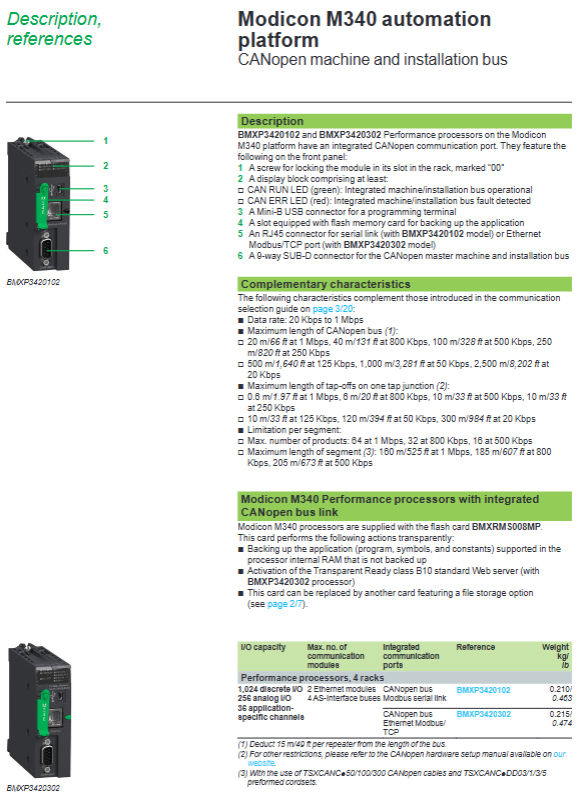

Schneider Modicon M340 Strict Environment Deployment and Troubleshooting Guide

5.2 Regular Maintenance Checklist

To ensure the long-term reliability of the M340 system, it is recommended to implement the following plan:

Periodic tasks

Check the status of all LEDs monthly, check the system diagnostic buffer in Control Expert, and clean the cabinet filter

Backup applications to SD cards and external storage every quarter, and test backup CPUs (if redundant)

Tighten all terminal screws (especially power and grounding) every six months, and measure the temperature inside the cabinet (should be below 55 ℃)

Check the X-bus cable and terminal resistance contact every year, replace the battery (some models require motherboard battery replacement), and reapply the connection points with BMXGEL0025 (in harsh environments)

Replace the power module and SD card every 5 years (flash memory has write life)

5.3 Using RTU module to achieve remote monitoring

For distributed stations such as oil and gas pipelines and water treatment, BMXNOR0200H RTU module (supporting IEC 60870-5-101/104 and DNP3 serial/IP protocol) can be used. This module also has an H version (-25~70 ℃) and is equipped with a built-in web server and data recording function (CSV files stored on SD card).

Common RTU communication faults:

Dial up connection failure: Check PPP configuration and AT command set of external modem (such as GPRS). M340 supports serial modem and Ethernet PPPoE.

Event loss: The BMXNOR0200H event buffer has a maximum of 100000 entries, which will be overwritten if SCADA does not read for a long time. Appropriate event generation masks and reporting cycles should be set.

Time asynchronous: The RTU module acts as an NTP client to synchronize CPU time. If the NTP server is unreachable, a GPS receiver can be used to send a time string through the serial port (a custom function block is required).
