Introduction: Why is there a need for M340 deployment guidelines for harsh environments

In harsh industrial environments such as petrochemicals, offshore platforms, sewage treatment, mines, and high-altitude substations, standard PLCs often find it difficult to operate stably for a long time. The Modicon M340, as a mid-range PAC (Programmable Automation Controller) from Schneider Electric, has become a common choice in the fields of process control and infrastructure due to its compact size, flexible X80 I/O system, and powerful communication capabilities. However, on-site engineers often encounter issues such as power module failure under high temperature and humidity, communication interruption, unstable X-bus expansion, and compatibility problems when replacing old systems. This article is based on official technical information from Schneider and combined with frontline operation and maintenance experience. It systematically reviews the hardware selection, installation protection, common fault diagnosis, and troubleshooting methods of M340 in harsh environments, and provides a standardized process for migrating from old platforms such as Modicon Premium/Quantum to M340.

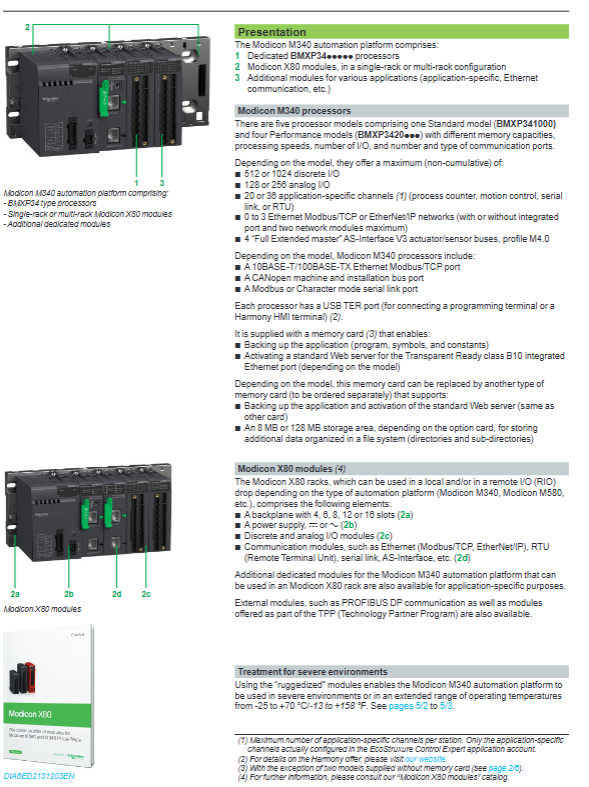

Chapter 1: Overview of M340 Hardware Platform and Selection of Strict Environment

1.1 Processor Family and Key Parameters

The M340 offers two processor levels: the standard BMXP341000 (2 racks, 512 DI/128 AI, 2MB memory) and the performance BMXP3420xx (4 racks, 1024 DI/256 AI, 4MB memory). Performance based subdivision of three types of integrated communication:

BMXP342000: Only integrates Modbus serial link

BMXP3420102: Integrated Modbus serial link+CANopen master station

BMXP342020: Integrated Modbus Serial Link+Ethernet Modbus/TCP

BMXP3420302: Integrated CANopen+Ethernet Modbus/TCP

All processors are equipped with USB Mini-B programming ports and SD card slots, and come standard with BMXRMS008MP memory card (8MB). For applications that require file storage, such as recipes and historical data, it can be upgraded to BMXRMS128MPF (128MB).

1.2 Strict Environment Version (suffix H)

The working temperature of standard M340 is 0-60 ℃, with a pollution level of 2, and is not suitable for scenarios with conductive dust, corrosive gases, or severe temperature changes. Schneider offers reinforced versions with the suffix H (such as BMXP341000H, BMXNOE0100H), which feature:

Circuit board conformal coating (AVR 80): resistant to condensation, conductive dust, and chemical corrosion

Extended working temperature: -25 ℃~+70 ℃ (single rack configuration can even start briefly at -40 ℃)

Corrosion resistant gas: Complies with IEC/EN 60721-3-3 grades 3C1~3C4, and can withstand H ₂ S (9900 ppb), SO ₂ (4800 ppb), Cl ₂ (200 ppb), etc

Salt spray resistance: tested according to IEC 60068-2-52 Kb, severity level 2 (3 24-hour cycles, 5% NaCl)

Selection suggestion: For M340 used in outdoor cabinets, chemical plants, coastal areas, or ships, choose H-suffix CPUs, power supplies, I/O, and communication modules. At the same time, all electrical connection points must be coated with BMXGEL0025 protective gel to prevent corrosive gas from entering the terminal.

1.3 Rack and power module

M340 uses Modicon X80 rack (BMXBP • 00), with optional slots of 4, 6, 8, 12, and 16. When expanding multiple racks, BMXXBE1000 expansion modules need to be installed in the XBE slot for each additional rack. The racks are connected through X-bus cables (BMXXBC ••• K), with a total bus length of ≤ 30m, and TSXTLEYEX terminal resistors must be installed at both ends.

The power module needs to be selected based on the total load current:

BMXCPS2000 (24V DC, 20W) is suitable for small configurations

BMXCPS3020 (24V DC, 36W) commonly used

BMXCPS3540T (100-240V AC, 40W) is suitable for AC power supply and wide voltage input applications

In harsh environments, the corresponding H model (such as BMXCPS3020H) should be selected

Fault prevention: The electrolytic capacitor inside the M340 power module has a shortened lifespan at high temperatures. When the ambient temperature exceeds 50 ℃, it is recommended to control the load rate of the power module below 80% and replace the power supply every 5 years.

Chapter 2: Diagnosis and Troubleshooting of Common Hardware Malfunctions

2.1 Interpretation of LED Status Code

The M340 processor and module front panel provide status LEDs, which are the first-hand diagnostic basis on site.

Troubleshooting of LED color meanings

RUN green normal operation (cycle execution) flashing indicates stop or start in progress

ERR red processor or system failure 1Hz flashing: missing or damaged application program; Always on: Hardware malfunction, CPU needs to be replaced

I/O red I/O module detected a fault. Check if the configuration matches the actual module and verify the X-bus connection

SER COM yellow Modbus serial port is constantly on and inactive: communication configuration error or wiring fault

CAN RUN green CANopen bus running off: bus not configured or master station not started

CAN ERR red CANopen fault flashing: At least one slave station communication is interrupted; Always on: Bus short circuit or missing terminal resistance
