Siemens 840C 611D Module Replacement Guide

Key Maintenance of Siemens SINUMERIK 840C System: Practical Guide for Replacement of 611D Digital Drive Module and Adjustment of Axis Parameters

In the operation and maintenance of automated production lines, especially high-end CNC machine tools, the replacement of core controllers and drive system components is a high-frequency and high-risk technical task. When the SIMODRIVE 611D digital drive module used in conjunction with the SINUMERIK 840C CNC system needs to be replaced due to aging, malfunction, or performance upgrade, simply physically replacing the hardware is far from enough. The real challenge lies in how to correctly reproduce the original configuration on the new hardware, ensure precise response of the motor and shaft, and restore the original machining accuracy of the system.

This article is based on the standard installation and debugging logic of the SINUMERIK 840C system, providing a complete process for replacing 611D driver modules and readjusting axis parameters. This process is applicable to the feed axis (FDD) and spindle (MSD) modules, aiming to help on-site engineers avoid common errors and shorten downtime.

The 'golden rule' before replacement: data backup and status confirmation

Before touching any hardware, the following irreversible steps must be completed. This is the cornerstone of all professional maintenance work.

System wide data backup: Use the Valitek Streamer or PC link function on the control unit MMC to perform a complete backup of the entire hard drive data. Select the ACKUP menu in the Diagnosis/Start up area of 840C and execute "Backup system" and "Backup user data". This ensures that in the event of operational errors, the system can be restored to its current state without damage.

Key parameter file copying: In addition to overall backup, it is necessary to record or print the following key data through the Machine Data Dialogue Box (MDD). They will be directly used during reconfiguration:

Drive configuration: Record the logical drive numbers (Drive No.), module models (such as dual axis FDD module 6SN112x-1AA00-0GA0), and their physical slots on the rack for all 611D modules.

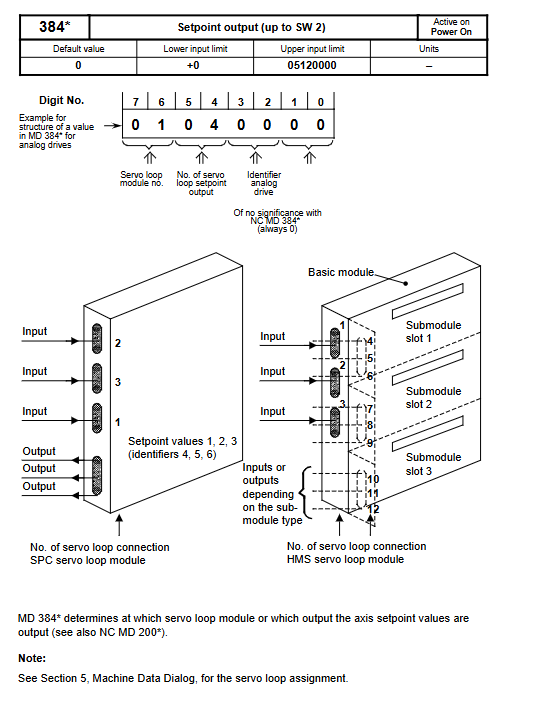

Axis/Spindle NC Data: Record MD 3840 (axis set point output), MD 2000 (first measurement system connection), MD 4600 (spindle set point output), MD 4000 (spindle measurement system connection), etc. These data define the logical channel mapping relationship between the drive and NCK.

Drive motor data: Record the drive MD 1102 (motor code number) or all manually entered motor parameters (rated current, torque constant, inductance, etc.).

Hardware status diagnosis: Before power failure, record the final status of the faulty module through the driver service display interface in the diagnostic area. Checking information such as "Drive status" and "CRC error" can help determine whether it is a module failure or a communication/external circuit issue.

Hardware Replacement and Basic Configuration: Rebuilding Communication Links

After completing the data backup, follow the standard power-off and disassembly procedures. The model and firmware version of the new module should be consistent with the original module. If they are not consistent, additional attention should be paid to software compatibility. After the hardware installation is completed, software level refactoring begins.

Configure a new driver module:

Start 840C and enter the diagnostic/startup/machine data/drive MD area.

In the "Driver Configuration" screen, you will see a list representing rack slots. Find the corresponding slot for the hardware you just replaced.

Using the 'Select Module' soft key, select the specific order number of your newly installed 611D module from the drop-down list (e.g. 6SN112x-1AA01-0GA0). Be sure to ensure that the selection here is completely consistent with the hardware, otherwise it may cause internal parameterization errors.

After confirmation, use the 'Accept Configuration+NCK PO' soft key. This operation will update the hardware startup file, initialize the driver bus, and establish communication between NCK and the driver module.

Restore motor parameters:

After the initialization of the drive bus, there is no specific motor data for the new drive module. Enter the diagnostic/startup/machine data/drive MD/axis (FDD) or spindle (MSD) motor/power unit data menu.

If using Siemens standard motors, use the 'Select Motor' soft key to find and select the correct motor model from the list.

After selection, the system will automatically load all standard motor parameters corresponding to the model (such as MD 1103 rated current, MD 1400 rated speed, MD 1407 speed loop P gain, etc.) into the drive. This process will overwrite the online data in the current drive and is the quickest way to restore motor characteristics.

For non Siemens motors, you need to manually input equivalent circuit diagram parameters one by one based on the motor nameplate data. After input, use the 'Calculate Controller Data' soft key to have the system automatically calculate the optimized current loop and speed loop parameters.

Restore axis/spindle allocation:

Return to the NC area, check and ensure that the set point/actual value allocation data for the axis and spindle have been correctly restored from the backup. The key data such as the logical drive number of the MD 3840/FDD set point must match the "logical drive number" assigned to the axis in your drive configuration. Mismatched mapping is a common cause of axis immobility or runaway.

Axis debugging and optimization: from "active" to "precise"

After the hardware configuration and motor parameters are restored, the shaft can move, but it is far from meeting the machining requirements. The following fine tuning is the core to ensure machining accuracy.

Check control direction and position feedback:

In JOG mode, press the positive direction button and observe the actual direction of movement of the machine tool. If the direction is opposite, it can be corrected by reversing the axis parameter MD 564 * bit 1 (speed setpoint symbol) or bit 2 (actual value symbol). Do not arbitrarily modify the motor wiring.

Ensure that the direction of machine tool movement is consistent with the direction displayed on the screen coordinates. If the direction is correct but the coordinate values increase or decrease in the opposite direction, the symbols in the measurement system parameters MD 364 */368 * should be modified, or the assignment of the measurement system in MD 2000 should be adjusted.

Speed setpoint matching (Tacho compensation):

For digital drivers, this step is usually achieved through precise motor parameters. But as a verification, the axis can be moved at a maximum speed of about 10% in JOG mode.

In the diagnostic/service display area, observe the "speed setpoint [0.01%]" and "speed actual value" of the axis. In an ideal state, the two should be equal.

If not, check the settings of drive MD 1147 (speed limit) and NC MD 280 (maximum shaft speed). Ensure that the maximum speed required by NC corresponds to the speed setpoint of "100%" on the driver side.

Servo gain (Kv factor) and dynamic response optimization:

The Kv factor (NC MD 252 *) directly determines the contour accuracy. Interpolation axes (such as X-Y axes) must have exactly the same Kv factor, otherwise contour errors will occur.

Set an empirical Kv value (e.g. 1666 corresponds to 1 (m/min)/mm), and then execute a quick positioning or arc interpolation program.

Use the "positioning ring" or "speed ring" measurement function of the "servo start application" (driving servo start area) integrated in 840C, or observe the speed setpoint signal through an oscilloscope. If there is a significant overshoot in the speed given signal, it indicates that the Kv factor is too high, and the value of NC MD 252 * should be reduced until a smooth response curve is obtained.

Optimize acceleration (NC MD 276 *). This value sets the acceleration/deceleration rate of the axis. It should be set at a level that prevents the drive from reaching the current limit during acceleration and deceleration, while also meeting the machining cycle time. The "current loop" measurement function in the "Drive Servo Start" can be used to observe whether the actual current hits the top at the end of acceleration.

Reproduction of reference point return function:

This is a function that must be verified after replacing the driver. The establishment of reference points is a prerequisite for all absolute position programming and soft limit effectiveness.

Check the settings of axis parameters MD 560 * bit 6 (automatic direction recognition) and MD 564 * bit 0 (reference point direction).

In the "reference point approximation" mode, manually perform the zeroing operation. Observe the axis movement process: whether it moves rapidly at MD 296 (approaching speed), whether it drops to MD 284 (crawling speed) after encountering the deceleration block, and whether it finally stops at the accurate physical position and triggers the interface signal of "reference point reached".

If the physical stop position does not match the expected value, the parameter MD 240 * (reference point offset value) can be adjusted.

Complex Function Verification: Ensure Complete System Recovery

Modern machine tools heavily rely on advanced functions, and the parameters of these functions are often stored in NCKs rather than drives. However, the replacement of drives may affect their actual performance and must be verified.

Verification of spindle positioning (M19):

If the spindle is involved in positioning or C-axis function, the positioning accuracy of the spindle may be offset after replacing the MSD module.

Execute the M19 instruction. Observe whether the spindle can quickly and accurately stop at the specified angle. The jitter or slowness during the positioning process may be due to gain issues in the position loop.

Check the spindle MD 435 * -442 * (Kv factor during positioning) and MD 478 * -485 * (acceleration and deceleration time constant during positioning). These parameters need to be matched with the dynamic characteristics of the new drive. If there is a fixed angle deviation in the positioning, the parameter MD 459 * (zero mark offset) can be adjusted.

Gearbox functional verification:

If the machine tool uses the "Electronic Gearbox" (ELG) function for synchronization or interpolation, the synchronization accuracy must be retested after replacing the relevant drive.

Under a simple G401/G402 programming, observe the position of the driving shaft and the driven shaft. Evaluate the synchronization quality through the "synchronization error" or "roundness test" function in the service display area.

If the synchronization error is large, it is necessary to re optimize the compensation controller parameters of the driven shaft (such as MD 1420 * P component, MD 1424 * I component), or adjust the "time constant of the parallel model" (MD 1432 *). This time constant T should be set as the equivalent time constant of the driven shaft position loop (T=1/Kf_factor).

Quadrant Error Compensation (QEC) relearning:

After replacing the feed axis drive, the original quadrant error compensation value may become invalid due to possible changes in friction characteristics.

If "neural quadrant error compensation" is used, the "learning phase" should be initiated in the "drive servo start" application. Let the axis run automatically according to the test signal, and the neural network will automatically learn the optimal compensation characteristics within a few cycles.

After completing the learning, it is necessary to save the learned data to the user file through the "file function" and update it to the boot file to prevent data loss after power failure.

Troubleshooting: Common Problems and Countermeasures

During the debugging process, you may encounter some typical alarms and issues.

*Alarm 156 "Speed Setpoint Alarm Limit Triggered" * *: This alarm typically indicates that the speed command calculated by the NC exceeds the upper limit that the drive can handle. Common reasons: The speed limit of the new motor after replacement (drive MD 1147) is set too low, or the maximum shaft speed in NC (NC MD 280 *) is set too high.

*Alarm 116 "contour monitoring" * *: This is one of the most challenging issues. It indicates that the actual position deviates from the position calculated by NC theory by more than the tolerance (MD 332 *). The reasons are complex and may include: high servo gain (Kv) causing system instability, improper speed loop optimization, mechanical lag, or interference with encoder feedback signals. The solution is to first observe whether the "following error" is stable at a constant speed through the service display. If it shakes, it is mostly due to electrical interference or speed loop problems; If the acceleration/stop exceeds the tolerance, it is mostly due to Kv or acceleration overshoot.

High noise or vibration during shaft operation: This is usually related to the filter settings of the speed loop or current loop. The new driver may need to readjust the current setpoint filter (driver MD 1200-1221) or speed setpoint filter (driver MD 1500-1521). You can enable the "Spectrum Analysis" function in the "Drive Servo Start" to analyze the spectrum of the actual speed value, identify the resonance frequency, and then set a suitable band stop filter in the drive to suppress this frequency.

Communication interruption between PLC and NC: During the replacement process of the drive module, if misoperation or module failure affects the bus, it may cause the PLC to stop. Check the LED status on the PLC CPU. If the PLC is in STOP state, the "USTACK" detailed error code can be read through the "PLC Diagnosis" function in the diagnostic area. If the error code points to bus access timeout, check the driver bus cable and terminal resistance, and ensure that there is no damage in the bus connector.
