In modern industrial automation, fixed operation panels have been widely used in various types of equipment, but many scenarios require operators to monitor and intervene near the equipment or during the movement of the production line. Exor's ePALM10 handheld HMI was born for this purpose. It combines the powerful features of the UniOP family with the portability of handheld devices, equipped with a graphic display screen, multifunctional keyboard, emergency stop button, enable switch, and multiple communication options, making it an ideal mobile terminal for factory workshops, large machinery, assembly lines, and other occasions. This article is based on the official product manual and provides a comprehensive analysis of the technical features, operating instructions, connection methods, and attachments of ePALM10.

Product Overview and Core Highlights

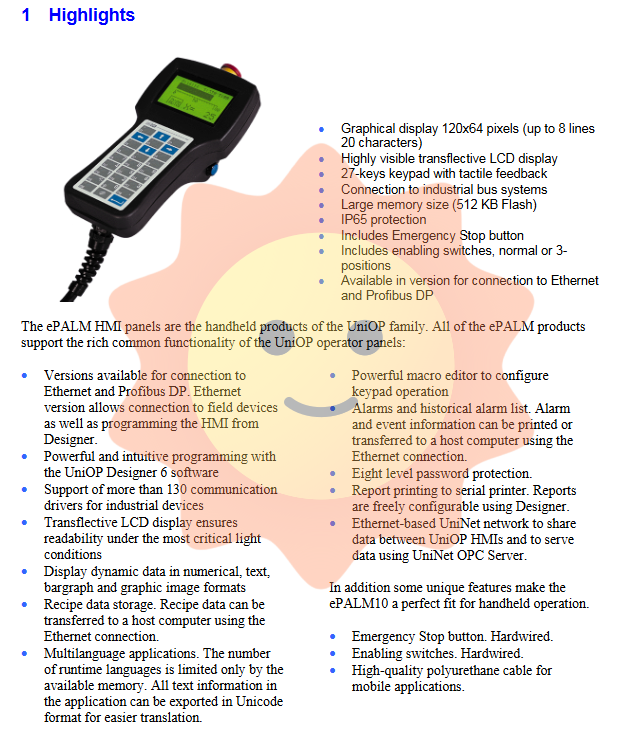

EPALM10 is a handheld HMI with a sturdy polyamide shell, featuring excellent impact resistance and environmental adaptability, designed specifically for harsh conditions in industrial sites. Its core highlights include:

High visibility display screen: 120 × 64 pixel transparent monochrome LCD, which can display content clearly even under strong light, supporting up to 8 lines x 20 characters of text.

Rich keys: 27 key keyboard with tactile feedback for comfortable operation.

Industrial bus connection: Ethernet and Profibus DP versions are optional to adapt to different network environments.

Safety function: Hardware emergency stop button (hard wired), enable switch (2 or 3 positions), meeting safety control requirements.

Large storage: 512 KB flash user memory, supporting recipe, alarm, and event recording.

IP65 protection: The front panel is dustproof and waterproof, suitable for harsh environments.

Software compatibility: Programming with Designer 6, supporting over 130 communication drivers, multiple languages, macro editing, and more.

Detailed explanation of technical specifications

2.1 Display and Operation

Display screen type: Translucent monochrome LCD, resolution of 120 × 64 pixels, effective display area of 66 × 33 mm, LED backlight (adjustable brightness).

Contrast: Software adjustable.

Button: 9 function keys, 18 system keys, a total of 27 keys, with tactile feedback.

LED indicator lights: 20 user programmable LEDs, 5 system LEDs (used to indicate power, communication, faults, alarms, etc.).

2.2 Memory and Data

User memory: 512 KB flash memory, used to store applications, fonts, and images.

Recipe memory: 16 KB, supports storage and transmission of recipe data.

Alarm/Event: Up to 1024 alarms, 256 historical event lists.

Real time clock: Hardware RTC, backed up by CR2430 lithium battery. Replacing the battery will result in the loss of retained data.

Battery: 3V 270mAh lithium manganese battery, user replaceable, model CR2430.

2.3 Electrical and Environmental

Power supply voltage: 18-30 VDC, typical current 300 mA @ 24V.

Fuse: Automatic overcurrent protection, no external insurance required.

Working temperature: 0~50 ℃.

Storage temperature: -20~+70 ℃ (compliant with EN 60068-2-14).

Humidity: 5-85% RH (non condensing, compliant with EN 60068-2-30).

Vibration/shock: 10~57 Hz 0.075 mm peak, 57~150 Hz 1G; Compliant with EN 60068-2-6 and EN 60068-2-27.

Protection level: IP65 (front panel).

Electromagnetic compatibility: compliant with EN 61000-6-4 (radiation) and EN 61000-6-2 (anti-interference); ESD: 8kV air/4kV contact; Fast transient: 2kV power supply/1kV signal line.

2.4 Mechanical dimensions

External dimensions: see Figure 1, A=116 mm，B=86 mm，C=102 mm，D=239 mm。

Cable diameter: minimum 7 mm, maximum 11 mm.

Weight: Approximately 0.5 kg (excluding cables).

Model and Selection

EPALM10 is divided into multiple models based on communication interface and enable switch types, as shown in the table below:

Model Cable Length Communication Interface Enable Switch Type Other

EPALM10-0061 5m serial (full function) with two independent 2-digit (NO) ports including PC/Printer, PLC, AUX

EPALM10-0062 10m Serial (Full Function) Two Independent 2-Bit (NO) Same as above

EPALM10-3P61 5m Serial (Full Function) with 3 bits as above

EPALM10-3P62 10m Serial (Full Function) with 3 bits as above

EPALM10-0066 5m Ethernet with a 3-bit SCM11 module, excluding PLC/AUX

EPALM10-0068 10m Ethernet with 3 bits as above

EPALM10-0067 10m Profibus DP with a 3-bit TCM08 module, excluding PLC/AUX

EPALM10-0069 5m Profibus DP with 3 digits as above

All models come with a hard wired emergency stop button (two NC contacts).

Operation Guide

4.1 Enable switch

The enable switch is an important safety device for handheld HMI, and ePALM10 offers two configurations:

Two independent 2-position switches: Both switches (NO contacts) must be pressed simultaneously to directly connect to the controller.

A 3-digit switch with three positions:

Release (not pressed): Contact disconnected, not enabled.

Press (middle position): The contact is closed, enabling.

Fully press (press to the bottom): the contact opens, emergency stop (panic).

This switch provides two independent NO contacts that are directly connected to the controller.
